Product Description

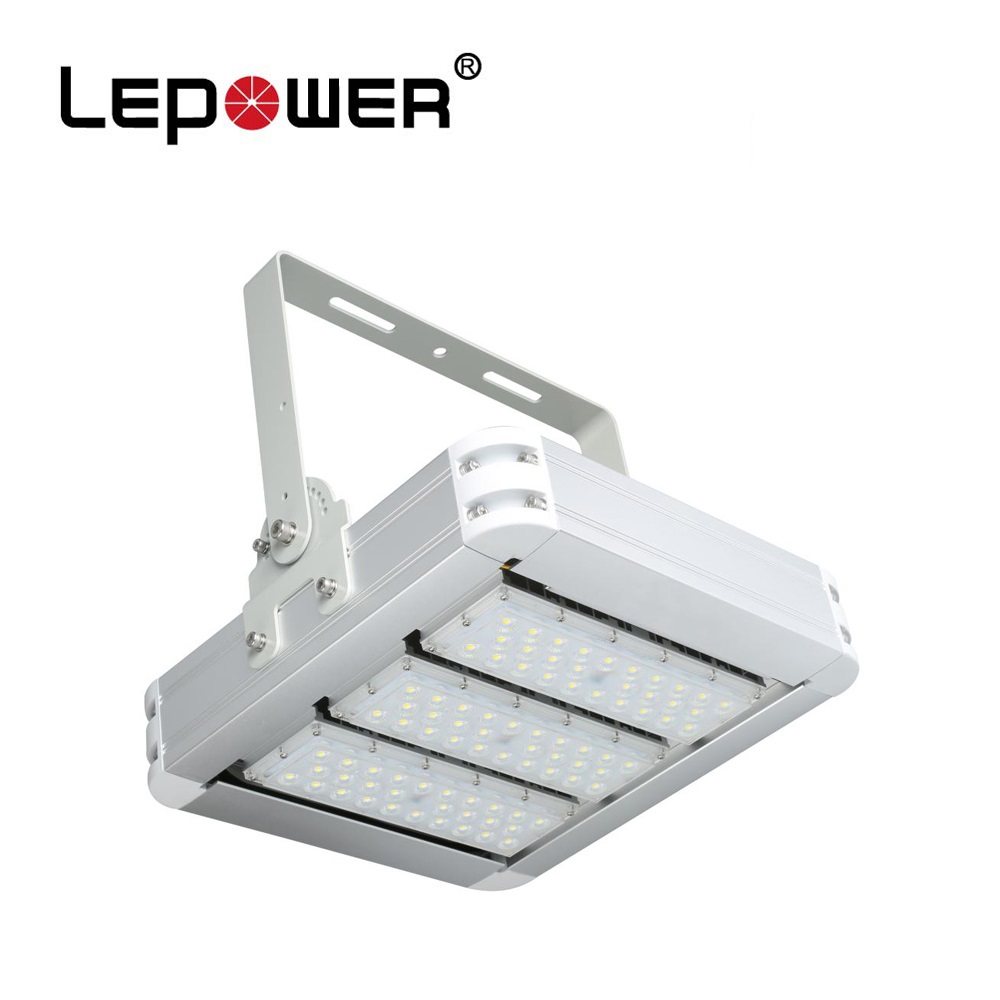

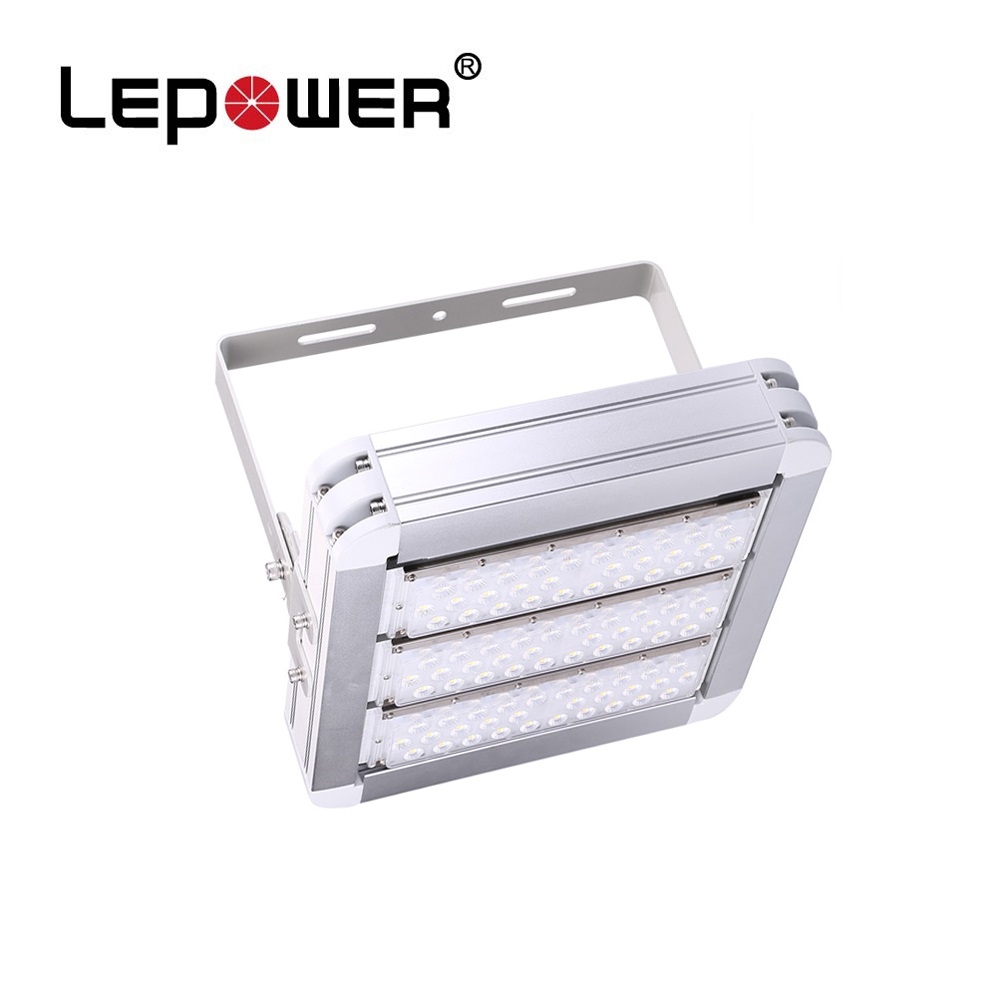

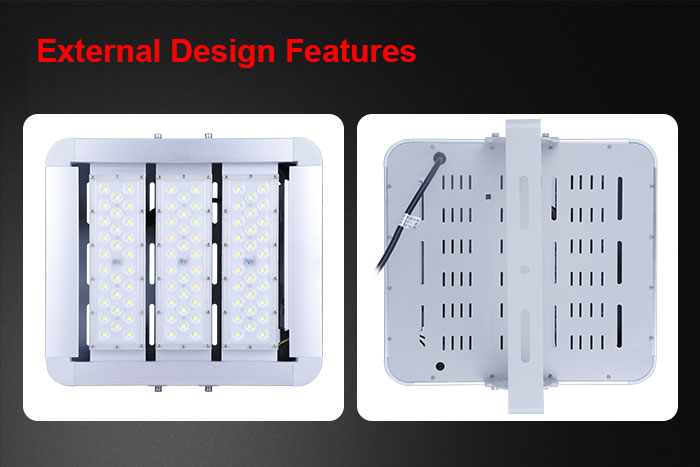

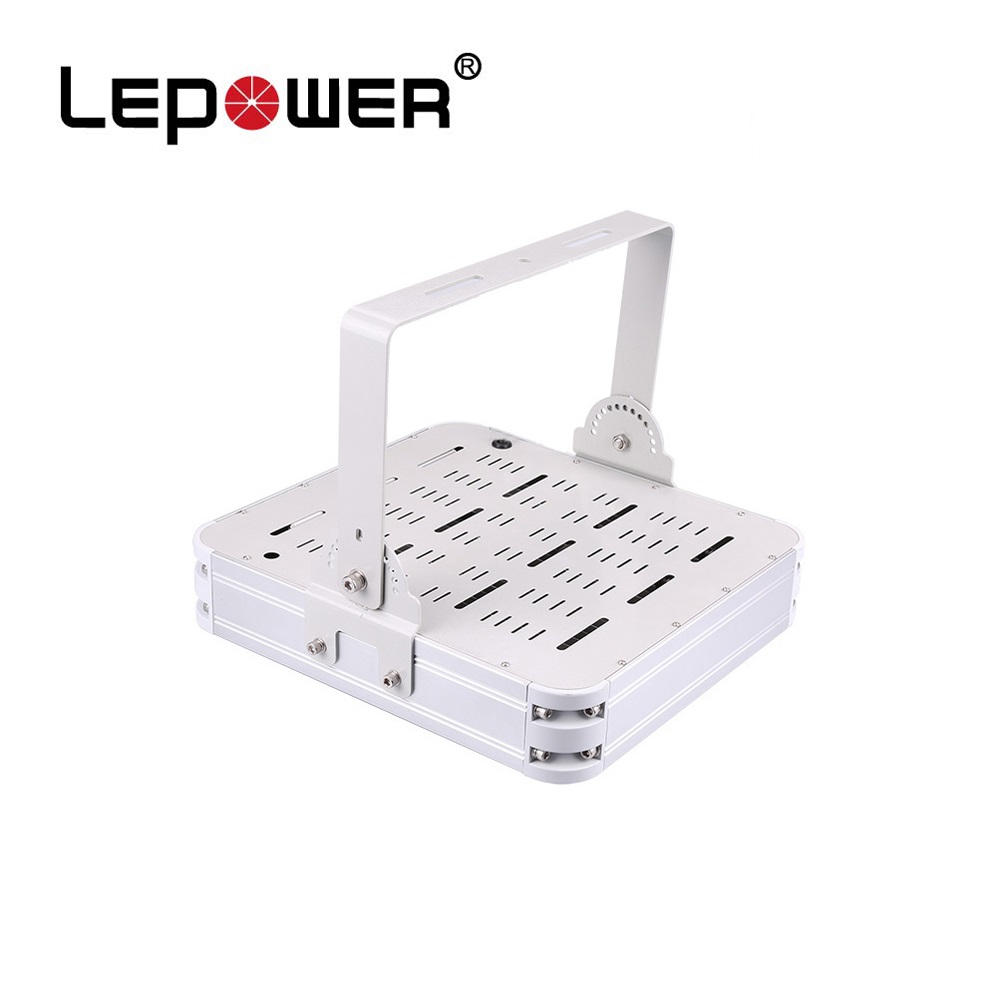

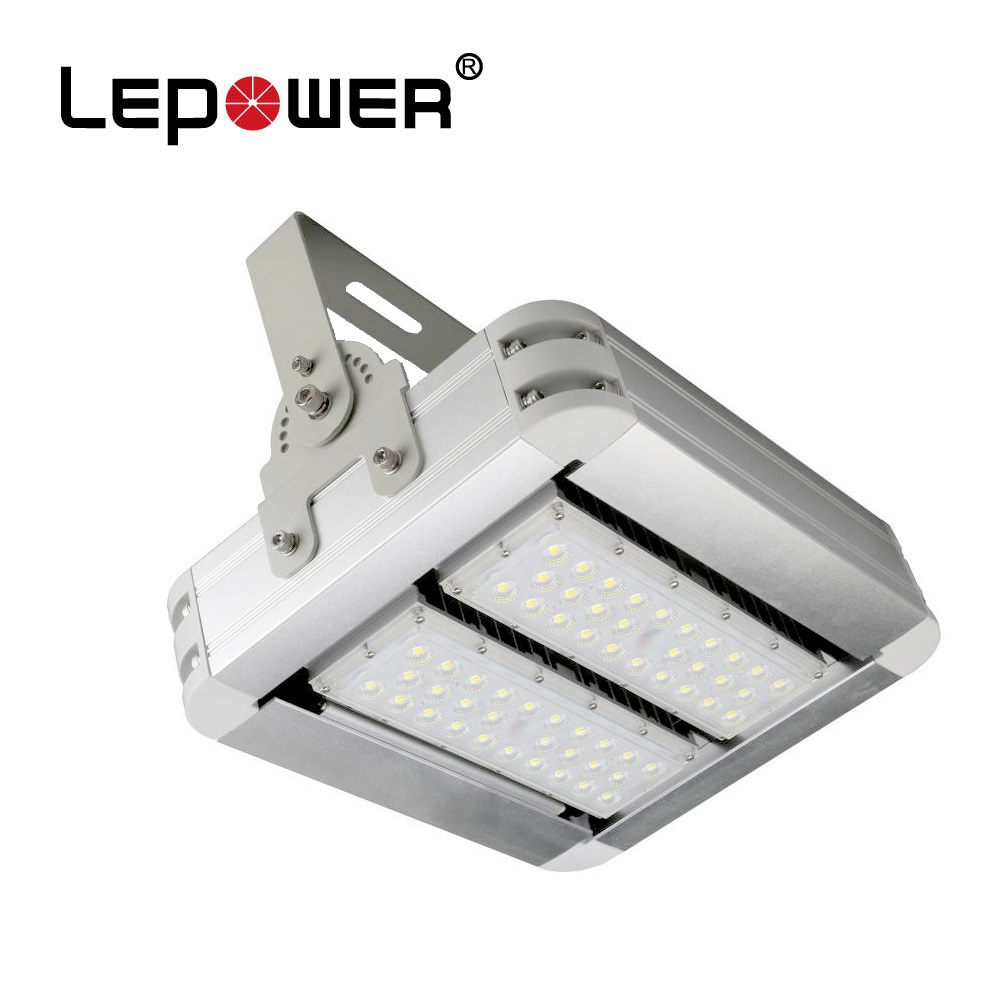

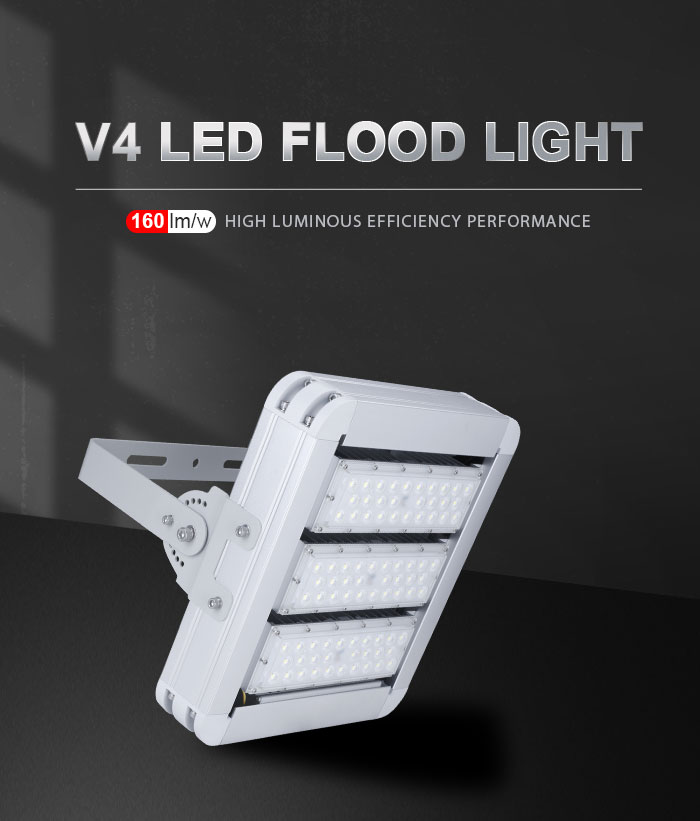

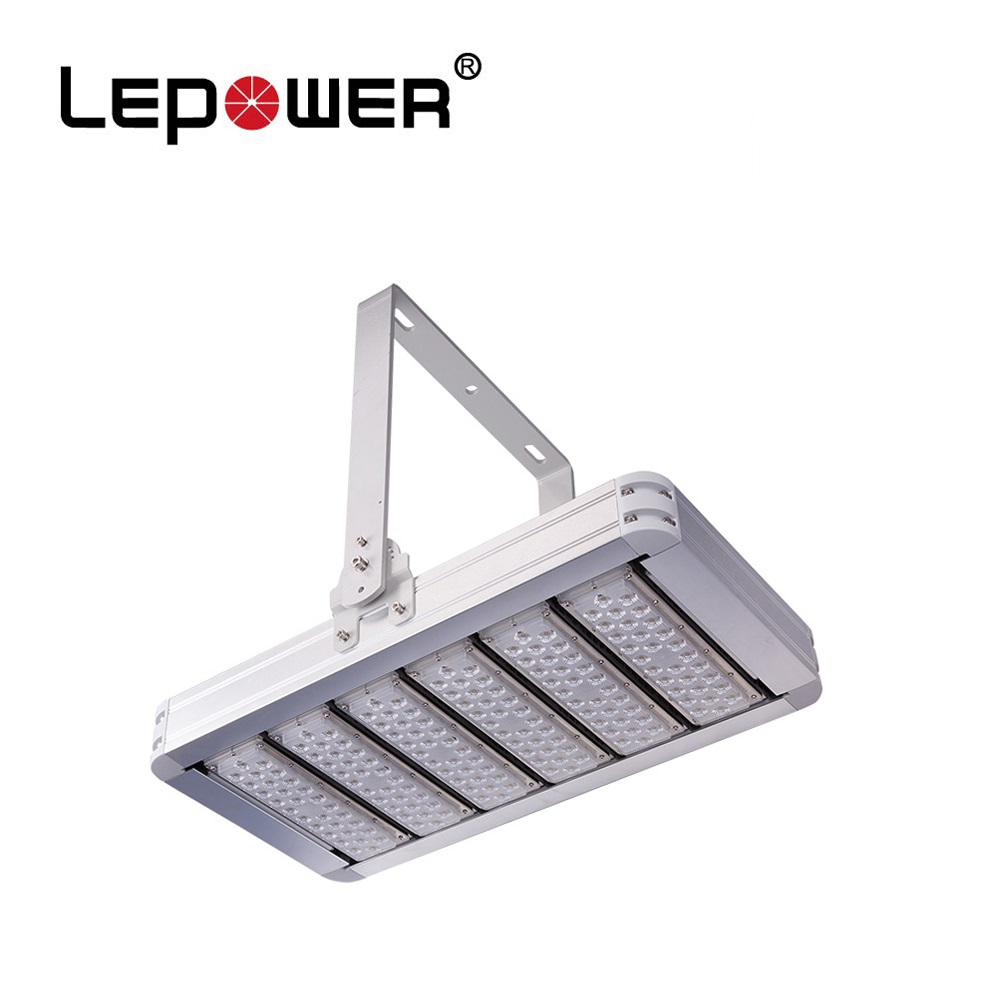

160lm/w LED Flood Light / LED High Bay Light (100W, 200W, 300W, 500W)

Detailed display of the high-performance LED flood light and LED high bay light series, ranging from 100W to 1200W.

160lm/w led high bay IP66 grade led gas station canopy lights CE ROHS certified warehouse modular 100 watt flood lighting
160lm/w led high bay IP66 grade led gas station canopy lights CE ROHS certified warehouse modular 100 watt flood lighting

Technical Specifications

Parameter Nominal Value
Model LY-HB0402
Power 100W
CCT 3000K / 4000K / 5000K / 6000K
Beam Angle 25°, 40°, 60°, 90°, 145x100°, 150°

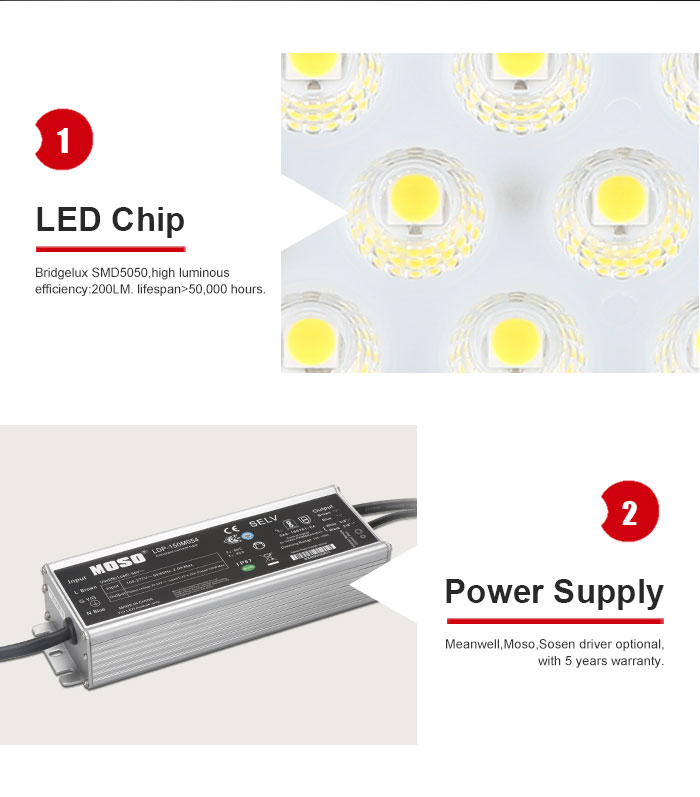

Chip Brand Bridgelux 5050
LEDs Qty 56pcs
CRI >70
Efficiency 160 Lm/W
Lumen Output >16000lm
IP Rate IP66
Working Voltage 90-305V
Working Temperature -40℃ ~ 50℃, 20% ~ 90% RH
Storage Temperature -40℃ ~ 85℃, 10% ~ 90% RH
Power Efficiency 93%
PF (Power Factor) >0.98
Lifespan 50,000 Hours
Housing Material Aluminum Alloy
Input Surge Protection 6KV L-L, 10KV L-E
Light Size 282.4 * 340 * 144.2mm ±5mm
Packing Size 360 * 410 * 225mm ±5mm
Light N.W. 4.9kg ±0.1kg
160lm/w led high bay IP66 grade led gas station canopy lights CE ROHS certified warehouse modular 100 watt flood lighting
160lm/w led high bay IP66 grade led gas station canopy lights CE ROHS certified warehouse modular 100 watt flood lighting
160lm/w led high bay IP66 grade led gas station canopy lights CE ROHS certified warehouse modular 100 watt flood lighting

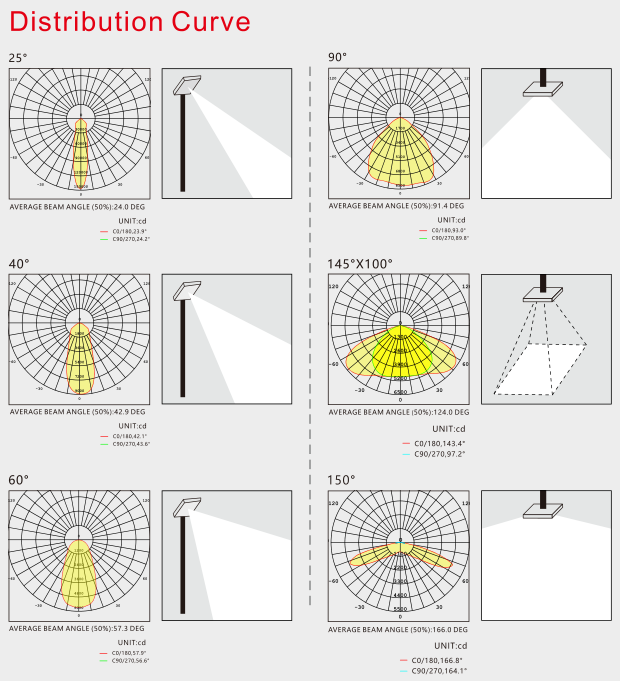

Beam Angle Configurations

Multiple optical angles are available to accommodate different lighting distribution designs and ceiling heights.

160lm/w led high bay IP66 grade led gas station canopy lights CE ROHS certified warehouse modular 100 watt flood lighting

Why Our Complete Light Reaches Over 160lm/W

  • Adoption of exclusive light source and ZAG Lens: Luminous efficiency is increased by 8% with a light transmittance rate up to 98%.
  • LED chip performance reaches up to 230lm/W.
  • Highly durable integrated heat sink, maintaining junction temperature rise under 10°C.
  • Multi-chip packaged LEDs offer high lumens, stable performance, low lumen depreciation, and no dead lights.

Lumen Configurations & Test Data (Up to 1200W Max)

100W>16000 lm
150W>24000 lm
200W>32000 lm
300W>50000 lm
400W>60000 lm
500W>78000 lm

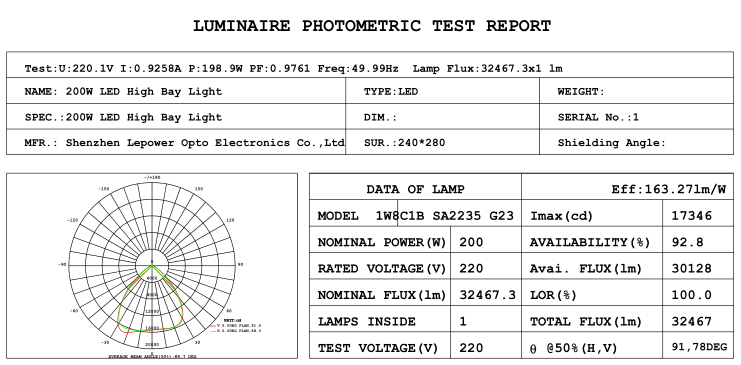

160lm/w led high bay test report

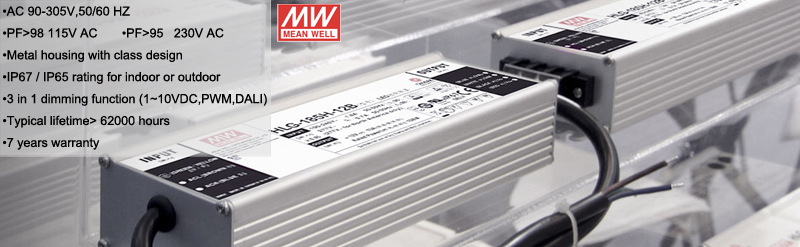

High Efficiency LED Driver with 7 Years Warranty

high efficiency led driver 7 years warranty

Manufacturing & Quality Verification

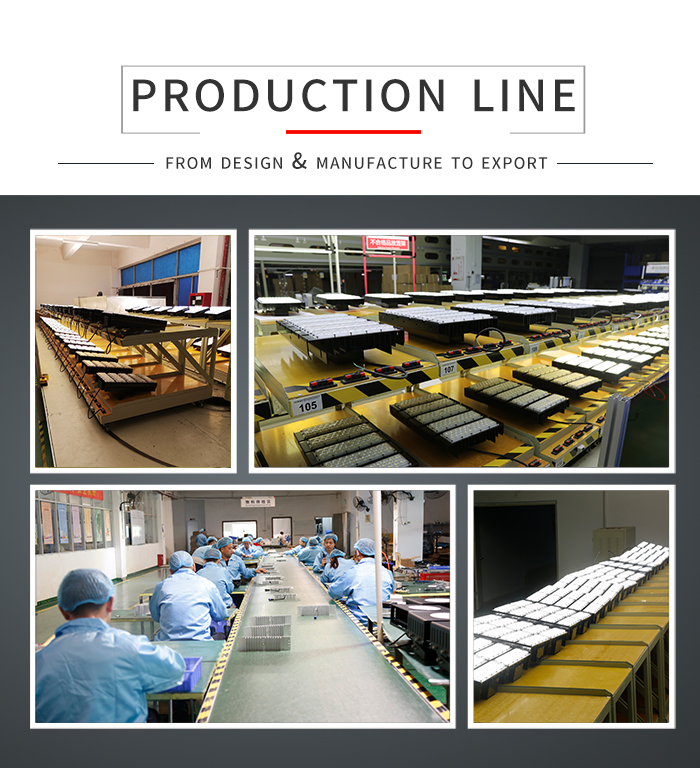

Production line for outdoor LED flood lights, street lights, and LED modular assemblies.

production line of outdoor led flood light

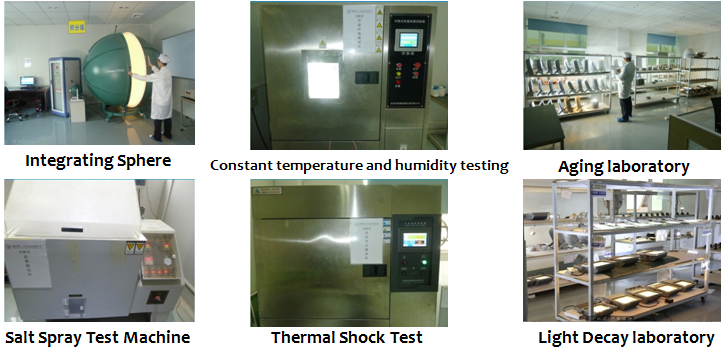

Testing machinery used for testing parameters on LED lights and modular systems.

test machines of outdoor led flood light
test machines of outdoor led flood light
test machines of outdoor led flood light
test machines of outdoor led flood light
Trading Conditions
  • Payment: 30% deposit by T/T or Western Union; 70% before delivery.
  • Delivery Time: 10-15 days for 50pcs; 15-25 days for 500pcs.
  • Sample Time: 5 days.
  • Shipping Terms: FOB Shenzhen.
  • Discounts: Determined by final order quantities.
Quality Control
  • Material & color temperature verified by sample strictly prior to order confirmation.
  • Continuous tracking across all development and production phases.
  • Quality testing and cleaning completed for every LED fixture before packing.
  • Accepts inspections by client QC teams or appointed third parties.
Warranty & Service
  • 3/5 years warranty duration.
  • Free replacements or rework for verified malfunctions under normal operation.
  • Paid maintenance services offered for connection errors or installation faults.
  • Certification standard: CE/RoHS/CB.

After-Sales Support

Dedicated Support Services: 24-hour service availability with continuous assistance support.

Exchanges or replacements of equivalent units are provided upon receipt of verified problematic products.

Frequently Asked Questions

Q1Can we make our own label on the sample lights?
Yes, we support custom labeling based on your requirements, and we offer complete OEM & ODM manufacturing options.
Q2Our project is on the seaside. Can your lights withstand sea water corrosion?
Yes. The metal components are highly corrosion resistant. Additionally, the electrostatic spraying and electrophoresis surface treatment processes effectively protect the housing from salt water corrosion.
Q3Is it possible to order a single sample to test quality first?
Yes, absolutely. Our minimum order quantity (MOQ) is only 1 piece to facilitate sample evaluation and long-term cooperation.

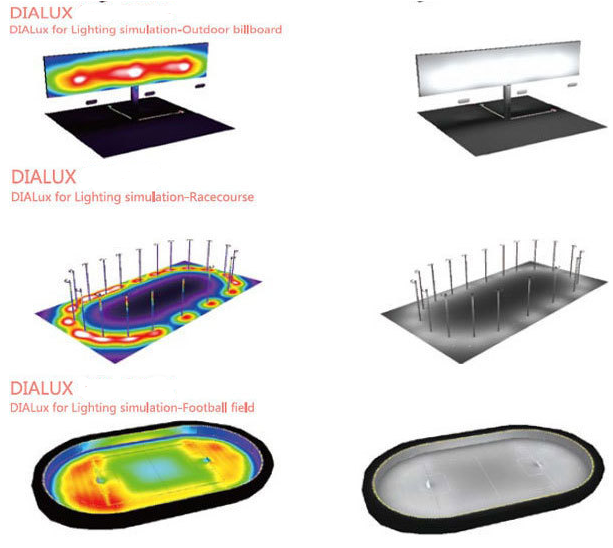

Q4Can you assist us with lighting design for a football stadium project?
Yes. Our engineering teams can configure and supply optimal design layouts for sports arenas. We can also supply standard IES files if you prepare the lighting designs independently.
Q5What information is needed to get recommendations for a workshop or warehouse?
Please provide the following details:
  • 1. The dimensions/area of the workshop or warehouse.
  • 2. The designed installation height of the fixtures.
  • 3. The target illumination requirements.
Q6What certifications do these industrial LED lighting fixtures hold?
Our modular LED high bay and flood light fixtures are fully certified according to CE, RoHS, and CB standards.
