CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
1 / 5
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light

CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview - Basic Info
Model NO.
WS-UFO-HL200W-G
Power
200W
Usage
Gymnasium, Exhibition, Warehouse, Shopping Mall, Factory
Lifespan
≥50000H
IP Rating
IP65
Certification
CE, EMC, LVD, RoHS
Beam Angle
60/90/120°
LED Chips
San'an or Epistar etc
Finished
Black / Customized: White
Power Switchable
200W-160W-120W Switchable
CCT Switchable
4-5-6K or 3-4-6K Switchable
Lumen Options
150/170/190 Lm/W
Input Voltage
220-240VAC or 100-277VAC 50/60Hz
Dim
Non-Dim, or 1-10V Dim
Driver
Lifud or Phi-Lip-S for Options
Available Function
Sensor (If Needed)
Warranty
5 Years
Operating Temp
-20~+40 ℃
Storage Temp
-40~+80 ℃
Thd
≤ 15 @Full Load
PF
≥0.9
Package
Export Neutral Carton
Anti-Surge Strike
4kv
Transport Package
1PCS/Carton
Specification
D364MM
Origin
China
HS Code
9405429000
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
39.00cm * 39.00cm * 16.00cm
Package Gross Weight
3.800kg
Product Description

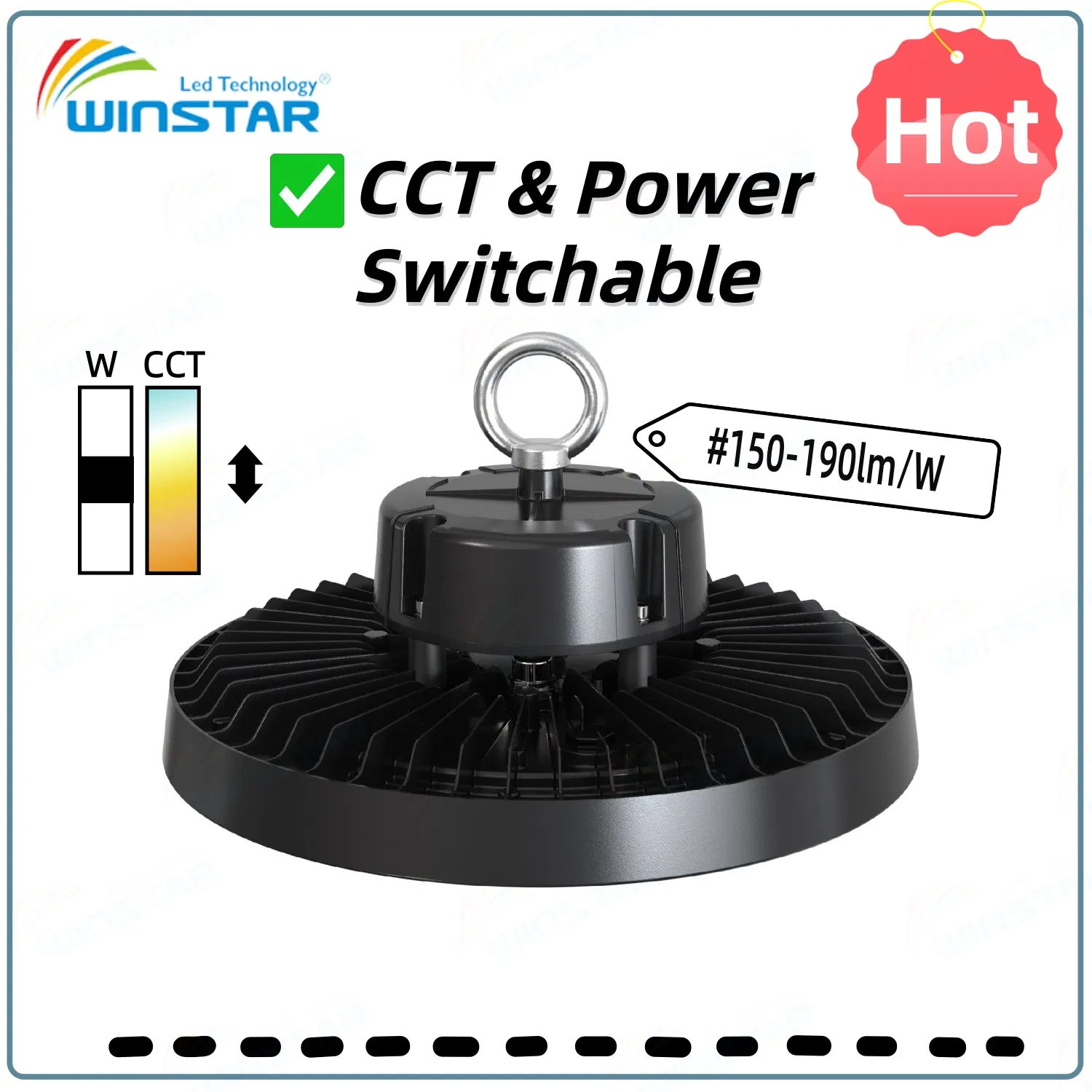

CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
ONE LIGHT REPLACES 9 | 5-YEAR WARRANTY | CE ROHS CERTIFIED
IP65 WATERPROOF | 50000H LIFESPAN | INDUSTRIAL LIGHTING FOR WAREHOUSE/FACTORY
CCT Switchable Power Adjustable IP65 Warehouse UFO LED High Bay Light
KEY Features

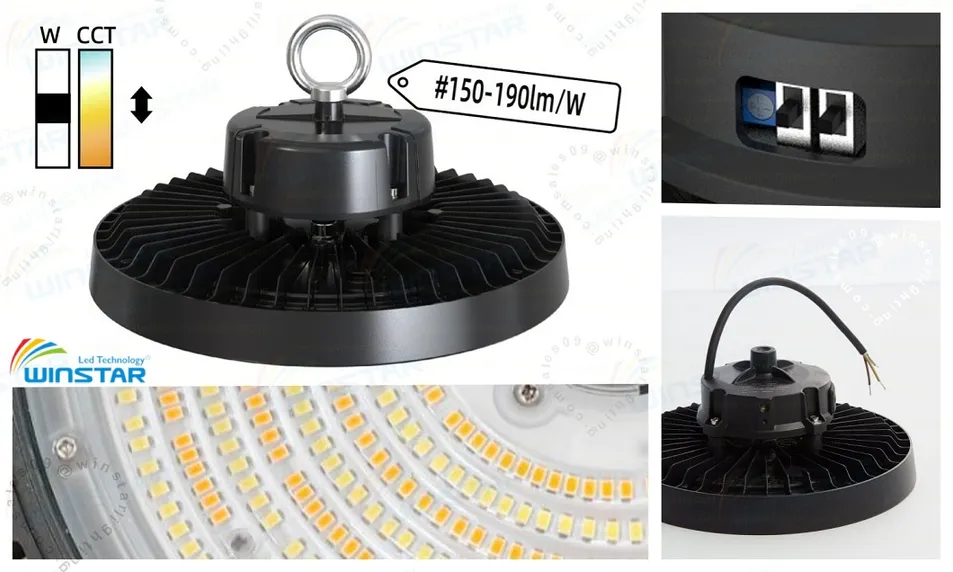

  • 3 CCT + 3 Power switchable: 1 lamp covers 9 lighting modes, eliminating multiple SKUs.
  • Aluminum housing: Large heat dissipation area for long-term stability.
  • High thermal conductivity and insulation aluminum substrate, safety creepage distance up to 5.0mm.
  • Energy efficient: 150/170/190 lm/W options to cut energy consumption.
  • 50,000-hour lifespan with low-maintenance.
  • Eco-friendly: Zero pollution, no UV/IR radiation.
  • High bright SMD2835: Low heat and enhanced reliability.
  • 5-year warranty, CE ROHS certified.
  • Suitable for warehouse and factory applications.

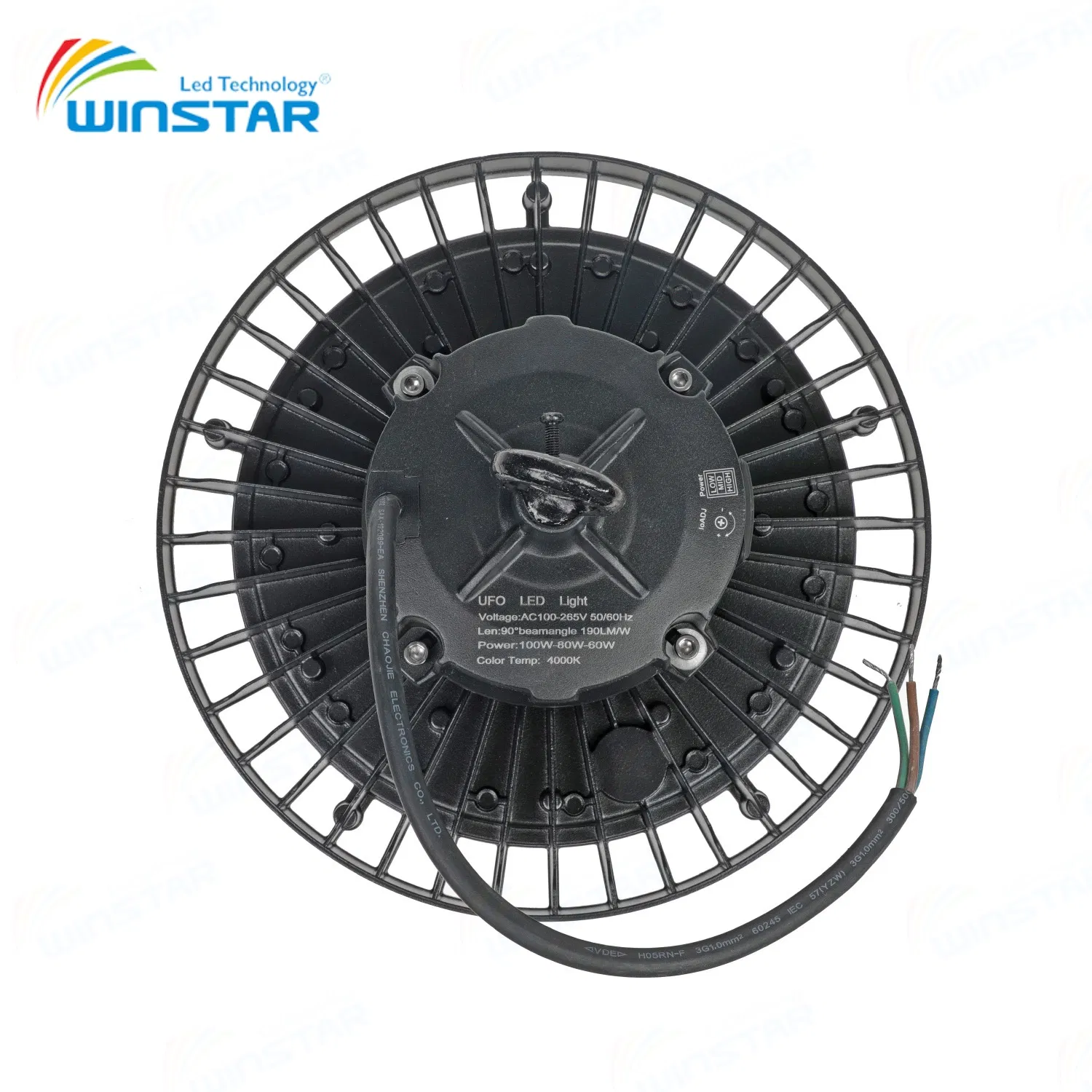

Back details
Back View

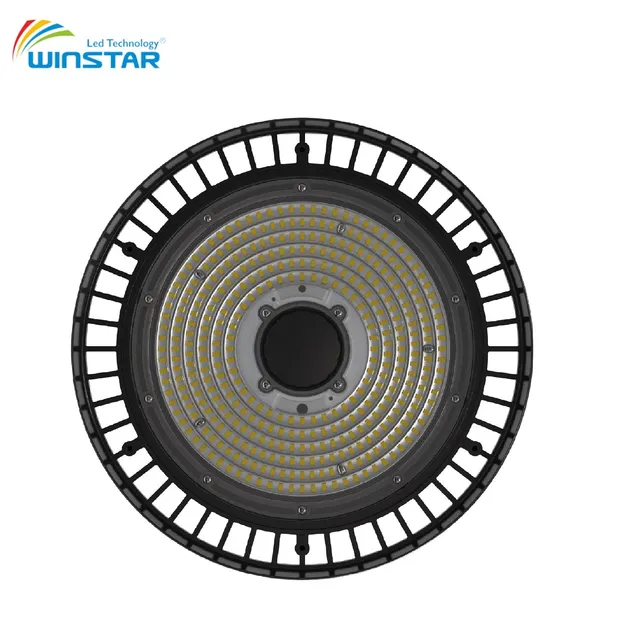

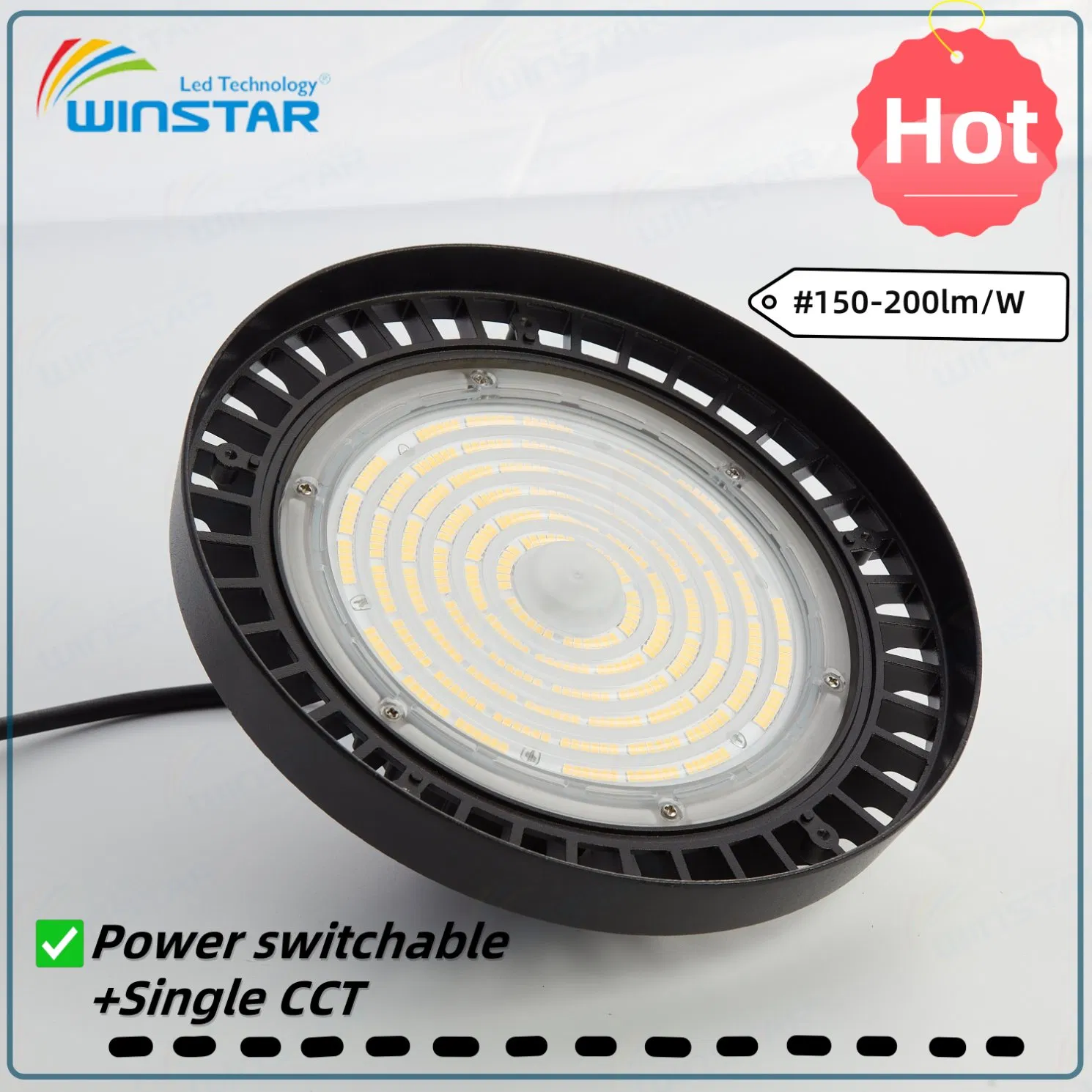

Front details
Front View

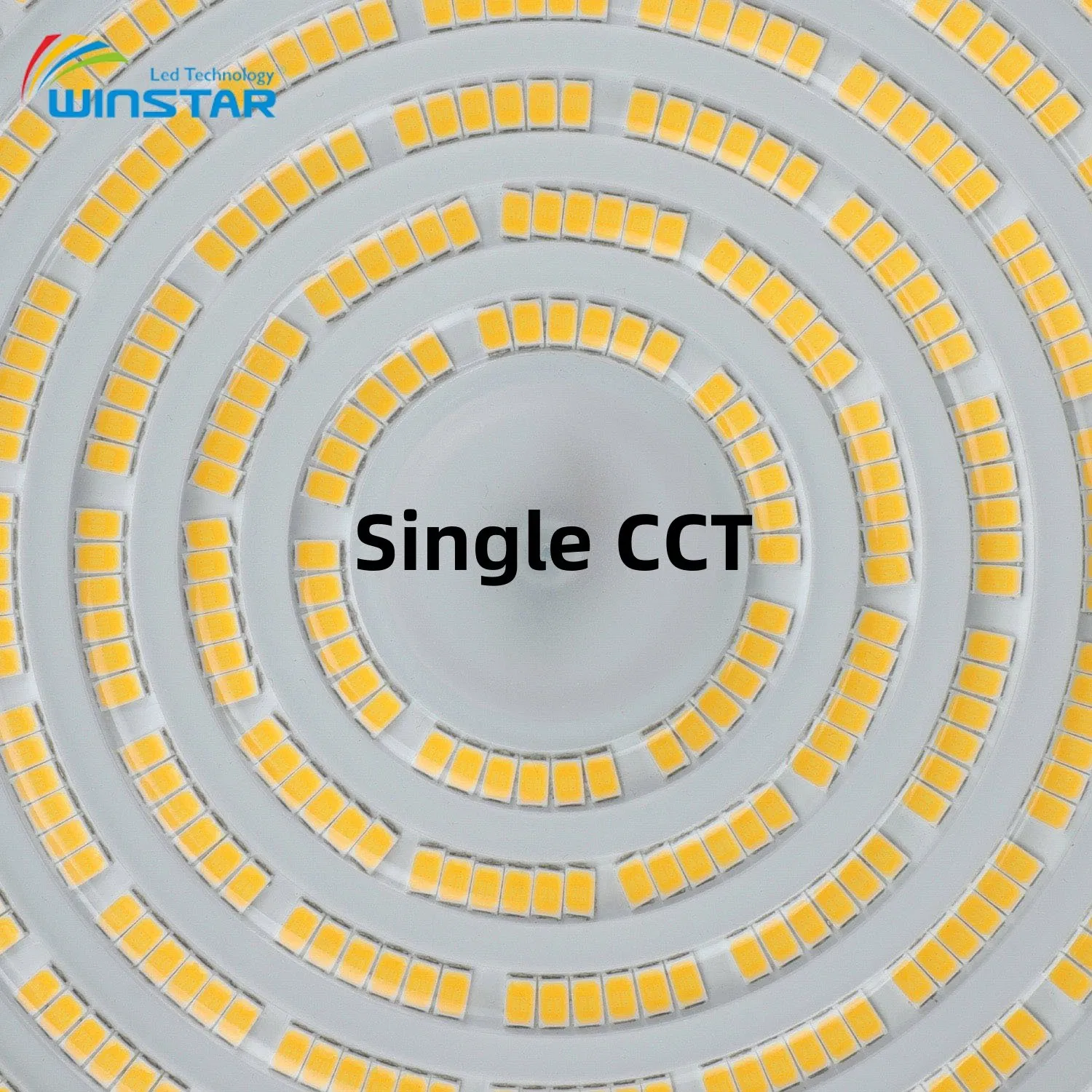

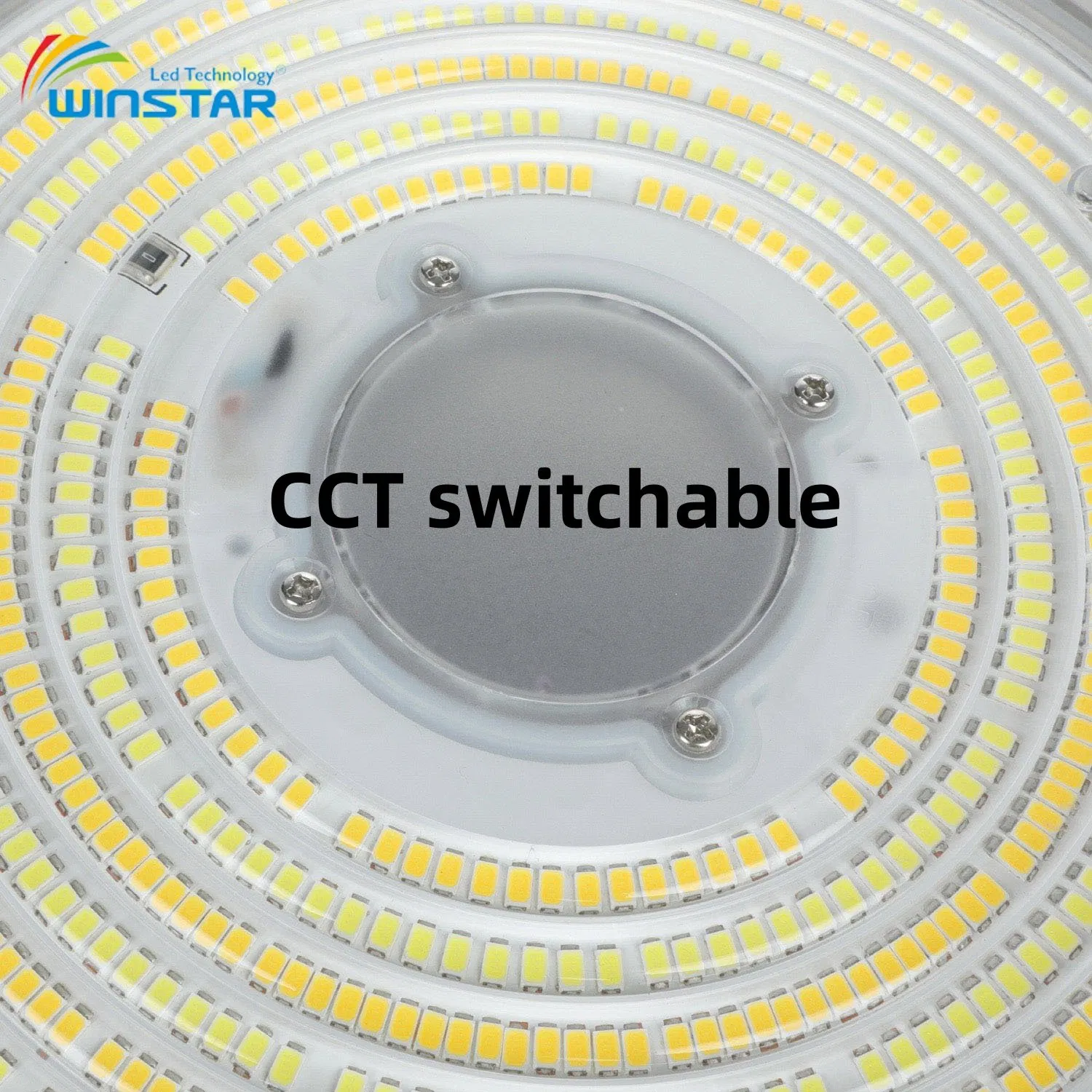

LEDs details
LED Details
Technical Specifications

(Custom configurations available upon request.)

Item NO. Size & Base type Power Switchable
(via Driver DIP switch)		 CCT Switchable
(via Driver DIP switch)		 Luminous Efficiency Lumen Reference
(Approx. 170lm/W)
WS-UFO-HL100W-G D254MM 100W-80W-60W 4000K/5000K/6000K
or
3000K/4000K/6000K 		150lm/W (Basic)
170lm/W (Cost Effective)
190lm/W (TOP Choice, Energy Efficient) 		17000lm - 13600lm - 10200lm
WS-UFO-HL150W-G D299MM 150W-120W-90W 25500lm - 20400lm - 15300lm
WS-UFO-HL200W-G D364MM 200W-160W-120W 34000lm - 27200lm - 20400lm
Working Voltage: 220-240VAC, or 100-277VAC
CRI: RA70, RA80, RA90 (customized based on request)
Beam Angle: 60/90/120°
Warranty: 5 Years

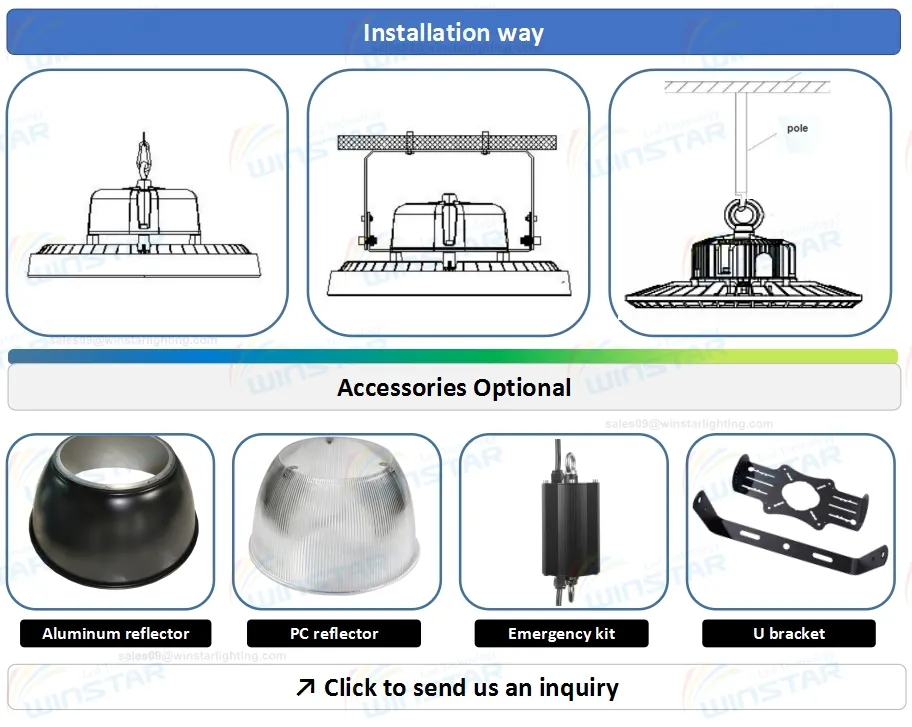

* Accessories: Hooking (standard hanging installation); ceiling mounting bracket (available as additional purchase)
* LM80, IES, DIALUX simulations are available

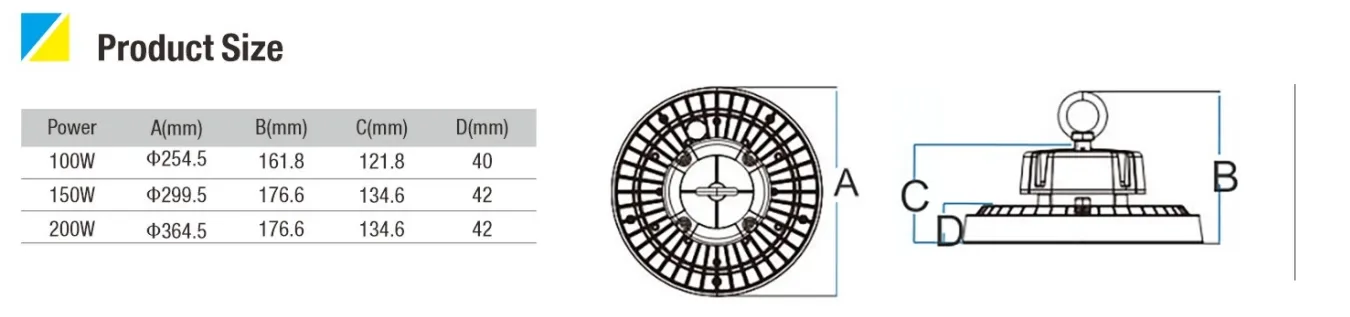

Specifications Diagram
Packaging & Shipping

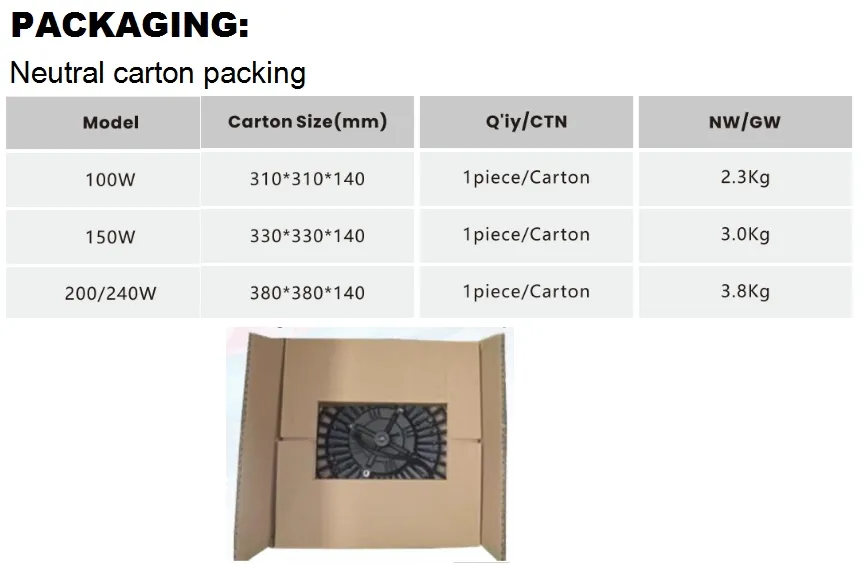

Packaging Details
Shipping Details
Logistics Details
After Sales Service
  • Standard Warranty: 5 Years Warranty
  • Global Support: Online technical guidance
  • IES File / DIALUX Simulation: Available upon request
Production & Service Capabilities

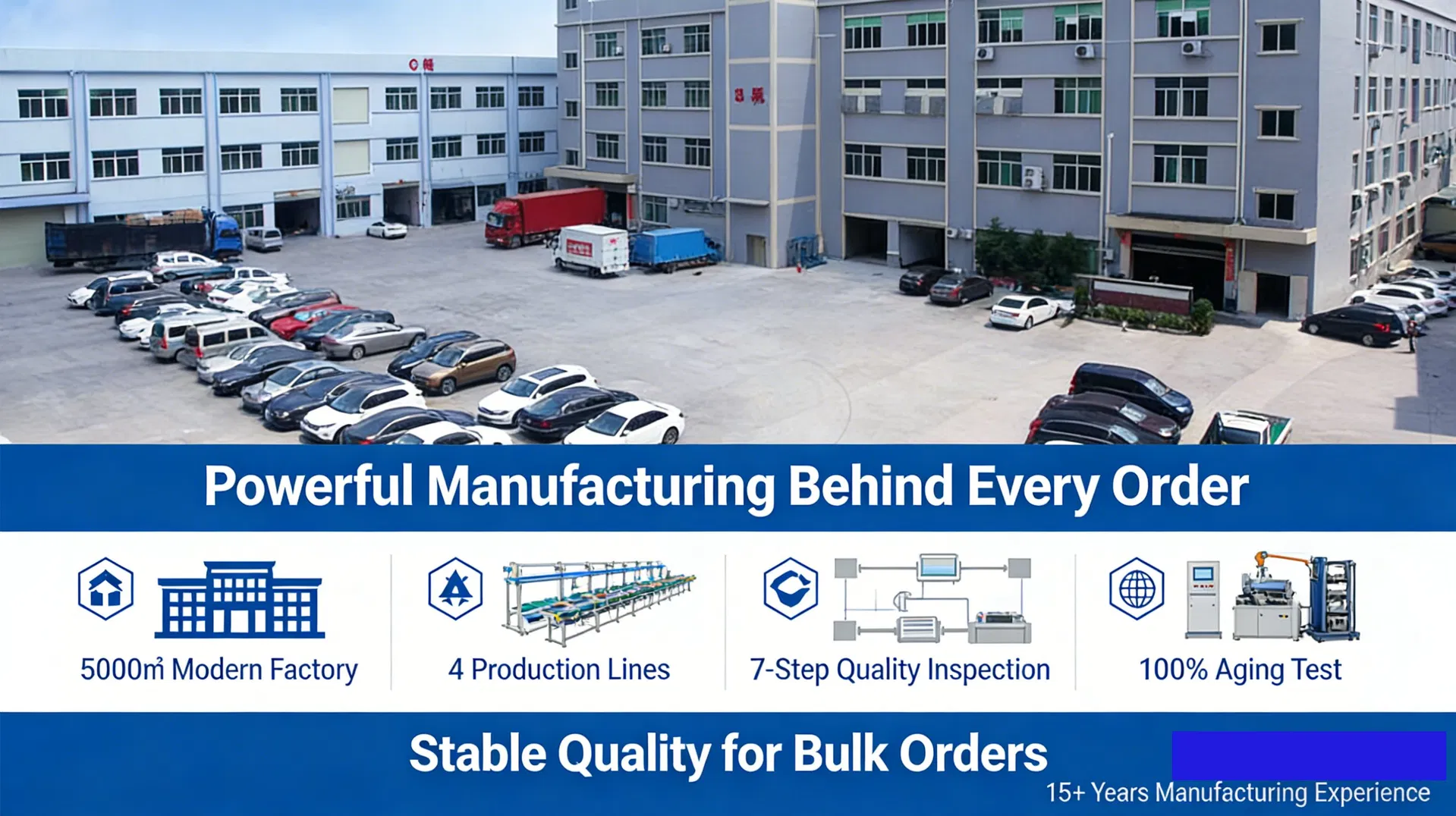

Production Facility

Specialized in high-lumen LED lighting (200lm/W tubes, 180lm/W panels, 180lm/W tri-proof lights, 210lm/W high bays, 180lm/W Linear Track light, commercial, industrial & agricultural lighting), holding ISO9001, TUV, CE, ROHS, SAA certifications. Products are exported to 60+ countries across Europe, North America, South America, Southeast Asia, and the Middle East.

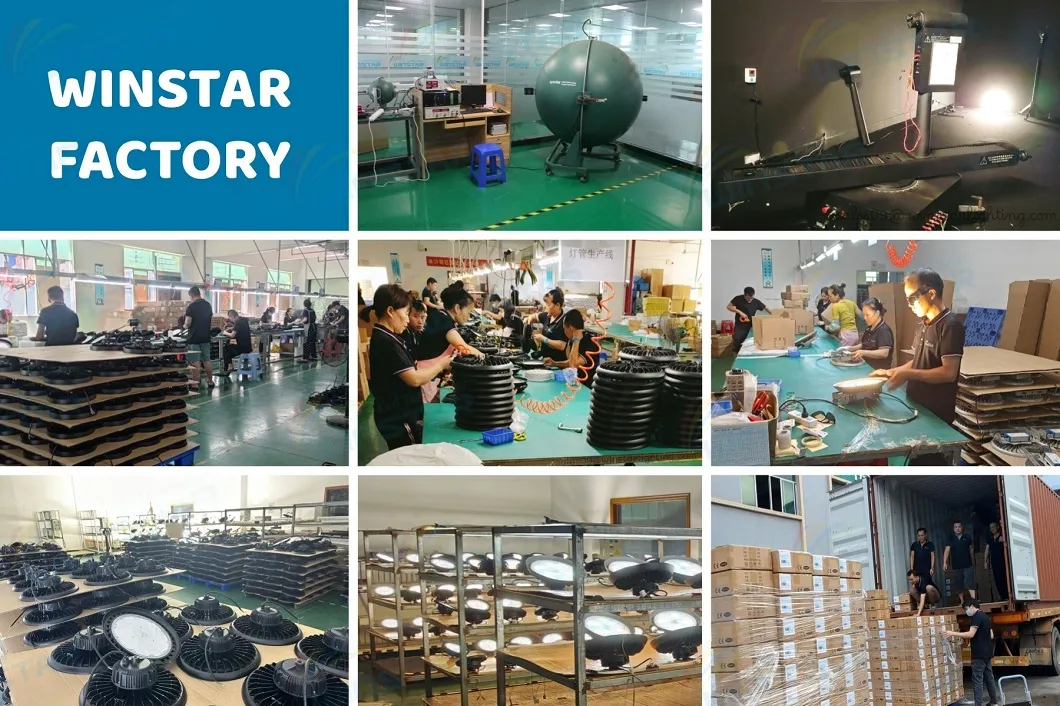

Testing Equipment
Manufacturing Flow
Certifications

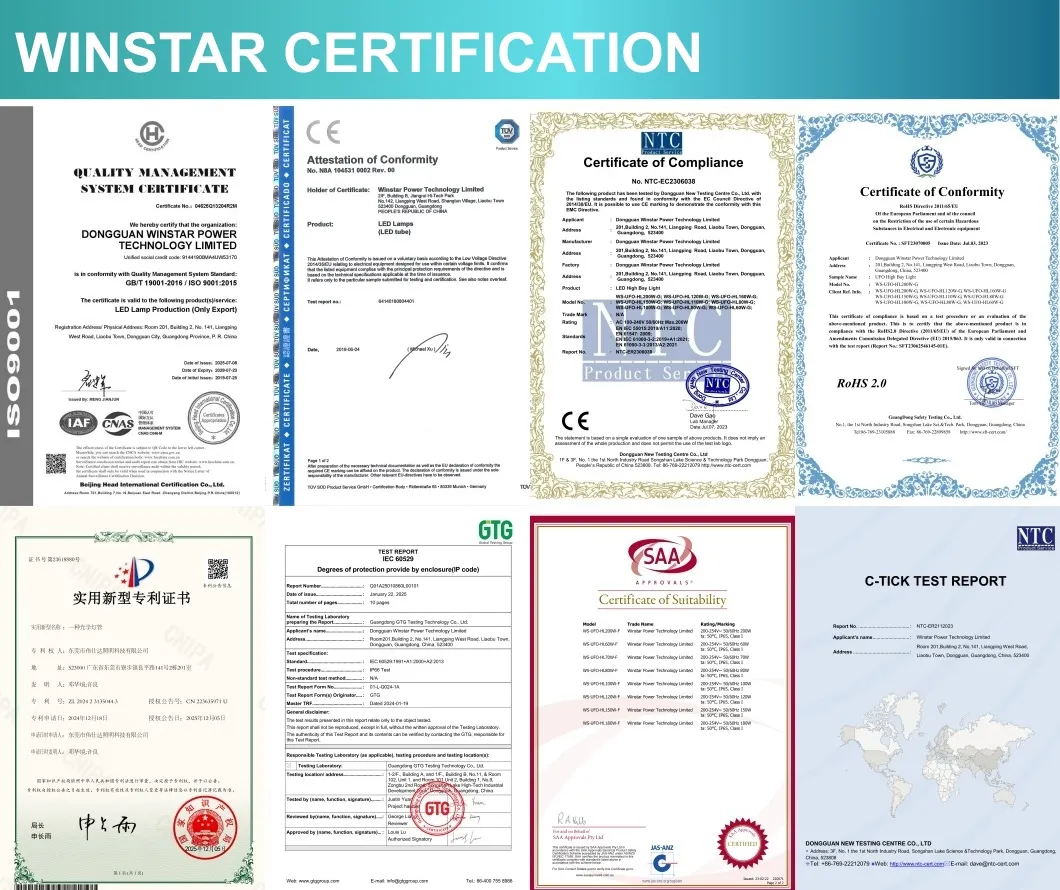

Product Certifications
Why Choose Us?
  • OEM/ODM capabilities
  • Competitive pricing & bulk discounts
  • Fast shipping & customs clearance support
  • Tailored project solutions
Other Product Range
  • LED Tube
  • LED Tri-proof Light
  • LED Linear Track Light
  • LED Flood Light
  • LED Panel Light
  • LED Agricultural Light
  • LED Plane Grow Light
Frequently Asked Questions
How do you ensure the quality of your LED lights?
We implement a rigorous four-step quality control process: 1. Thorough inspection of raw materials; 2. In-line inspection during production; 3. 100% individual testing after aging; 4. Final random QC checks of the packaged products.
What is the procedure if a quality issue occurs under warranty?
In case of any issues, please provide us with photos or videos demonstrating the defect. Once confirmed, we will ship brand new replacements to you free of charge.
Do you accept OEM or ODM requests?
Yes, both OEM and ODM options are fully supported. We can print your custom logo on the lights or customize the packaging to meet your requirements.
What is your Minimum Order Quantity (MOQ)?
For new clients, we support small test orders to help build mutual trust and start a long-term business relationship.
What are the recommended shipping methods?
We recommend courier shipping (DHL, FedEx, UPS) for small orders, air freight for medium shipments, and sea transport for large bulk shipments.
What is the typical lead time for samples and mass production?
Sample preparation generally takes 5-7 working days. The turnaround time for bulk production depends on the order volume.
