| MODEL NUMBER | LFT-60W | LFT-80W | LFT-100W | LFT-120W |
|---|---|---|---|---|
| Power | 60W | 80W | 100W | 120W |

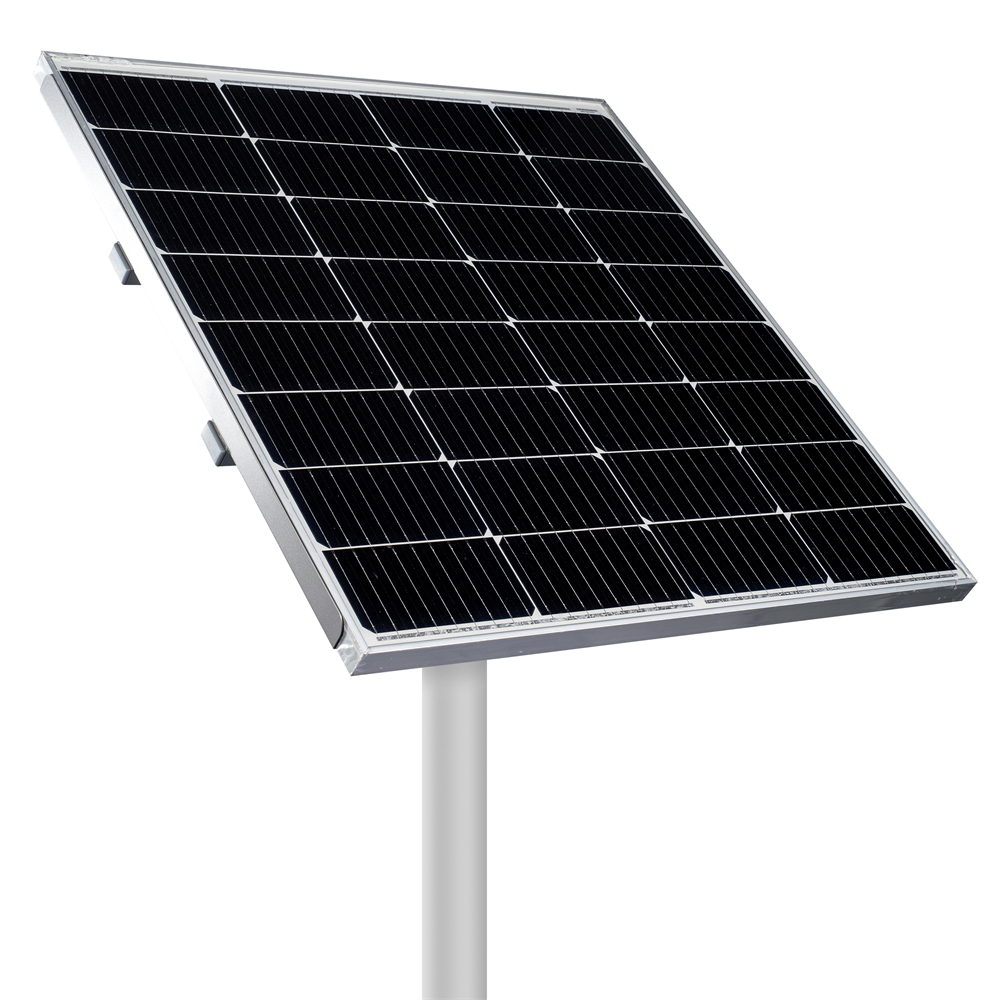

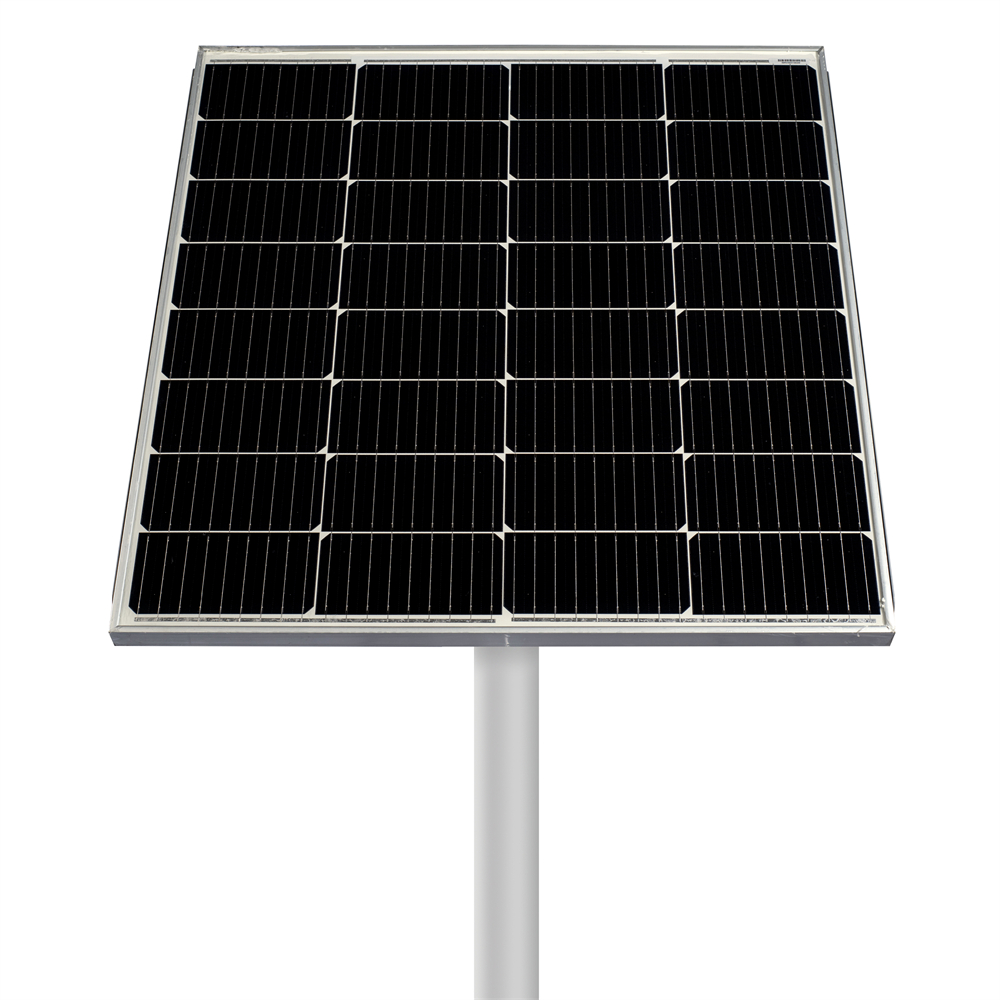

| Solar Panel | 18V/120W Mono | 18V/160W Mono | 36V/200W Mono | 36V/240W Mono |
| Battery | Lithium LifePO4 battery 12.8V, 45AH, 576WH |
Lithium LifePO4 battery 12.8V, 60AH, 768WH |
Lithium LifePO4 battery 12.8V, 75AH, 968WH |
Lithium LifePO4 battery 25.6V, 45AH, 1152WH |
| LED | 4 cores high efficiency smd 3030 192PCS |
4 cores high efficiency smd 3030 256PCS |
4 cores high efficiency smd 3030 320PCS |
4 cores high efficiency smd 3030 384PCS |
| Solar Panels Size | 800*760*30mm | 1040*760*30mm | 1320*760*30mm | 1540*760*30mm |

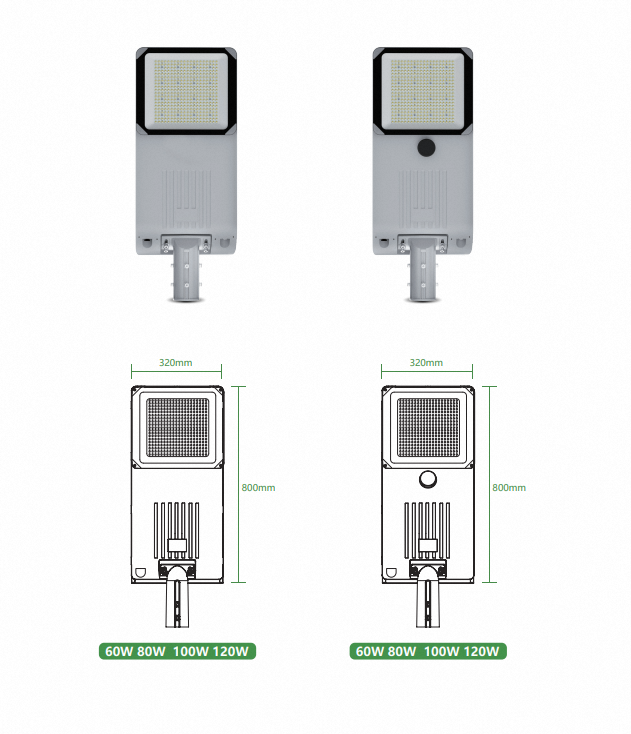

| Product Size | 810*320*95mm | |||
| Protection grade | IP66 | |||
| Efficacy | 180LM/W | |||
| Solar panel conversion efficiency | 23.8% | |||
| Luminous Flux | 10800LM | 14400LM | 18000LM | 21600LM |
| Controller | MPPT controller | |||
| Light angle | T2/3/4/5/ transmittance:>95% | |||
| Cloud platform system management | Iot Control Management System(optional) | |||
| Lighting Method | 100% for the first 4 hours, 50% for the middle 2 hours, and 30% for the last 6 hours | |||
| Discharge time | 3 rainy days | |||
| Installation Height Recommended | 6-8m | 8-10m | 10-12m | 12-15m |
