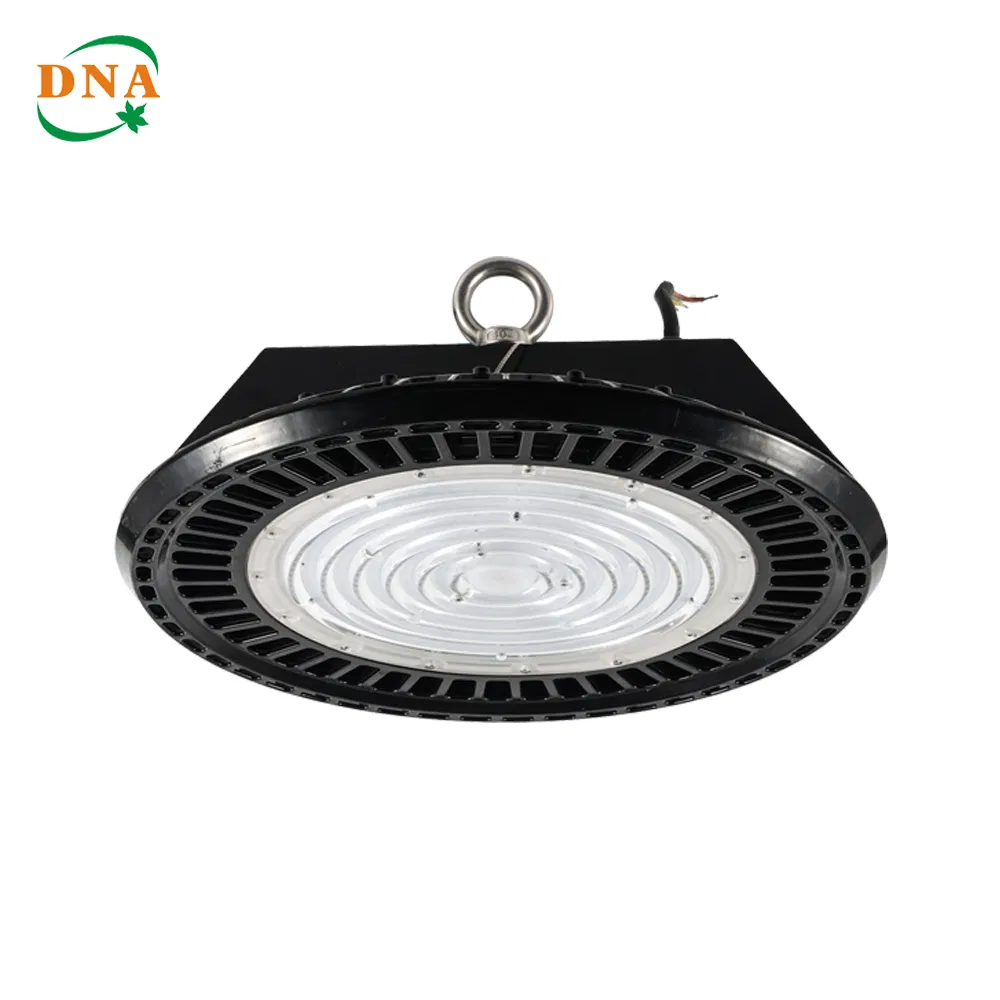

Durable LED High Bay Light Fixture for Industrial Applications

1 / 5

Durable LED High Bay Light Fixture for Industrial Applications

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO. HT03

Power 120—250W

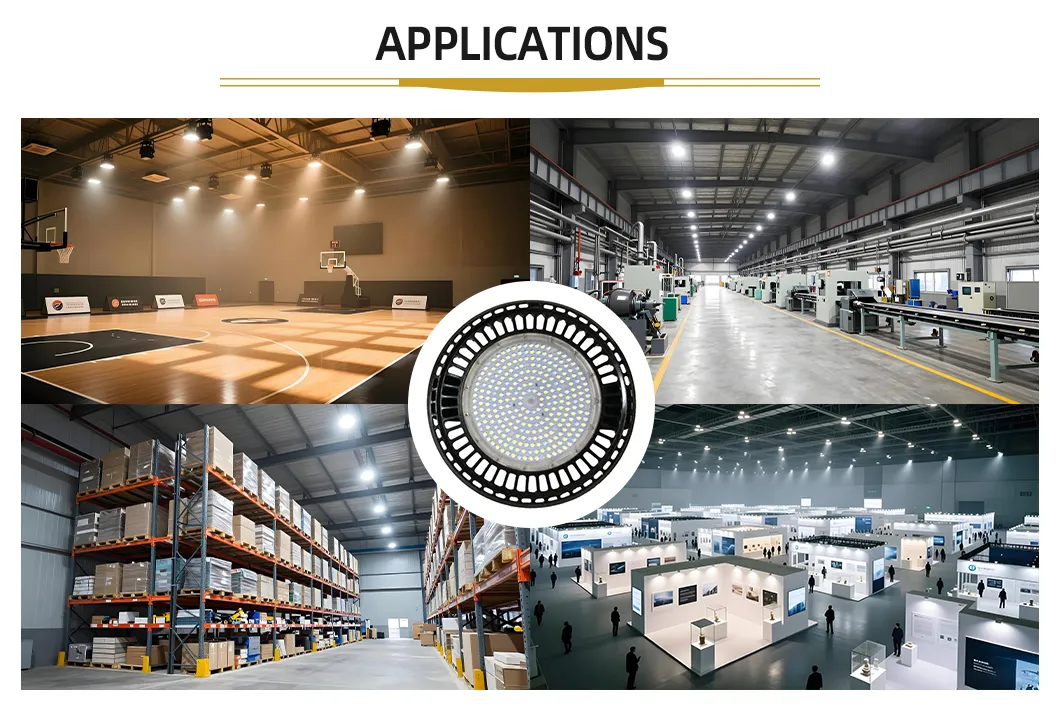

Usage Exhibition, Warehouse, Factory

Lifespan >50000 hours

IP Rating 54/66

Certification CE, PSE, RoHS, UL

Beam Angle 90°

LED Chips CREE

Operating Voltage AC90—300V

PF ≥0.9

LED Light Source SMD3030/5050

Luminous Efficiency 100—200 Lm/W

Warranty 3/6 Years

Transport Package Carton

Specification LED

Production Capacity 1,000,000 PCS/Year

Packaging & Delivery

Package Size 40.00cm * 40.00cm * 25.00cm

Package Gross Weight 6.000kg

Parameters

Model	HT03-120W	HT03-150W	HT03-175W	HT03-200W	HT03-250W
Power	120W	150W	175W	200W	250W
Input Voltage	AC90-300V	AC90-300V	AC90-300V	AC90-300V	AC90-300V
LED Type	3030/5050	3030/5050	3030/5050	3030/5050	3030/5050
Lumen/Wattage	100-200	100-200	100-200	100-200	100-200
Anti-surge	10KV	10KV	10KV	10KV	10KV
Power Factor	≥0.9	≥0.9	≥0.9	≥0.9	≥0.9
CRI	>80	>80	>80	>80	>80
Color Temp.	1800-7500K	1800-7500K	1800-7500K	1800-7500K	1800-7500K
0-10V Dimming	Available	Available	Available	Available	Available
Start Time	<0.5s	<0.5s	<0.5s	<0.5s	<0.5s
IK Rating	10	10	10	10	10
IP Rating	54/66	54/66	54/66	54/66	54/66
Beam Angle	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°	60°/90°/120°
Housing Color	Black/Grey	Black/Grey	Black/Grey	Black/Grey	Black/Grey
Working Temp.	-45 ℃ to +65 ℃	-45 ℃ to +65 ℃	-45 ℃ to +65 ℃	-45 ℃ to +65 ℃	-45 ℃ to +65 ℃
Humidity	10%~95%RH	10%~95%RH	10%~95%RH	10%~95%RH	10%~95%RH
Body Material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
IES File	Available	Available	Available	Available	Available
Life Time	>50000Hours	>50000Hours	>50000Hours	>50000Hours	>50000Hours
Warranty	3/6 Years	3/6 Years	3/6 Years	3/6 Years	3/6 Years
Dimensions (mm)	340340175	340340175	340340175	340340175	340340175
Net Weight (kg)	5.5	6.0	6.5	7.0	7.5

Product Characteristics

✓ HT03 is a unique LED High Bay Light, it can't be bought elsewhere on the market.

✓ It has a heavy duty aluminum alloy body, it is good at heat dissipation, ensures the lamp works up to 250 Wattage.

✓ It has a linear, big and strong electrical cabinet, it is capable to load most of the famous LED drivers on the market.

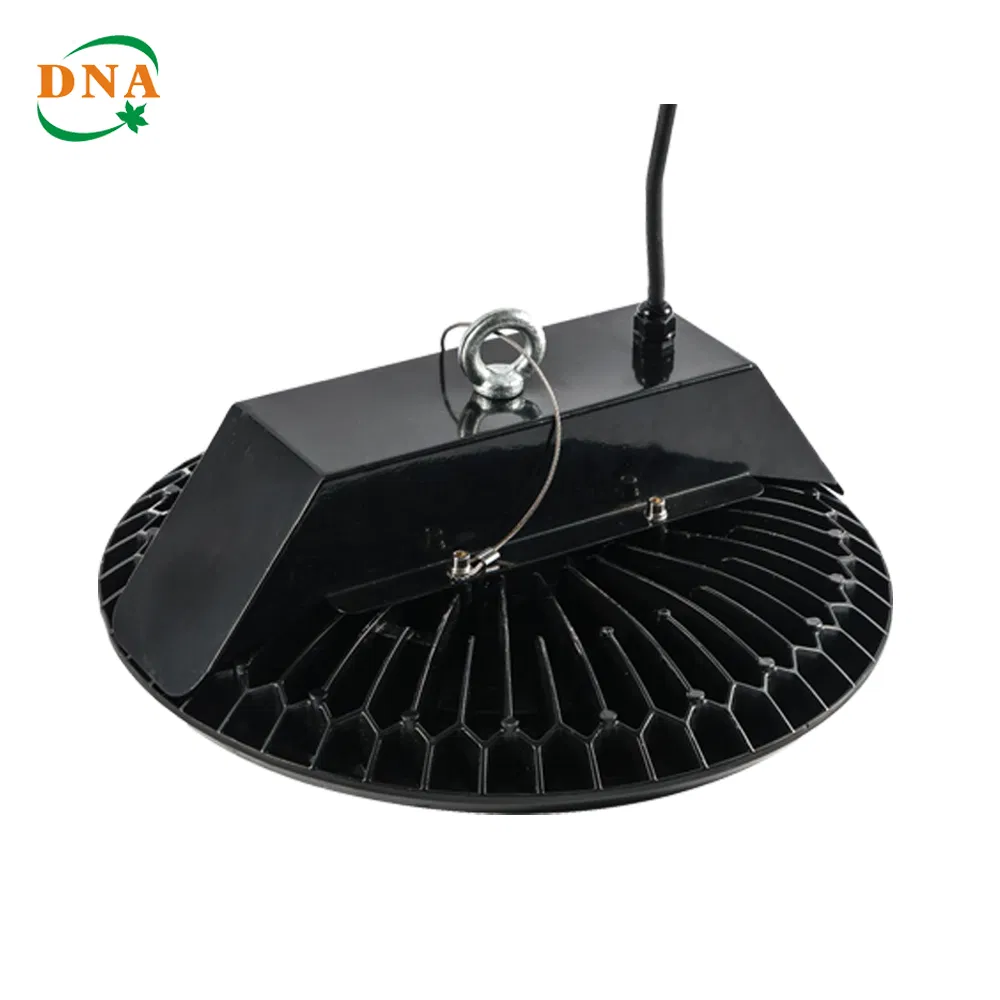

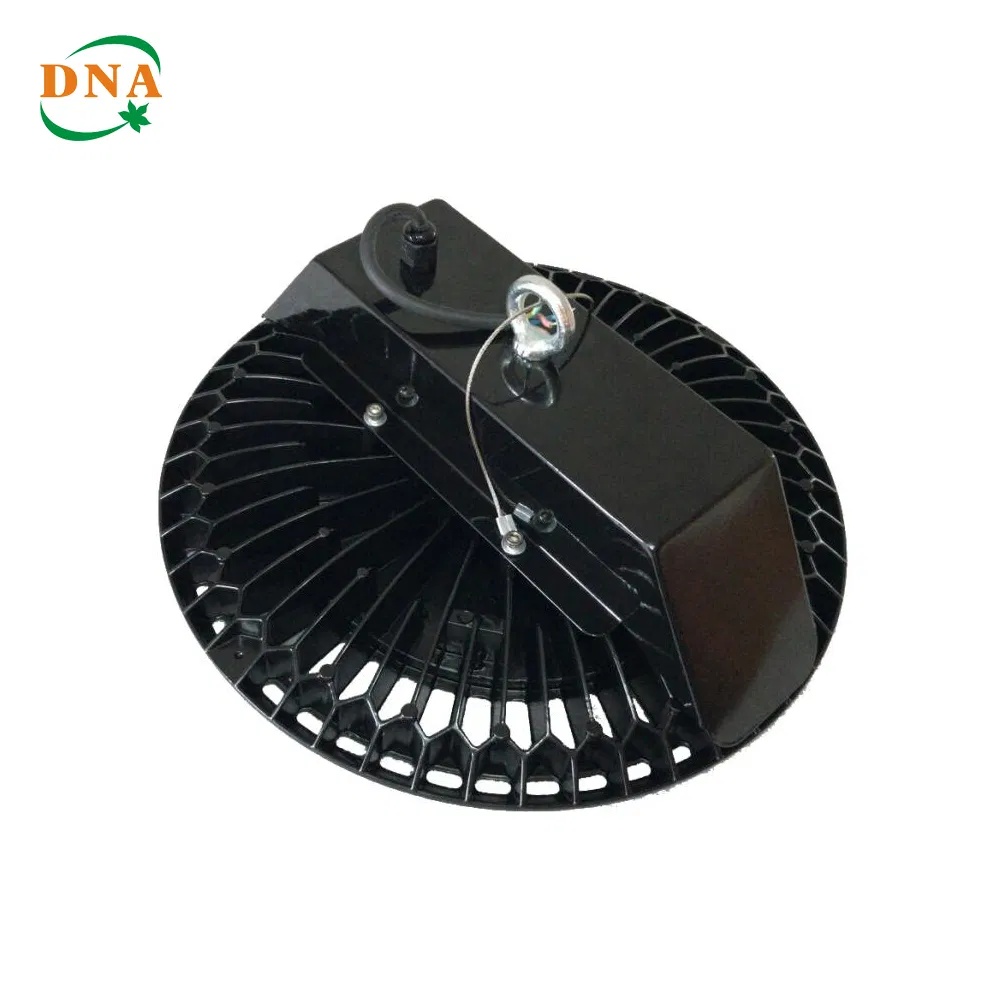

✓ It has an extra safety belt, after hanging on the roof, it provides one more security guarantee to human body & lamp.

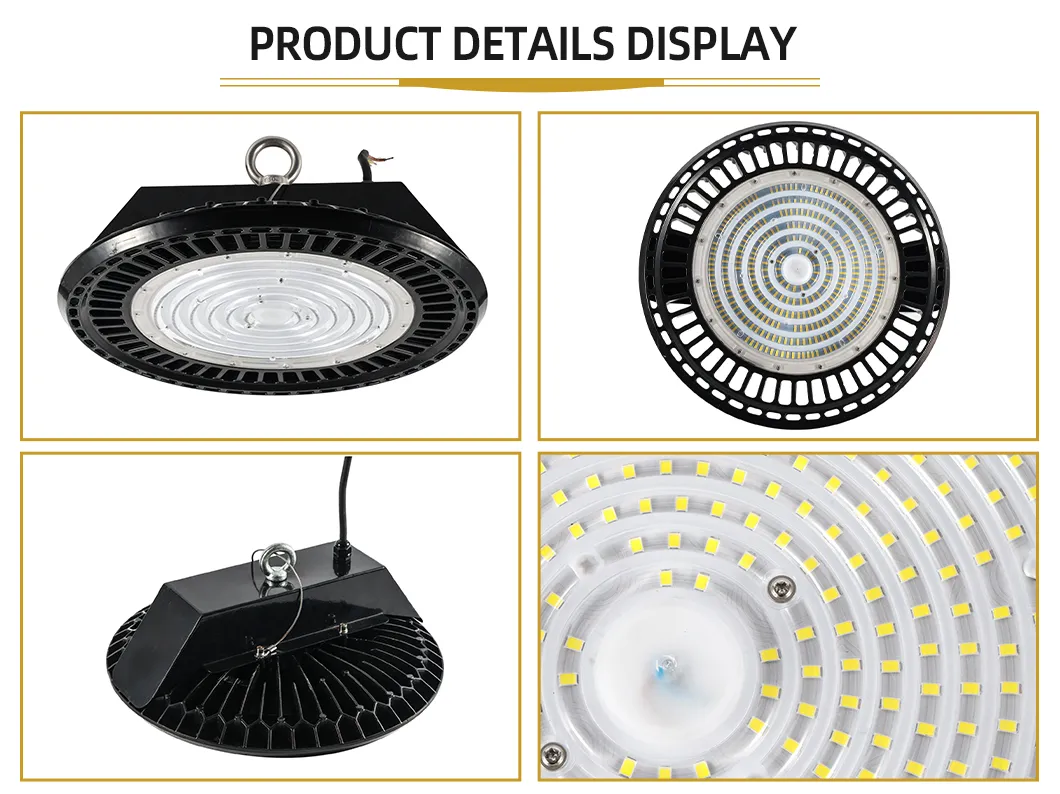

Product Details Gallery

Frequently Asked Questions

Do you produce these products directly?

Yes, we are an original manufacturer. We have been producing high-quality lighting products since 2001.

Can we place an order for only one set?

Yes, there is no minimum quantity requirement. Sample orders are welcome.

Do you provide customization options?

Yes, we can customize products for you, such as adjusting the light output parameters (e.g., emitting blue light < 1%).

What kind of warranty do you offer on these products?

We offer warranties ranging from one to ten years, depending on your specific quality and project requirements.

Do you have a reliable after-sale support policy?

Yes, we guarantee free replacement support for any manufacturing or product quality issues.

Is 0-10V dimming supported on the HT03 series?

Yes, 0-10V dimming functionality is available across all HT03 model variations, from 120W to 250W.
