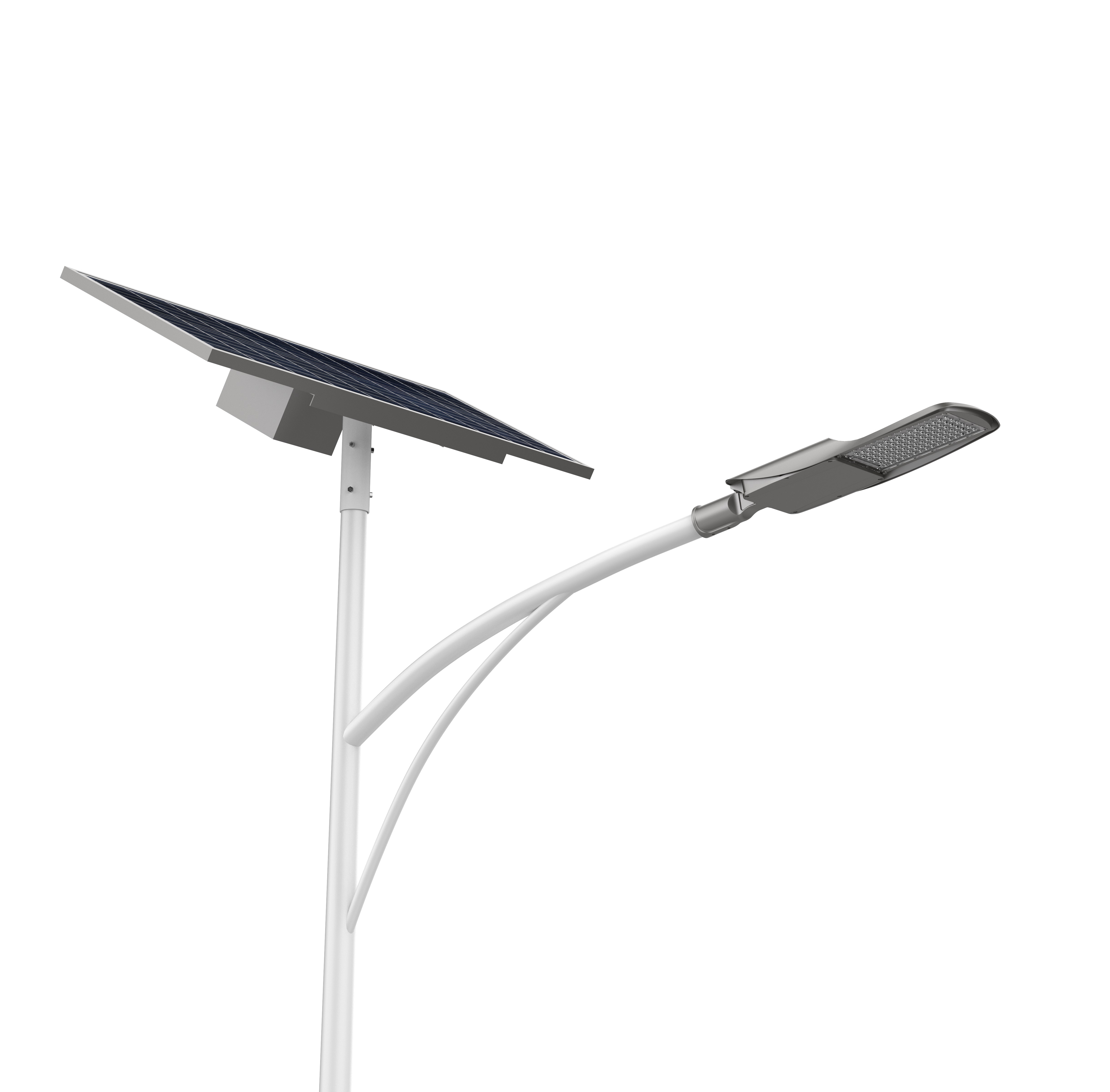

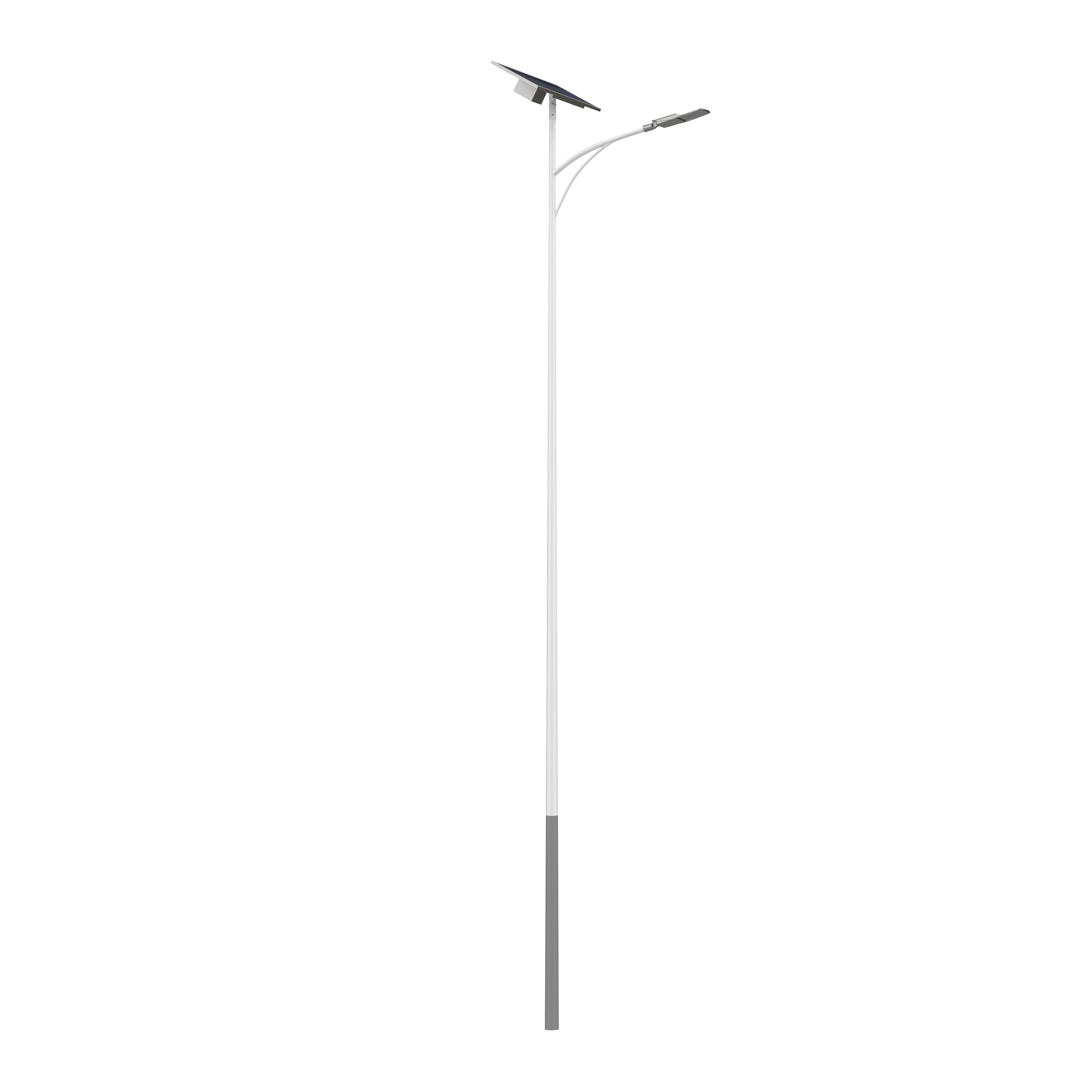

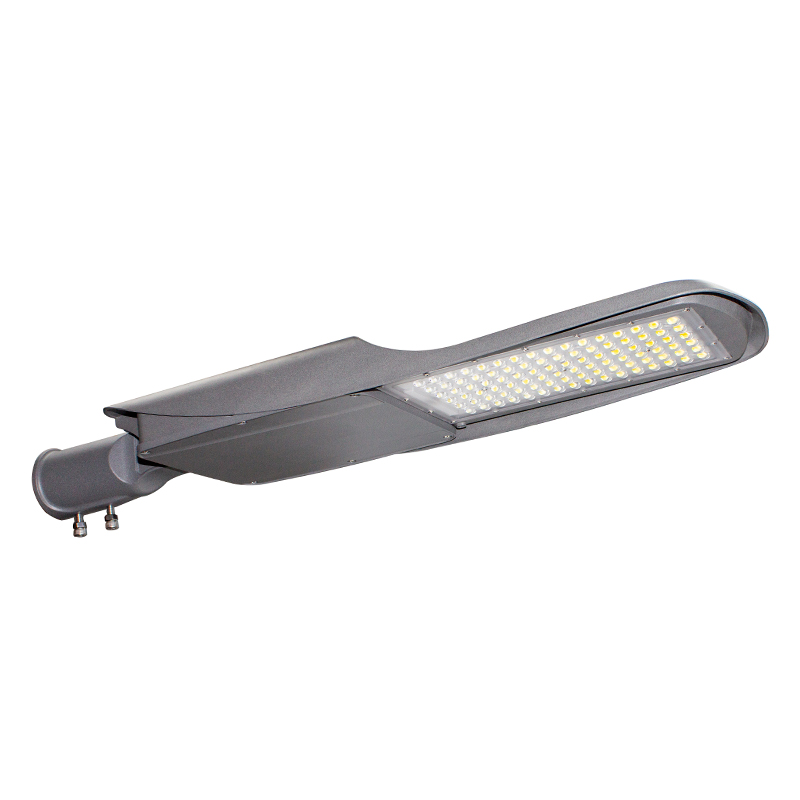

60W 70W 80W 90W 100W 120W DC12.8V 200lm/w /SMD solar LED Street Lighting
Our high-quality outdoor LED lighting products are the perfect lighting solution for all of your road lighting design projects.
Each of our outdoor LED lighting fixtures is built to last a lifetime. If you want durable and reliable LED lights for the outdoors that are made using precision engineered LED lighting components and designs that will always look great from the moment they are installed to years later.

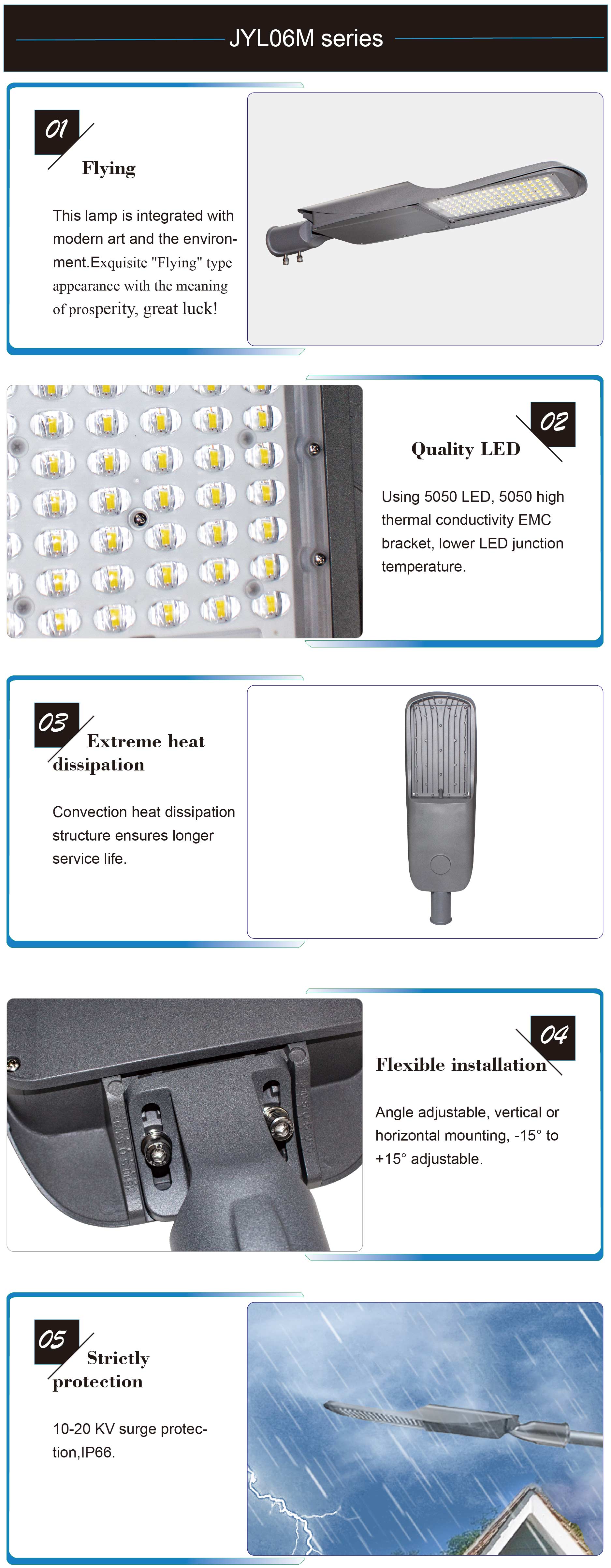

Product Features
Patented technology, integrated structure design
Convection heat dissipation structure
Using 5050 PCT bracket with high thermal conductivity
Vertical or horizontal installation, -15° to +15° angle adjustable
Human efficacy light distribution
Parameters
Item
Power
Specification
1
60W
Solar Panel: Monocrystalline silicon, 120W/18V
Battery: LiFePO4, 50AH/12.8V
Lamp: CCT 2700-6500K, CRI70, Lamp Efficiency: 200lm/W, LED Chip: SMD5050, IP66, LED Life: >50000Hr
Controller: MPPT
Working Mode: Time control + Remote control
Beam Angle: 60*155°
Discharge time: 3-5 rainy days
2
70W
Solar Panel: Monocrystalline silicon, 130W/18V
Battery: LiFePO4, 60AH/12.8V
Lamp: CCT 2700-6500K, CRI70, Lamp Efficiency: 200lm/W, LED Chip: SMD5050, IP66, LED Life: >50000Hr
Controller: MPPT
Working Mode: Time control + Remote control
Beam Angle: 60*155°
Discharge time: 3-5 rainy days
3
80W
Solar Panel: Monocrystalline silicon, 160W/18V
Battery: LiFePO4, 80AH/12.8V
Lamp: CCT 2700-6500K, CRI70, Lamp Efficiency: 200lm/W, LED Chip: SMD5050, IP66, LED Life: >50000Hr
Controller: MPPT
Working Mode: Time control + Remote control
Beam Angle: 60*155°
Discharge time: 3-5 rainy days
4
90W
Solar Panel: Monocrystalline silicon, 2*90W/18V
Battery: LiFePO4, 50AH/25.6V
Lamp: CCT 2700-6500K, CRI70, Lamp Efficiency: 200lm/W, LED Chip: SMD5050, IP66, LED Life: >50000Hr
Controller: MPPT
Working Mode: Time control + Remote control
Beam Angle: 60*155°
Discharge time: 3-5 rainy days
5
100W
Solar Panel: Monocrystalline silicon, 2*100W/18V
Battery: LiFePO4, 60AH/25.6V
Lamp: CCT 2700-6500K, CRI70, Lamp Efficiency: 200lm/W, LED Chip: SMD5050, IP66, LED Life: >50000Hr
Controller: MPPT
Working Mode: Time control + Remote control
Beam Angle: 60*155°
Discharge time: 3-5 rainy days
6
120W
Solar Panel: Monocrystalline silicon, 2*120W/18V
Battery: LiFePO4, 80AH/25.6V
Lamp: CCT 2700-6500K, CRI70, Lamp Efficiency: 200lm/W, LED Chip: SMD5050, IP66, LED Life: >50000Hr
Controller: MPPT
Working Mode: Time control + Remote control
Beam Angle: 60*155°
Discharge time: 3-5 rainy days

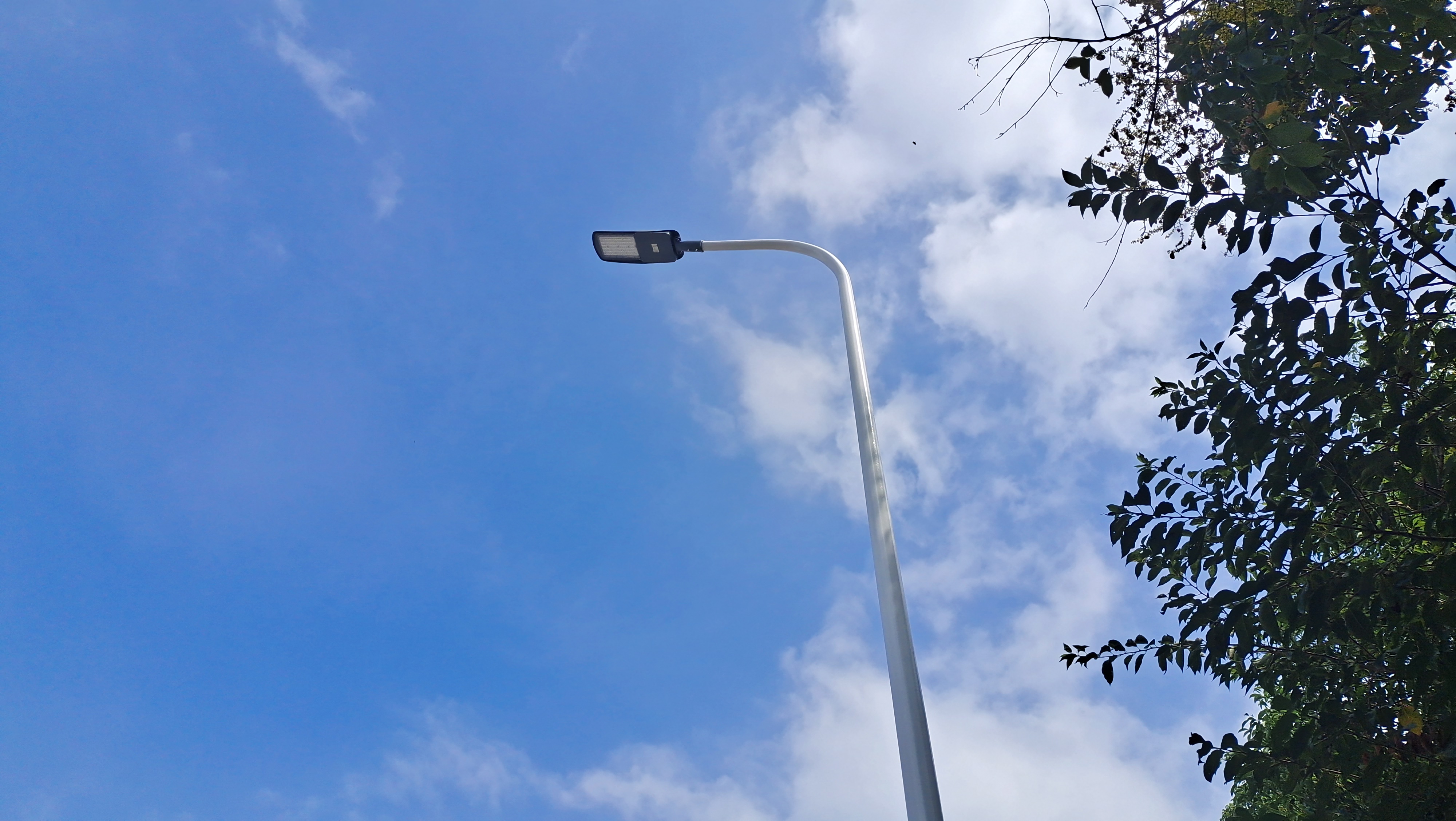

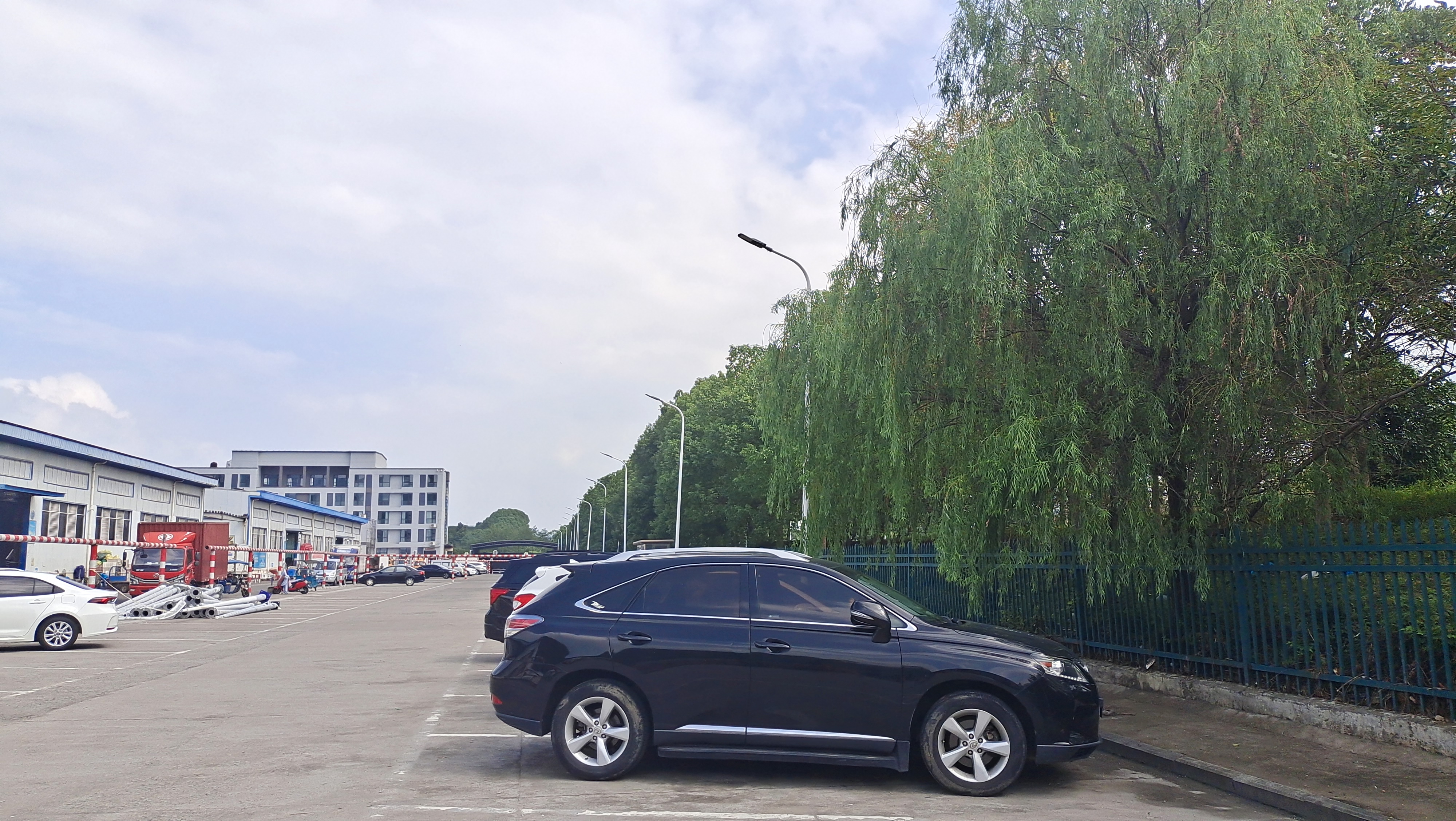

Application
Perfectly apply to park, parking lot, street light, squares, country road, etc.
We welcome you to purchase our superior line of led outdoor streetlights, flood lights, path lights, wall washer lights, garden lights which are all crafted for professional results.
Frequently Asked Questions (FAQ)
QWhat makes the heat dissipation of these solar LED street lights effective?
These lights utilize a built-in convection heat dissipation structure combined with a 5050 PCT bracket featuring exceptionally high thermal conductivity to safely regulate operating temperatures.
QCan the installation angle of the light head be adjusted?
Yes. The fixture supports both vertical and horizontal mounting configurations, offering an adjustable installation angle range from -15° to +15°.
QWhat is the IP rating and overall life expectancy of the LED components?
The streetlights feature an IP66 waterproof and dustproof rating. Using SMD5050 LEDs, the light source maintains a lifetime exceeding 50,000 working hours.
QHow long will the street light discharge and run during rainy days?
Thanks to efficient MPPT controllers and premium LiFePO4 batteries, the lights can run continuously for 3 to 5 rainy days on a full charge.
QWhat are the available power options for this street light model?
This model range is highly versatile and is available in 60W, 70W, 80W, 90W, 100W, and 120W configurations to fit various illumination demands.
QWhat control modes are built into the lighting system?
The fixture runs on a smart MPPT controller, offering a reliable working mode governed by dual Time Control and Remote Control operations.
