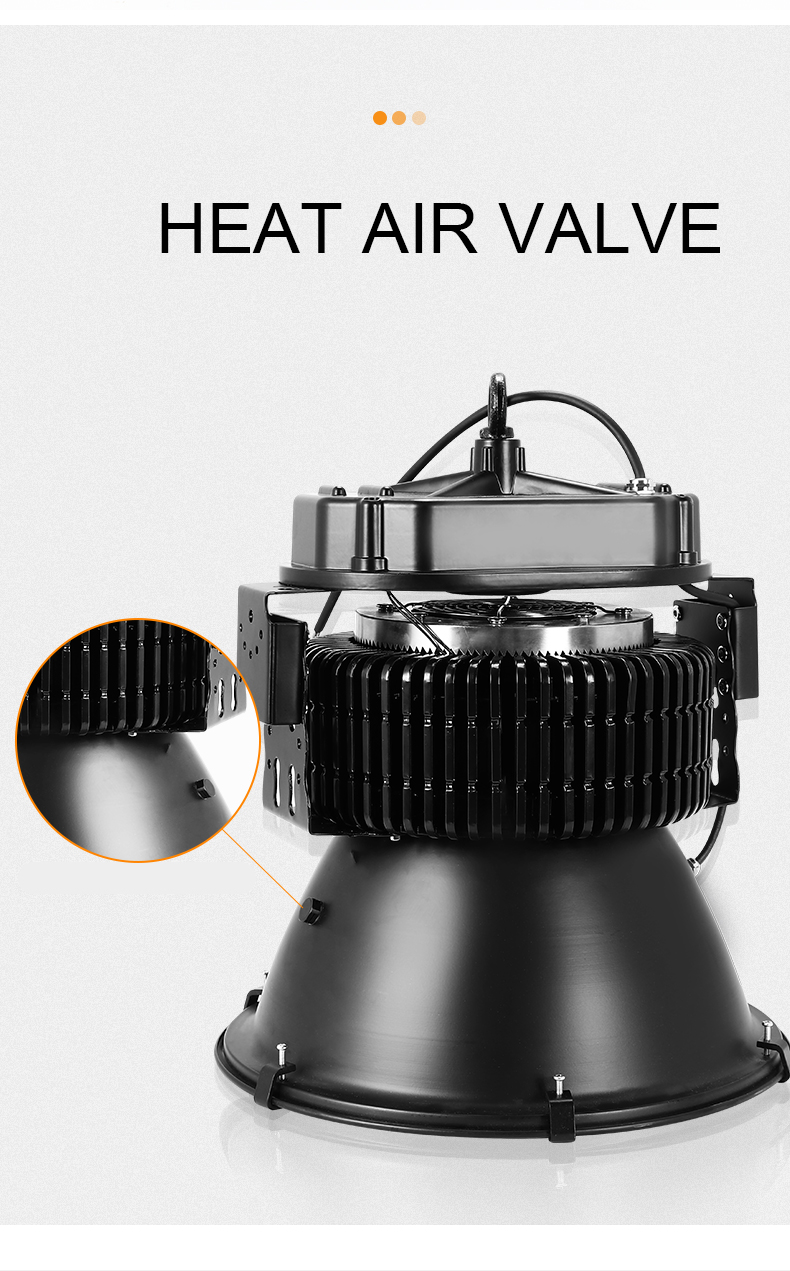

Hollow heat sink design, better for airflow, good heat dissipation.
LED and heat sink are parallel, no dark area, no shadow.

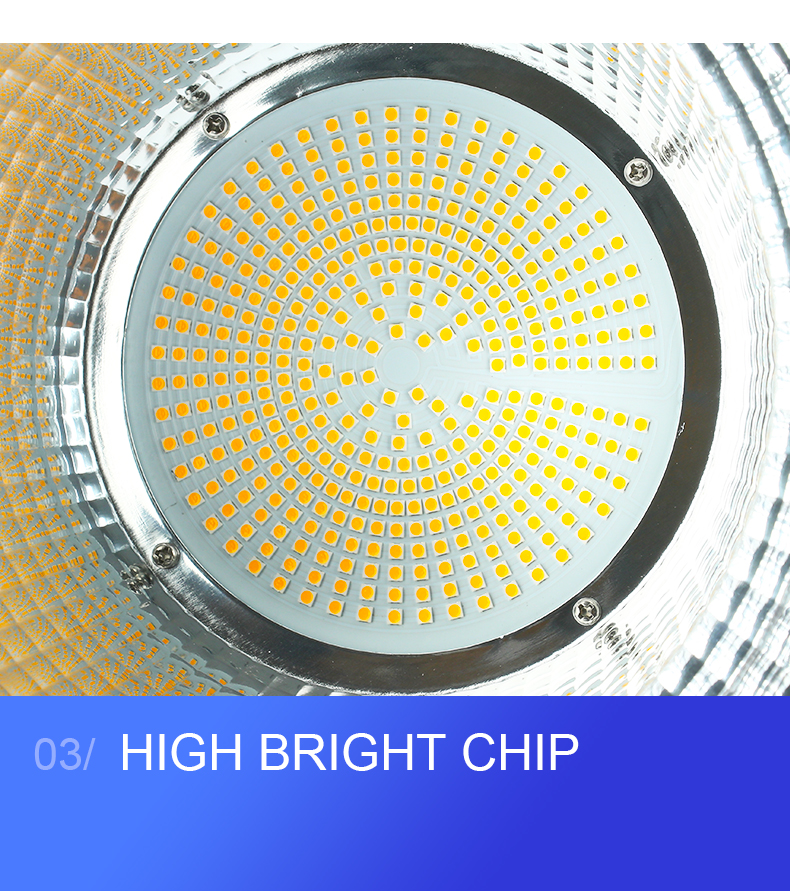

High bright SMD 3030 LED Chips, whole light more than 130lm/w.
Low working temperature less than 60℃.

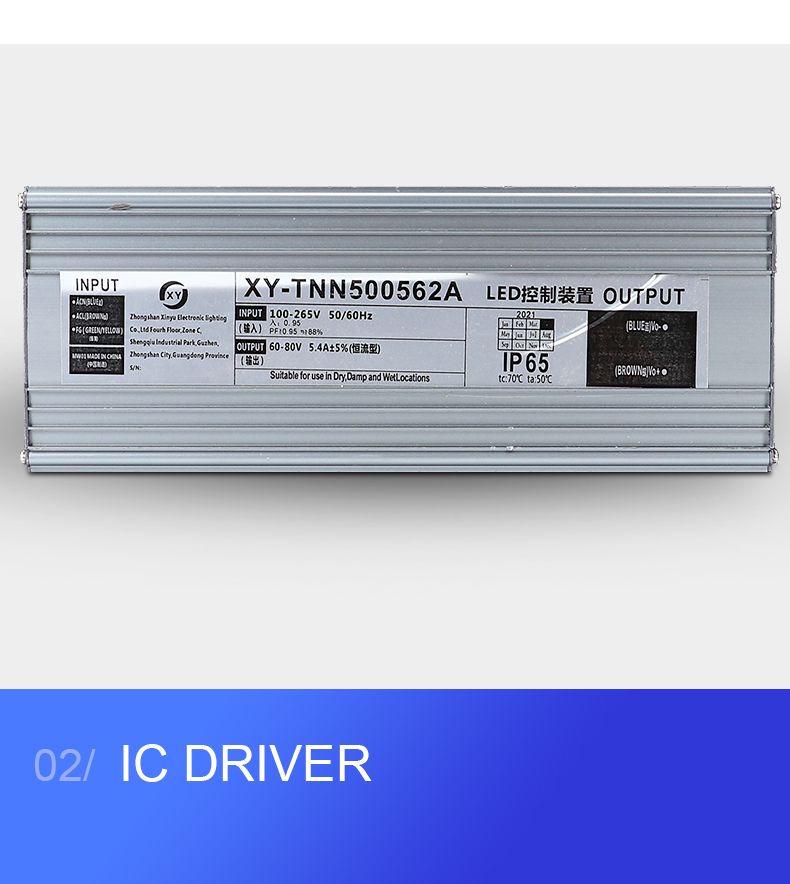

Nedar and Meanwell driver for option.

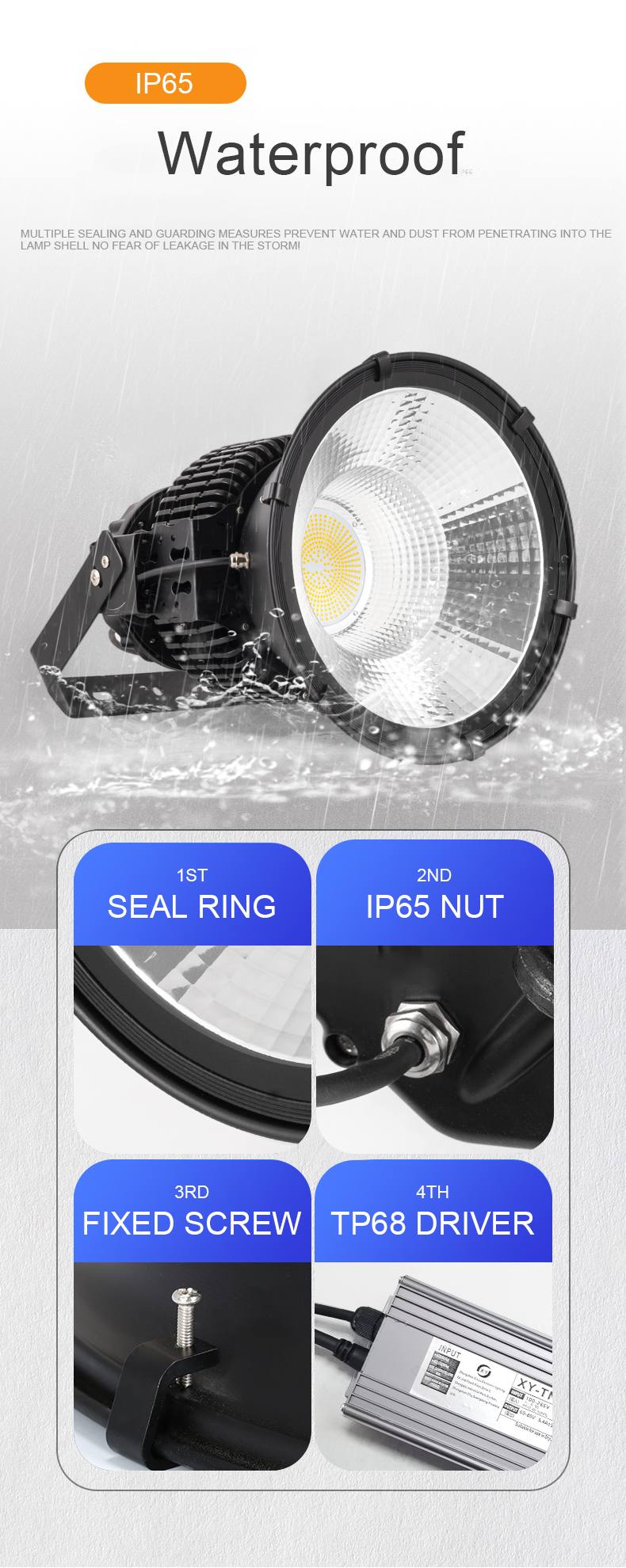

Waterproof IP66 design, good working at damp & wet place.
Four dimensions. Lighter weight and smaller volume, save freight cost.

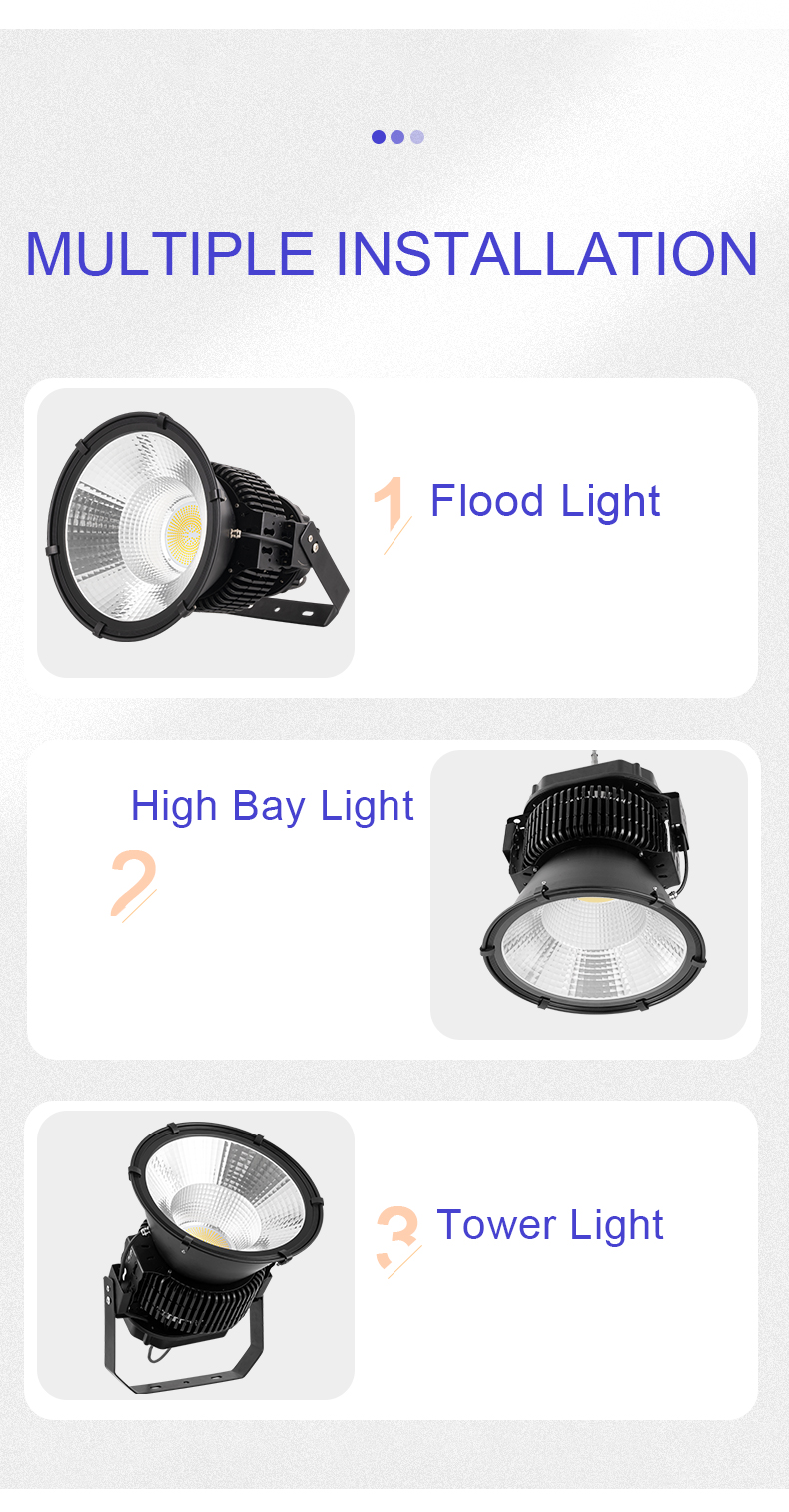

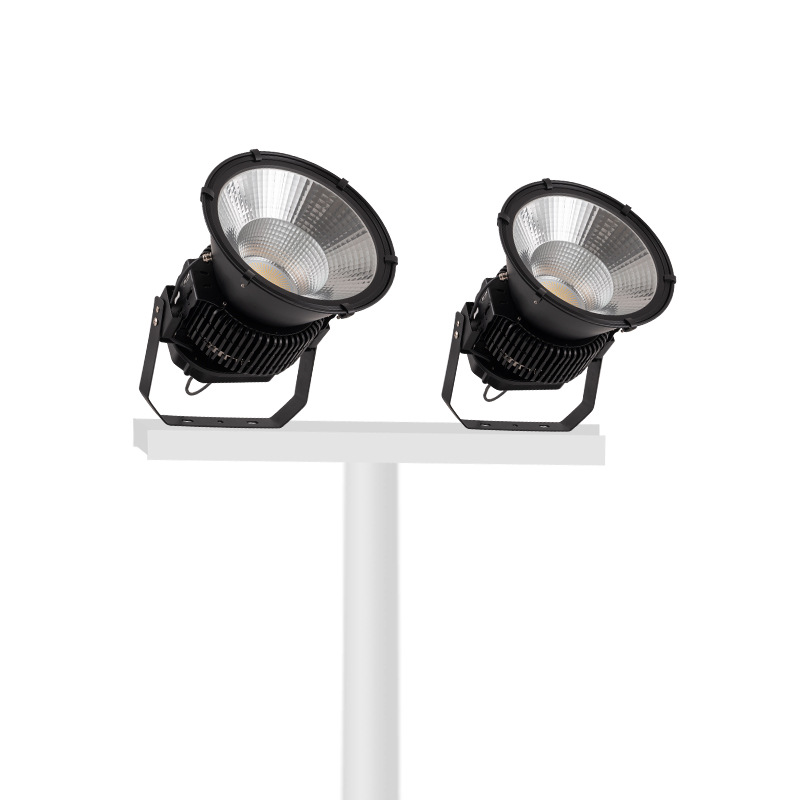

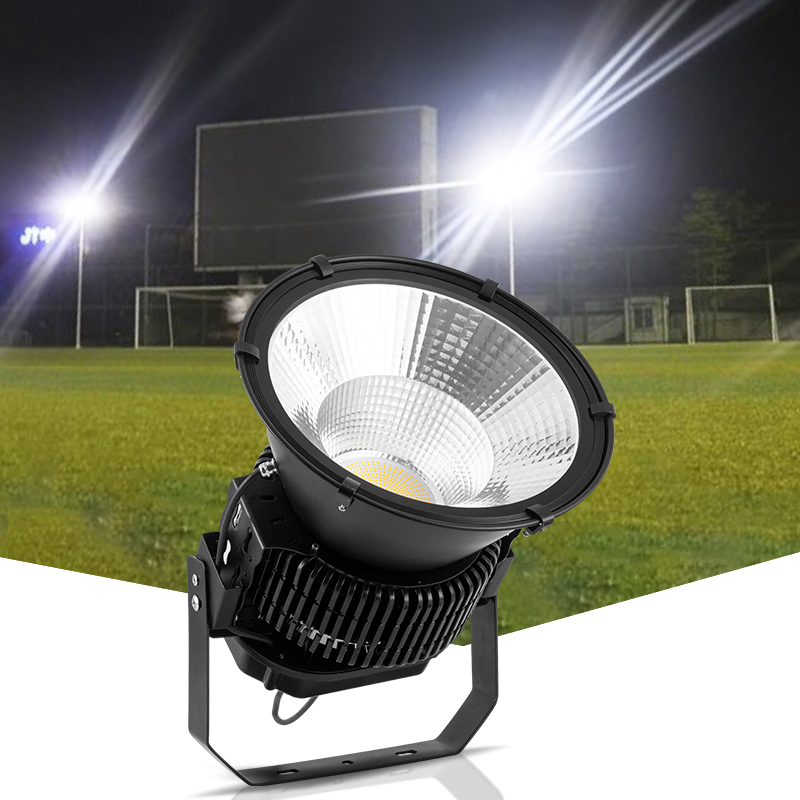

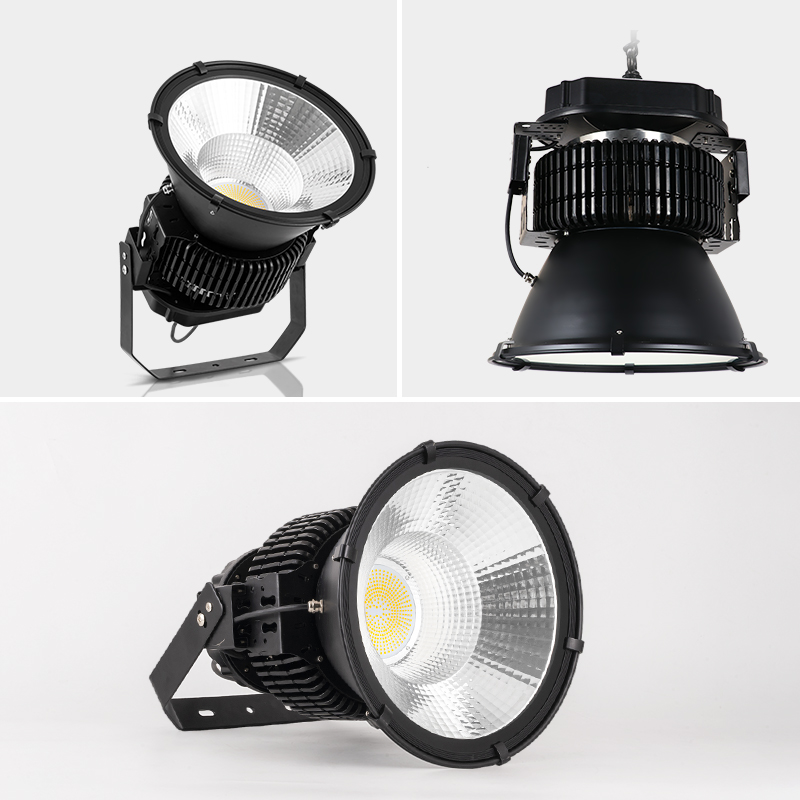

Two installations: Bracket & Hooking Hang.
LEDs LM79/LM80/IES reports available.
Driver ETL/CE/RoHS/FCC certification.
3/5/7 years warranty Option.

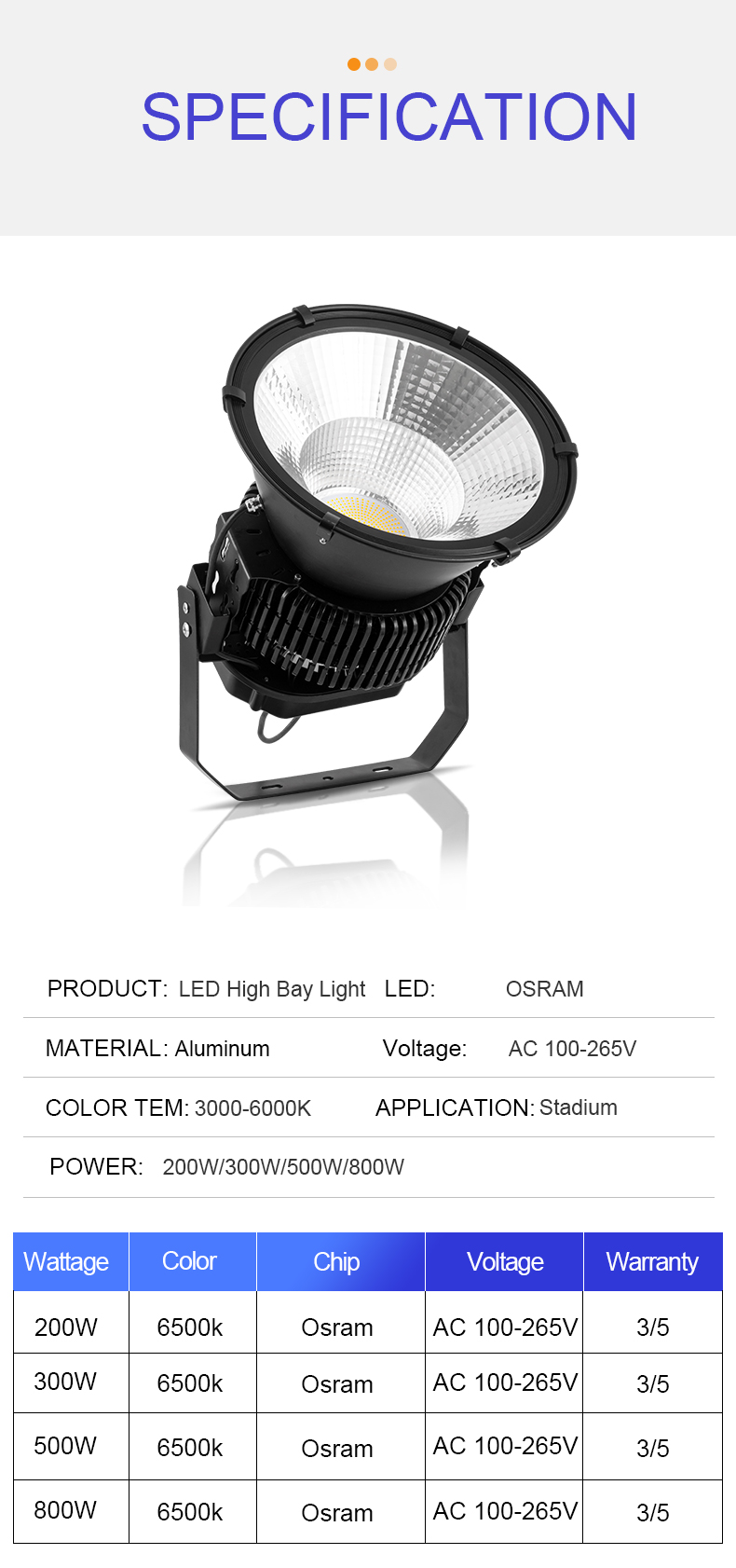

| Model No. | WL-UFO-60 | WL-UFO-80 | WL-UFO-100 | WL-UFO-120 | WL-UFO-150 | WL-UFO-200 | WL-UFO-250 |
| Wattage | 60W | 80W | 100W | 120W | 150W | 200W | 250W |
| Lumens | 7800LM | 10400LM | 13000LM | 15600LM | 19500LM | 26000LM | 25000LM |
| Dimensions | Φ245*150mm | Φ280*150mm | Φ400*150mm | ||||
| Efficacy | 130LM/W | ||||||
| LED Chips | 3030smd | ||||||
| Input Voltage | AC100-277V, 50-60Hz | ||||||

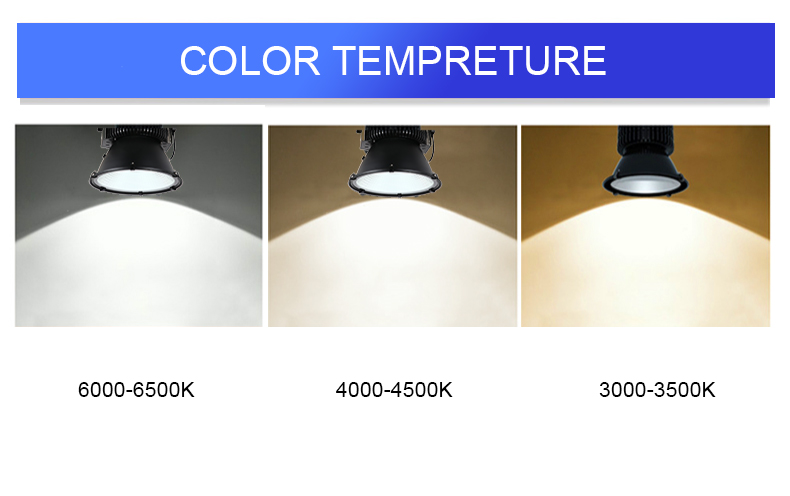

| Color Temperature | 2700~6500K (Option) | ||||||
| CRI | >70 | ||||||
| Power Factor | >0.95 | ||||||
| Beam Angle | 60°, 90°, 120° | ||||||
| Life Span | 50,000 hrs | ||||||
| Mounting Options | Bracket & hooking hang | ||||||
| Material | Aluminum alloy | ||||||
| IP Grade | IP66 | ||||||
These high bay lights feature highly efficient SMD 3030 LED Chips, delivering a total luminous efficacy of more than 130 LM/W for superior brightness and energy savings.
Yes, the fixture is designed with a waterproof IP66 rating, ensuring stable and safe operation in wet, damp, and high-humidity environments.
These lights support two versatile installation methods: Bracket mounting and Hooking Hang mounting, accommodating different ceiling setups and installation requirements.

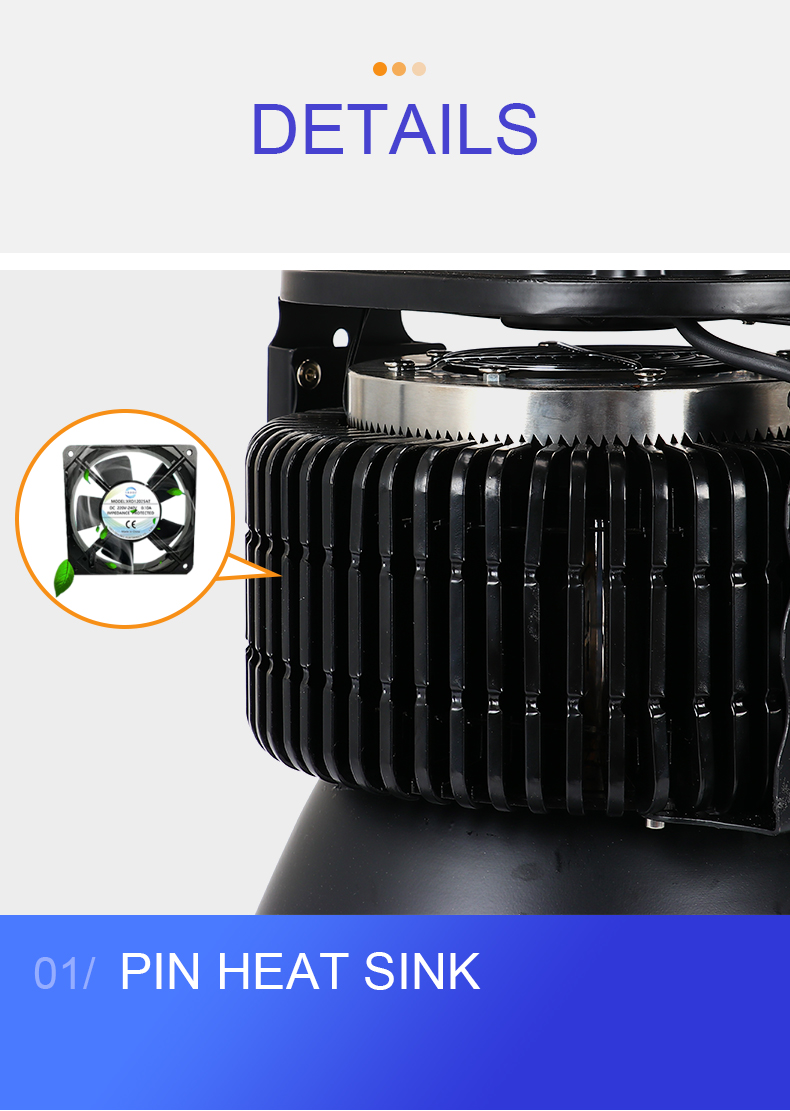

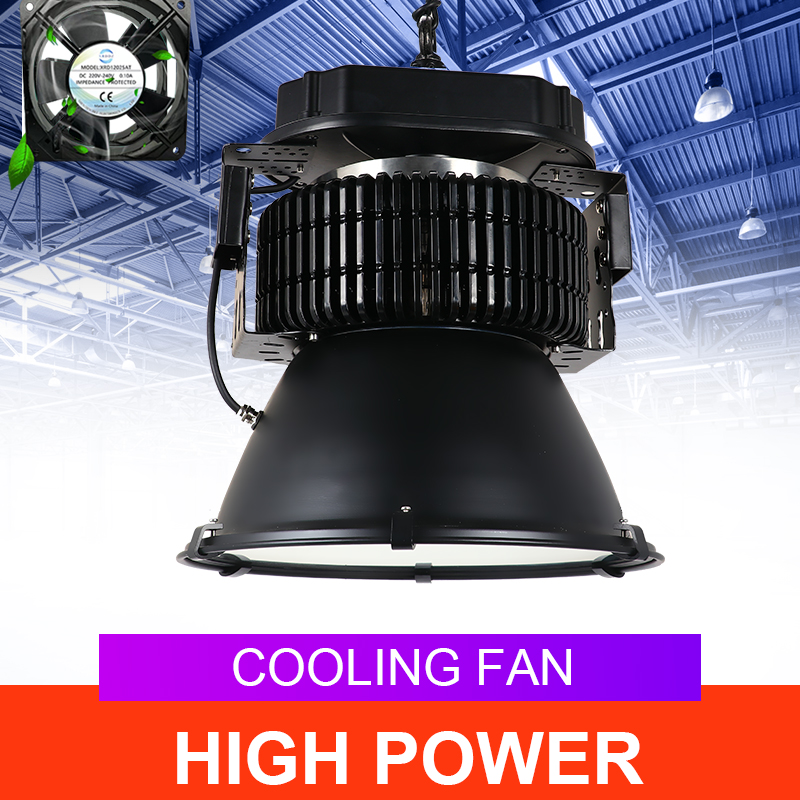

The hollow heat sink design improves airflow and heat dissipation. It keeps the operating temperature below 60℃, which protects the components and extends the lifespan up to 50,000 hours.
The drivers (with Nedar and Meanwell options) have ETL, CE, RoHS, and FCC certifications, ensuring high safety, reliability, and compliance with international standards.
We provide flexible warranty options of 3, 5, or 7 years depending on your specific project requirements and performance expectations.
