Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Send Inquiry

Product Description

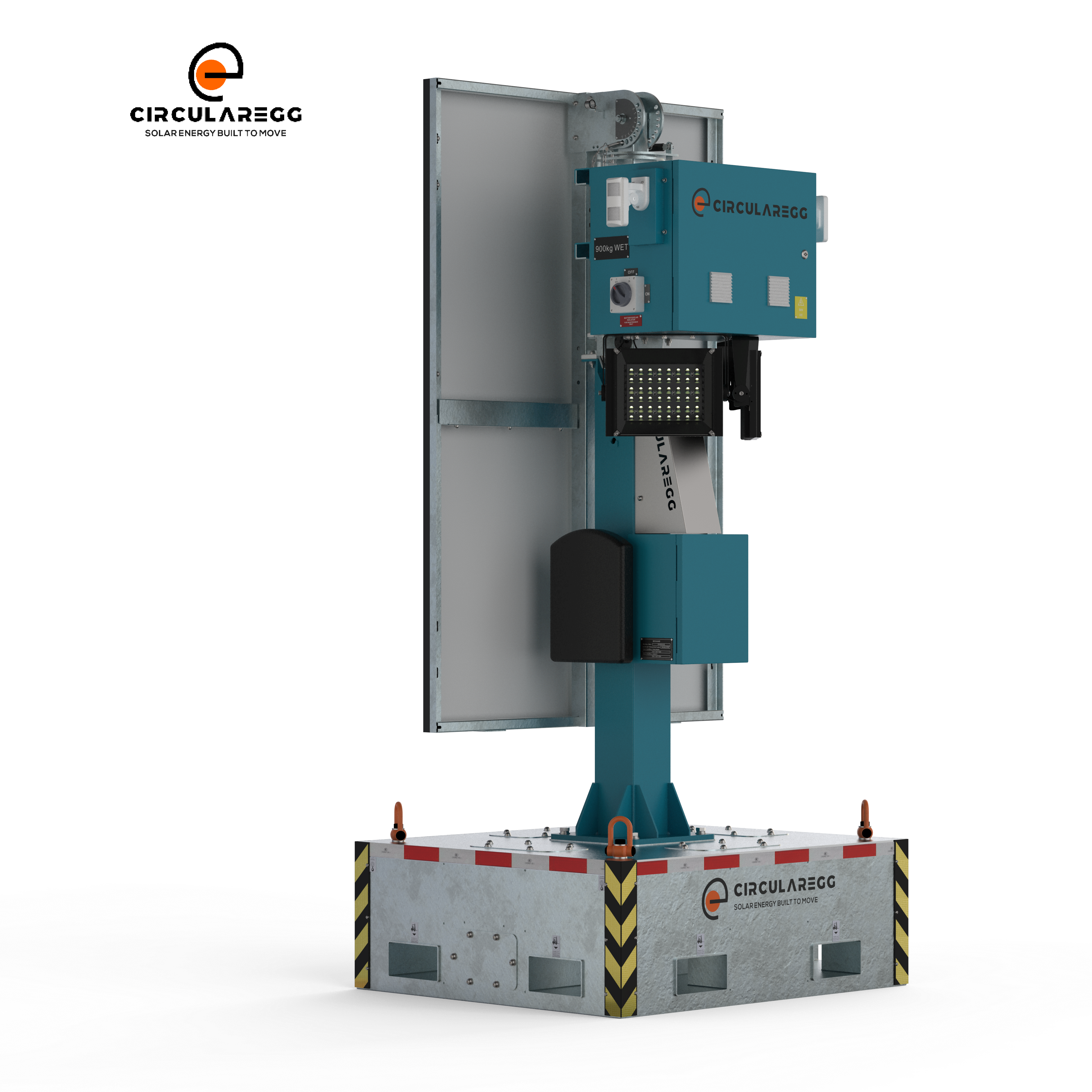

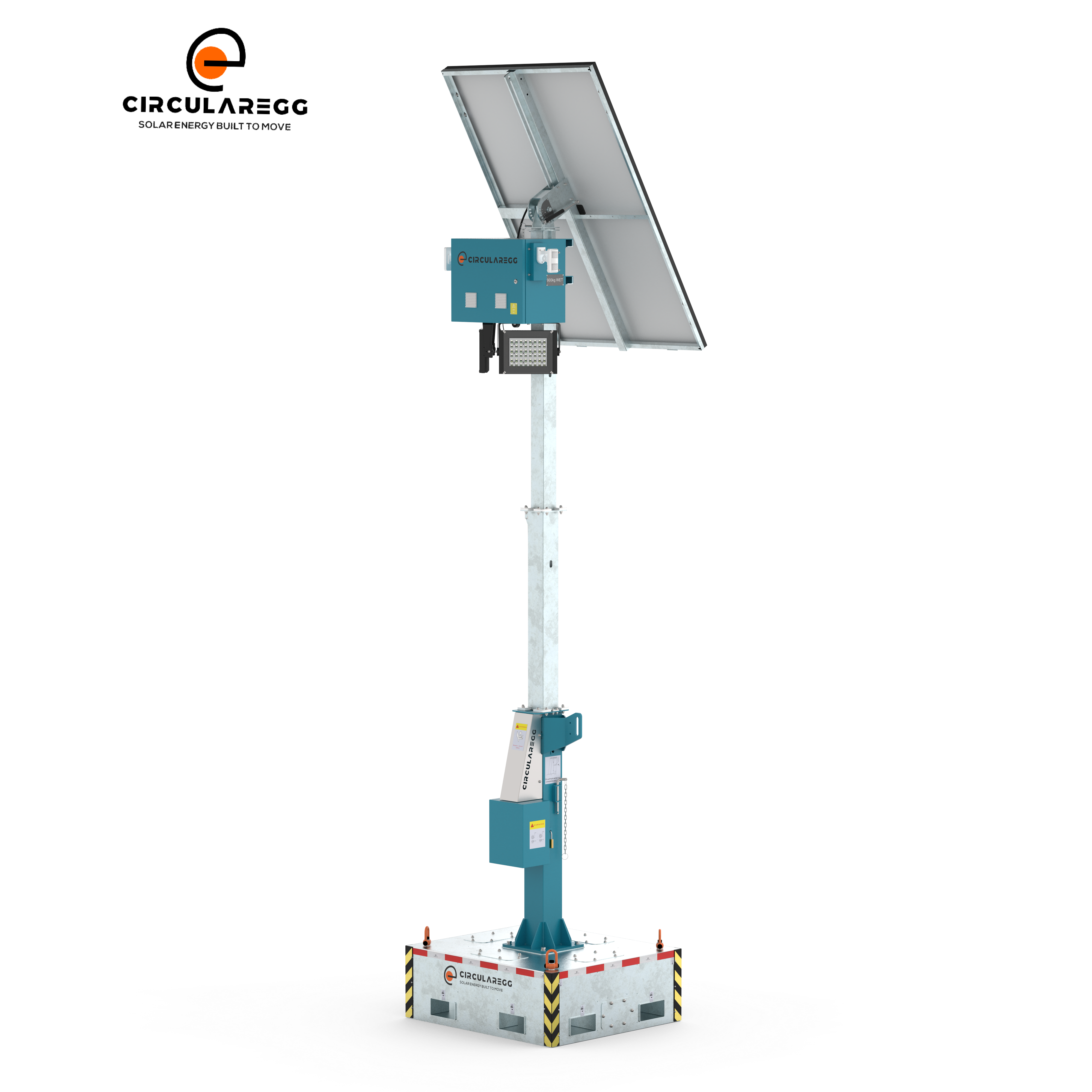

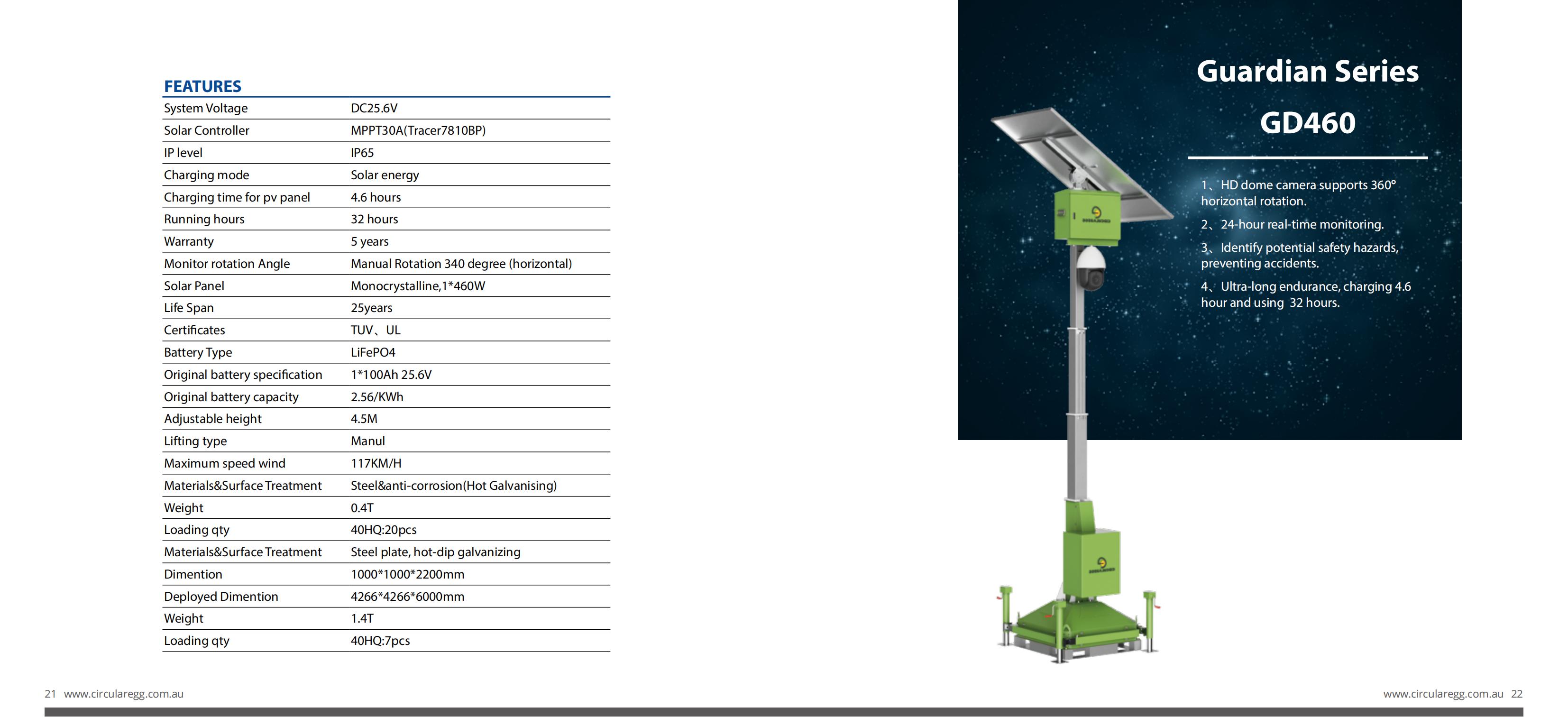

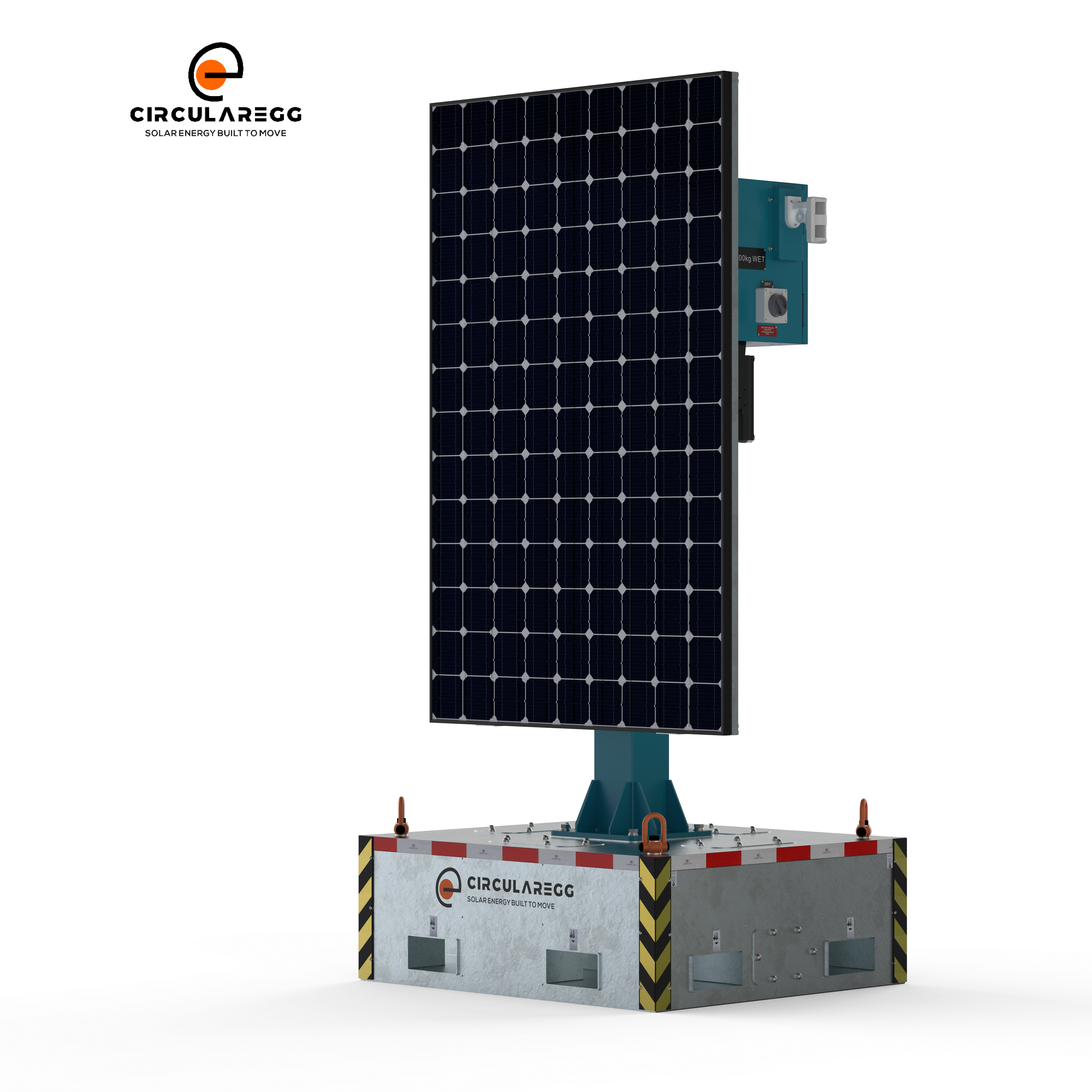

Solar Lighting Camera Illumination Tower CCTV System

System Features

☀️ Solar Panel: 1*230W Mono Solar Panel (Tilt 0°-90°, Rotation angle 340°)

🕹️ PV Controller: MPPT30A

🔋 LiFePO4 Battery: 1*100Ah 25.6V, 2.56/KWh (System Voltage: 25.6V)

🏗️ Mast: Hot-Galvanized anti-corrosion steel, adjustable height (4.5M) manual winch lifting, 117KM/H Windproof

⚡ Charging Time: 4.6 Hours via PV panel

⏱️ Running Time: 32 Hours

📏 Dimensions: 915*915*2410mm (Deployed: 2090*2090*5140mm)

⚖️ Weight & Loading: Weight: 800KGS / Loading qty 40HQ: 20pcs

Technical Specifications

Parameter	Specifications
Output Voltage (V)	110/240 V
Frequency	50/60 HZ
Battery Capacity	19 KWH/28KWH/43 KWH
Solar Panel Type	Monocrystalline Silicon
Solar Panel Wattage	4550 W / 6550W / 8*550 W
PV Controller	MPPT 60A, 95% efficiency / MPPT 80A, 95% efficiency
Battery Type	Lead-acid
Battery Pack	8200 AH, DC 12V / 12200 AH, DC 12 V
Communication Interface	RS-485
Output Port	110A AC outlet + 24A AC outlets + 1*5V USB
Axle Qty	Single
Tyre and Rim	15 Inch
Support Leg	4pcs, Manual

Product Gallery

Frequently Asked Questions

What type of battery options are available for this system?

The standard setup features a 1*100Ah 25.6V LiFePO4 battery (2.56/KWh). For higher capacities, configuration options include Lead-acid battery packs supporting 19 KWH, 28 KWH, or 43 KWH configurations (such as 8*200 AH or 12*200 AH at DC 12V).

How long does it take to charge, and what is the running time?

With standard solar input, it takes approximately 4.6 hours of charging time to fully power the system, providing an continuous operating running time of up to 32 hours.

What are the wind-resistance capabilities of the mast?

The mast is built with anti-corrosion, hot-galvanized steel and is engineered to withstand wind speeds up to 117 KM/H. The height can be manually adjusted up to 4.5 meters using a manual winch lifting system.

What power outputs does the system offer?

The system supports 110/240V output voltage at 50/60 Hz. The physical ports include one 10A AC outlet, two 4A AC outlets, and one 5V USB output port for flexible equipment integration.

How portable is the unit, and what are its dimensions?

The unit features a single axle with 15-inch tyres and rims, along with 4 manual support legs for easy transport and stabilization. The compact transport dimension is 915*915*2410mm, which deploys to a footprint of 2090*2090*5140mm. Up to 20 units can be loaded in a 40HQ container.
