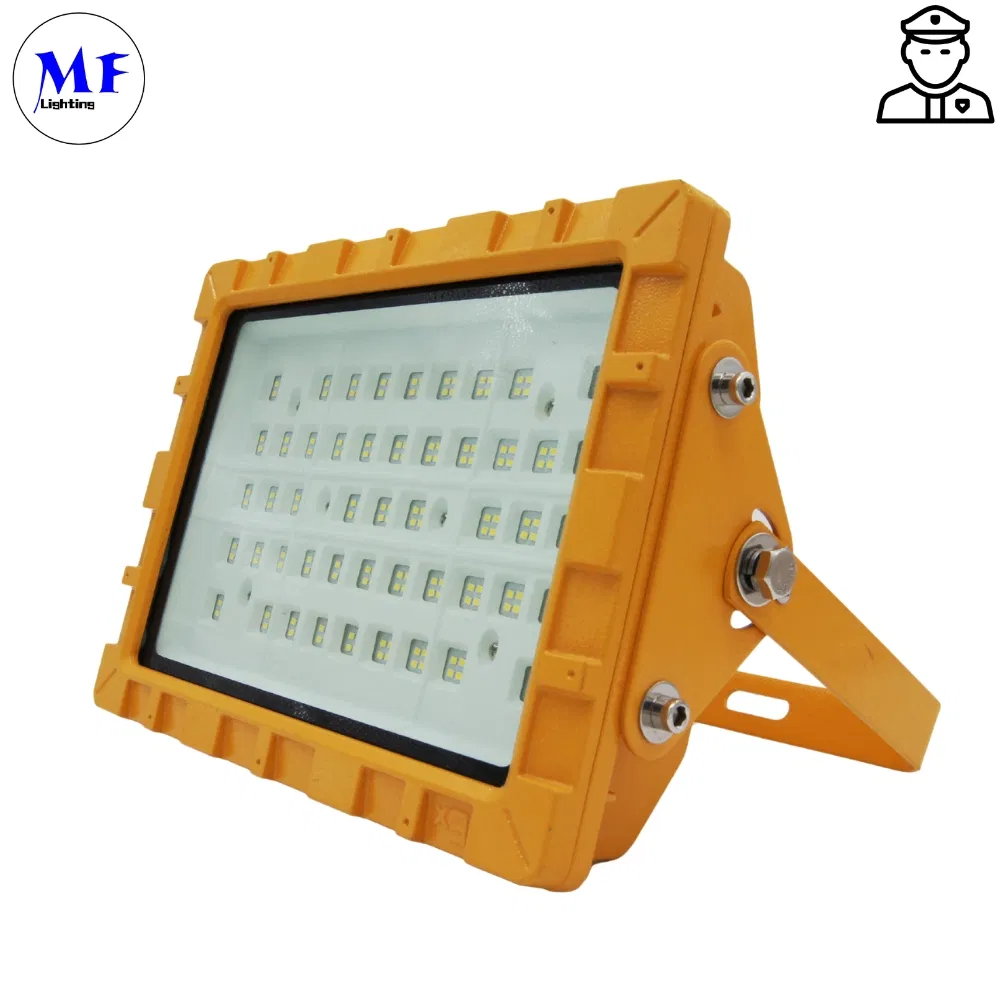

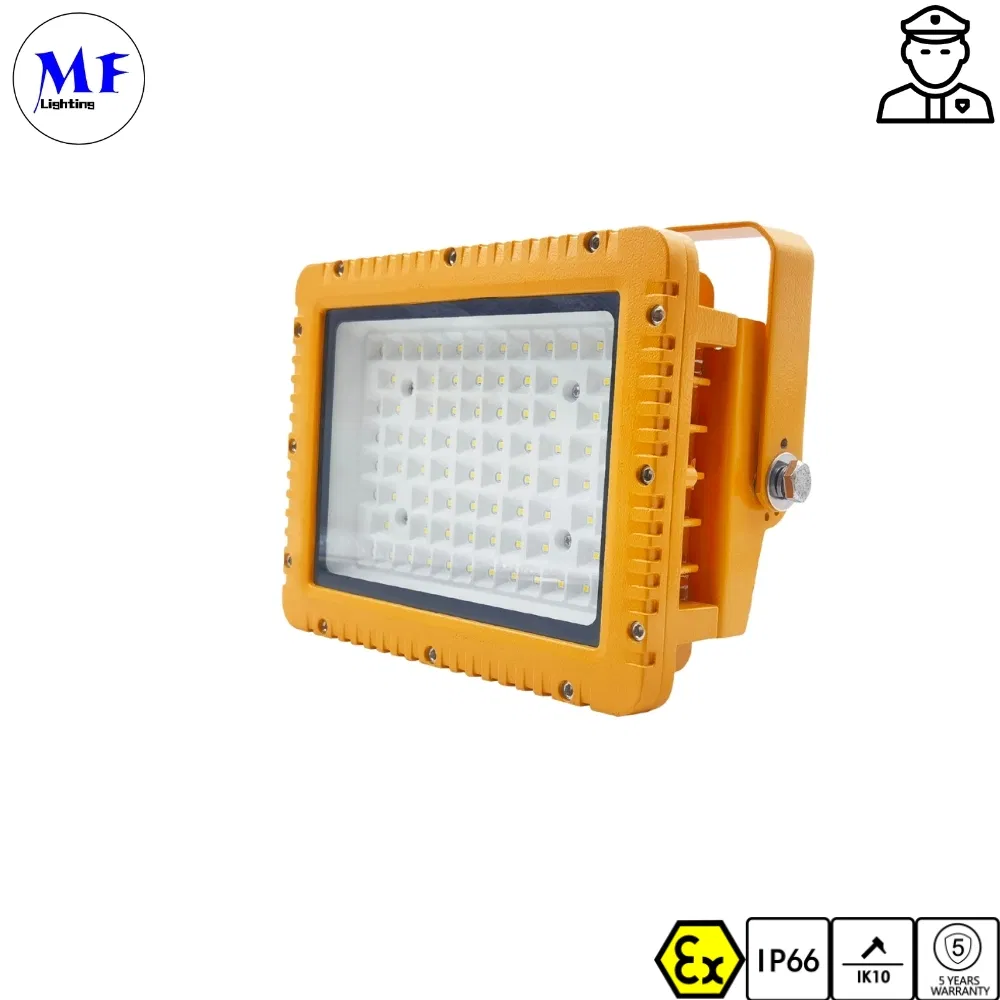

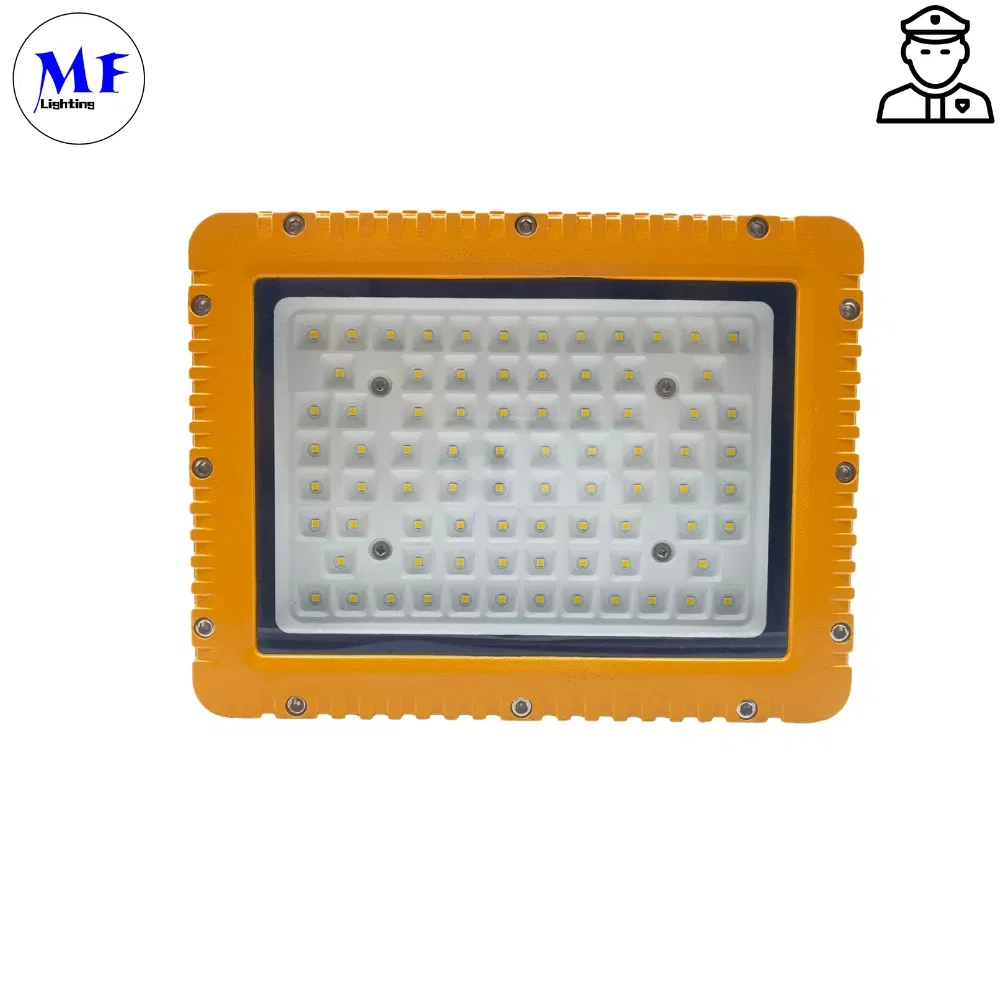

Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
1 / 5
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard

Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

  • Overview
  • Feature
  • Characteristic
  • Specification
  • Light Distribution
  • Dimension
  • Mounting
  • Application
  • Packaging

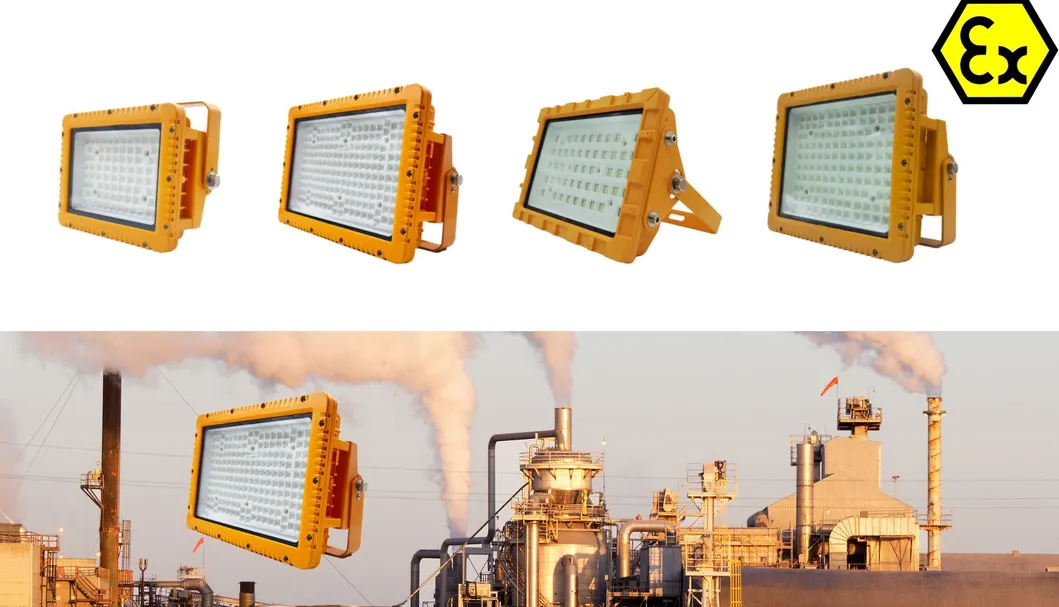

Explosion-Proof LED Flood Light

Atex EX IECEx IK10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and storage yard

Basic Info
Model NO.Security Man 5
Base TypeE26
Irradiated Area≥30m²
Input VoltageAC200-250V/DC12-48V
Power30W to 240W
Color Temperature2000K-7000K
LED Chips BrandCREE/Lumen/Atmospherics
CertificationCCC, CE, ETL, RoHS, SAA, Ex/Atex/TUV/ETL/GS/Iecex/IEC
CRI>80ra
MaterialAluminum+Stainless Steel+Tempered Glass
Luminous Flux140lm/W
IP RateIP66
Warranty5 Years
Lifespan>50,000hours
Working Temp-40°~+60°
PF0.95
DriverIEC Certified
Ik RateIk10
Transport PackageCarton Box
OriginChina
Production Capacity10000pieces/Year
Features
  • Working Temperature: -40°C ~ +55°C.
  • High quality SMT LED components.
  • Heavy-duty build with high impact resistance.
  • Replaceable LED board and drivers.
  • Integrated junction box for driver protection.
  • Dimmable and battery backup options available.
  • Marine rating powder coated finish treatment.
  • Up to 5 years standard warranty coverage.
  • Various installation configurations for different locations.
  • Glass lens or polycarbonate lens options for customizable beam angles.
Characteristics

Marking ATEX
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T80°C...T100°C Db IP66

Marking IECEx
Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T80°C...T100°C Db IP66

Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III

Marine Marking
U-L 1598, U-L1598A
ABS
Other Rating IP 66

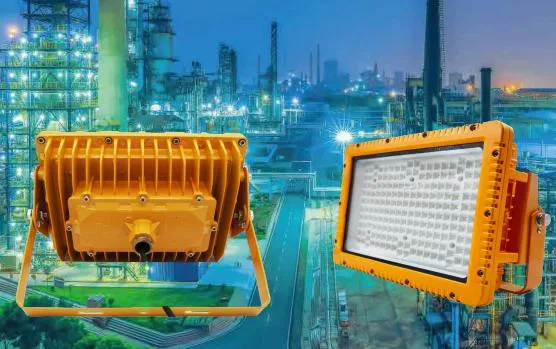

Explosion-Proof Certification Structure
Product certification banner
Specification
Product Number Wattage Color Temperature Voltage Lumens Warranty CRI Emergency Time
EX-30WFL3YZDA
Ex-50WFL3YZDA
Ex-6OWFL3YZDA		 30W
50W
60W		 2200K-7000K AC200-250V/
DC12-48V		 4200
6000
8400		 5 Years 70 3 Hours
EX-80WFL3YZDA
Ex-100WFL3YZDA		 80W
100W		 2200K-7000K AC200-250V/
DC12-48V		 11200
14000		 3 Hours
Ex-150WFL3YZDA
Ex-18OWFL3YZDA
Ex-200WFL3YZDA		 150W
180W
200W		 2200K-7000K AC200-250V/
DC12-48V		 21000
25200
28000		 3 Hours
EX-240WFL3YZDA 240W 2200K-7000K AC200-250V/
DC12-48V		 33600 3 Hours
Light Distribution

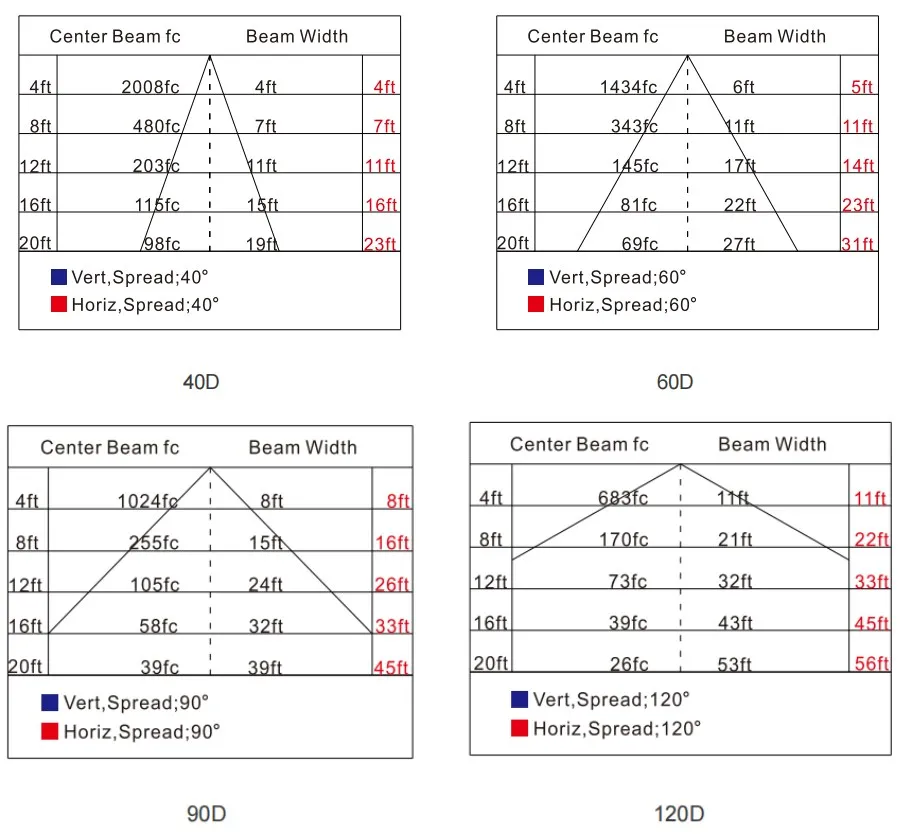

Light Distribution Curve
Dimension

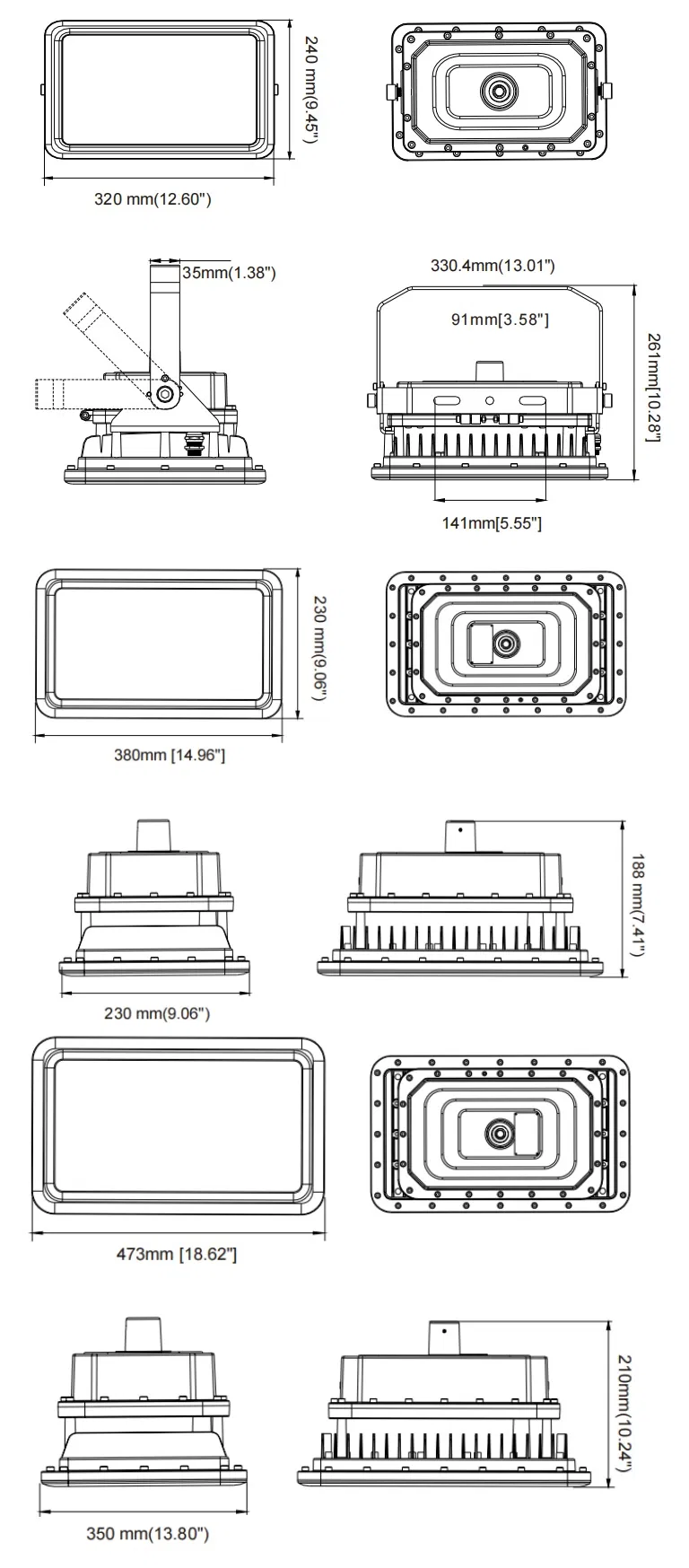

Product Dimensions
Mounting

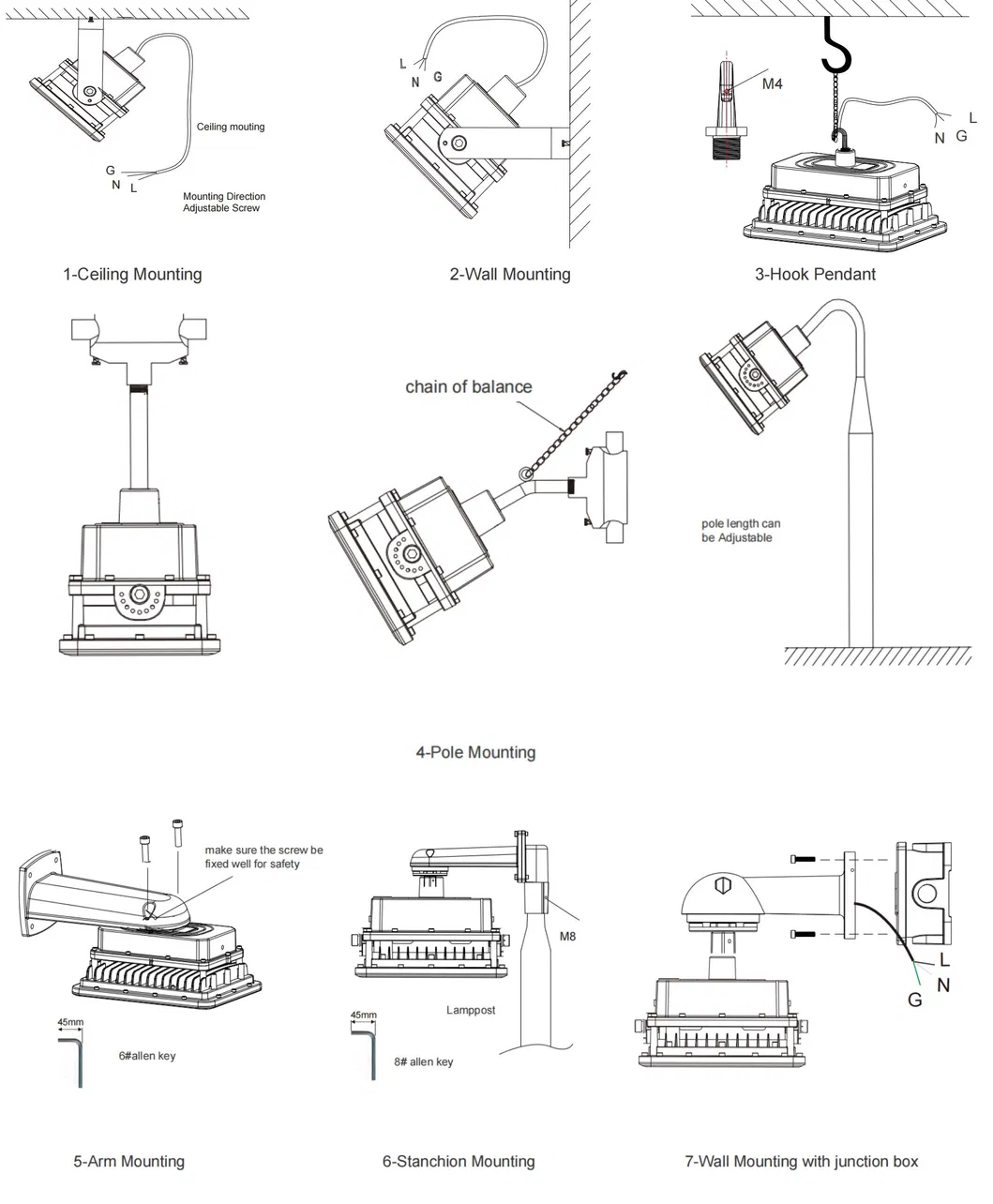

Mounting Methods
Application

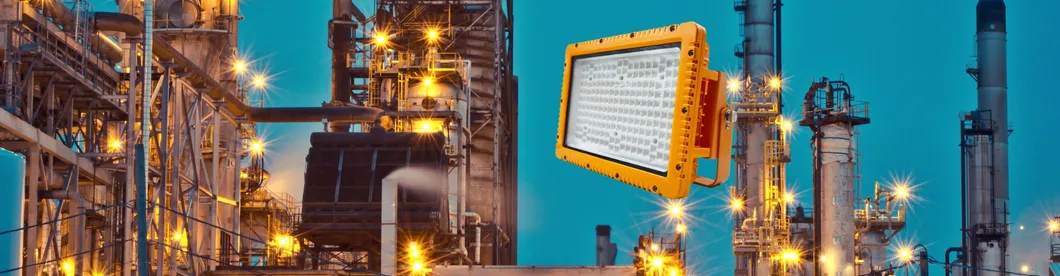

Application industrial facilities
Oil and Gas Industry
  • All petroleum production and refining
  • Petroleum loading and transportation
  • Petroleum storage and retail
  • LNG industry
  • All mining operations and service
Chemical Industry
  • All types of paint facilities
  • Chemical production and storage
Metal Treatment
  • Steel and aluminum factories
  • Pumping stations in any environment
  • Metal smelting, foundry and fabrication

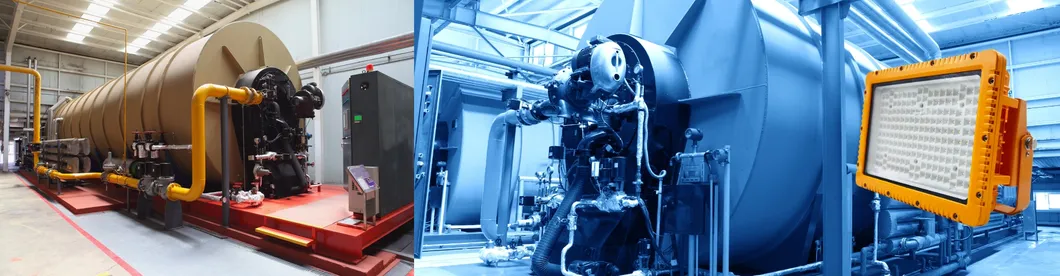

Chemical Industry Site Application

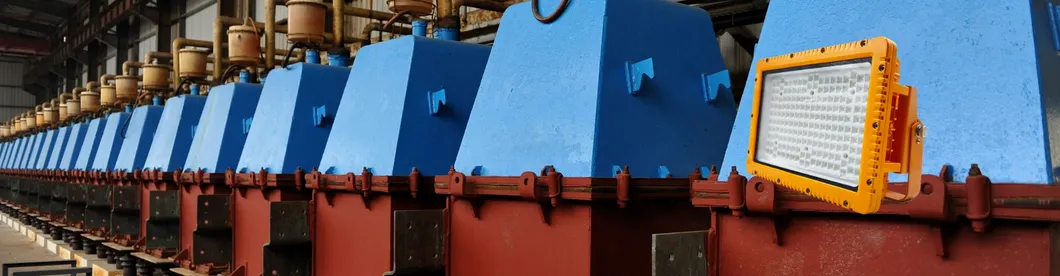

Offshore Application Image
Ocean, Marine and Aerospace Field
  • Ocean platform operation facilities and structures
  • Aerospace clean rooms and production lines
  • Ocean vessel operations
Food and Alcohol Industry
  • Flour and fine particle production and storage
  • Food and distilling production
  • Alcohol industry processes
Other High-Risk Locations
  • High humidity, high dust, high temperature, and vapor-heavy environments

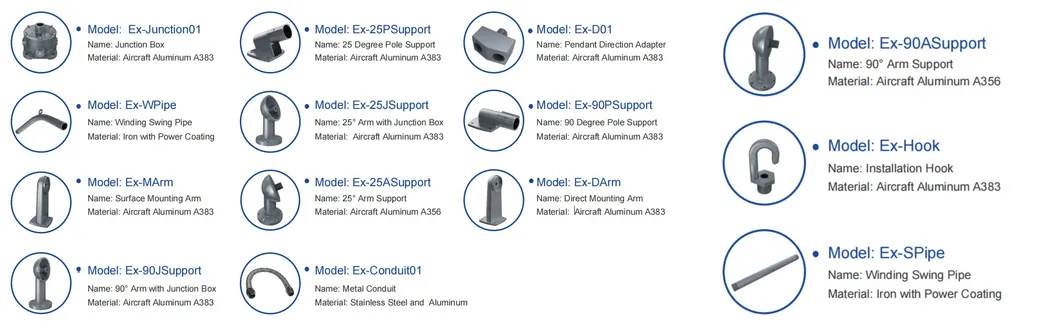

Complete Application Area Guide

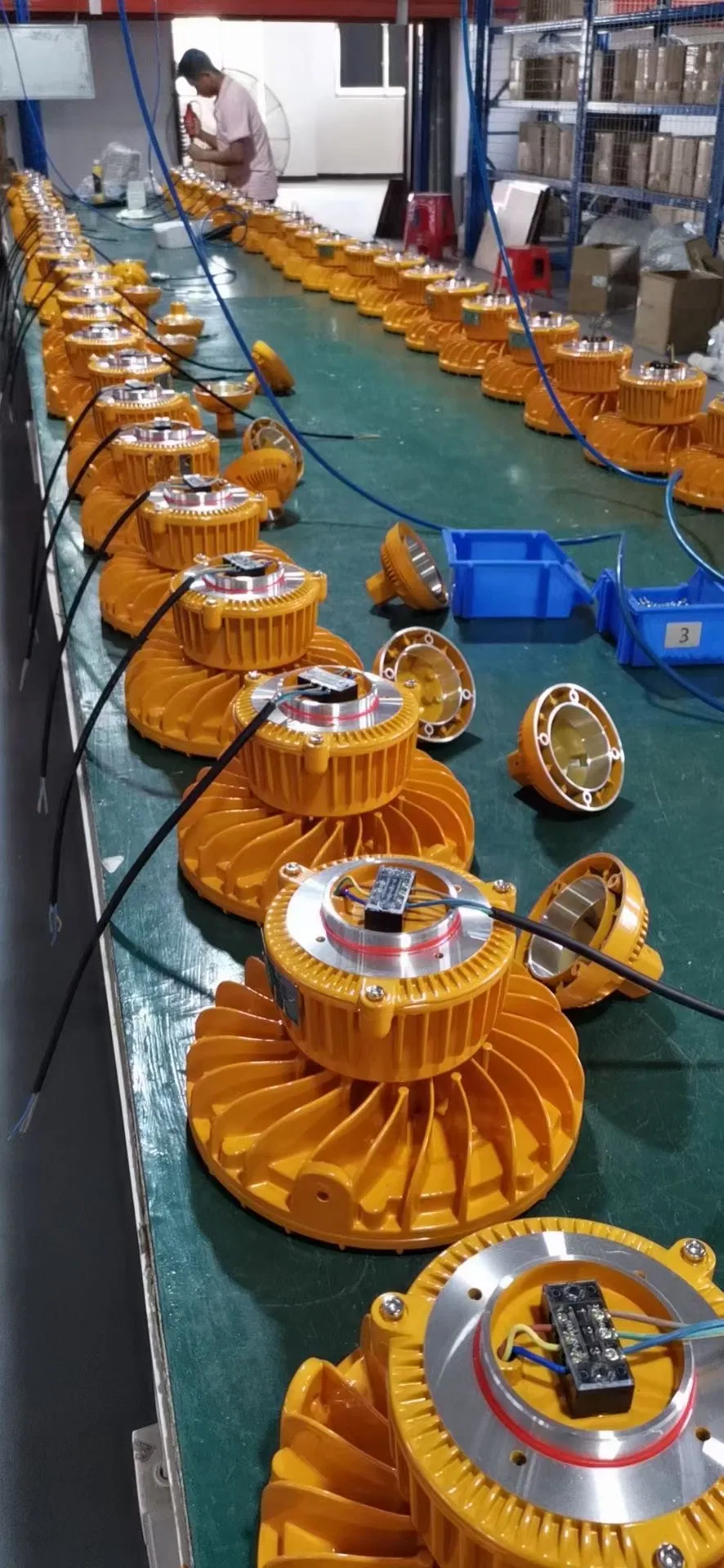

Explosion Proof Testing 1

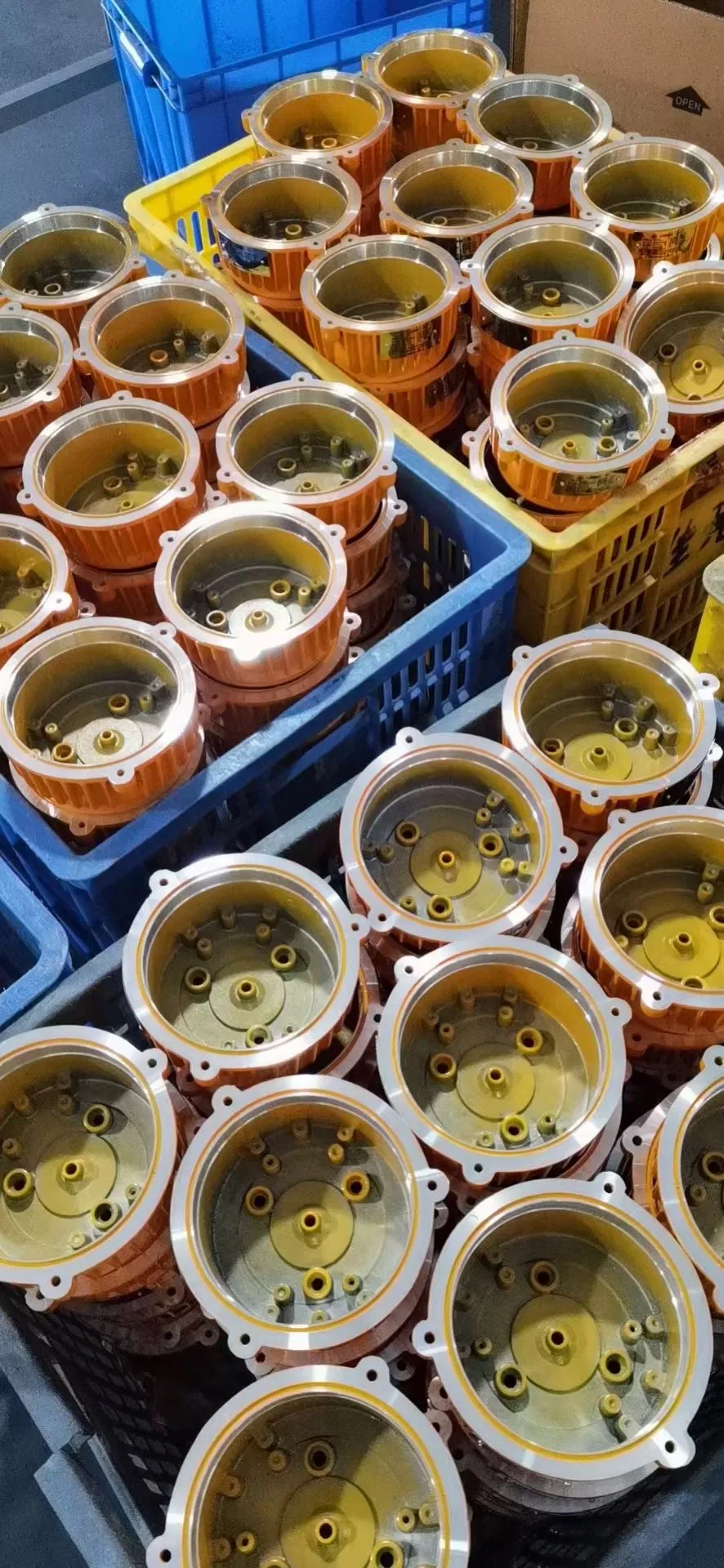

Explosion Proof Testing 2

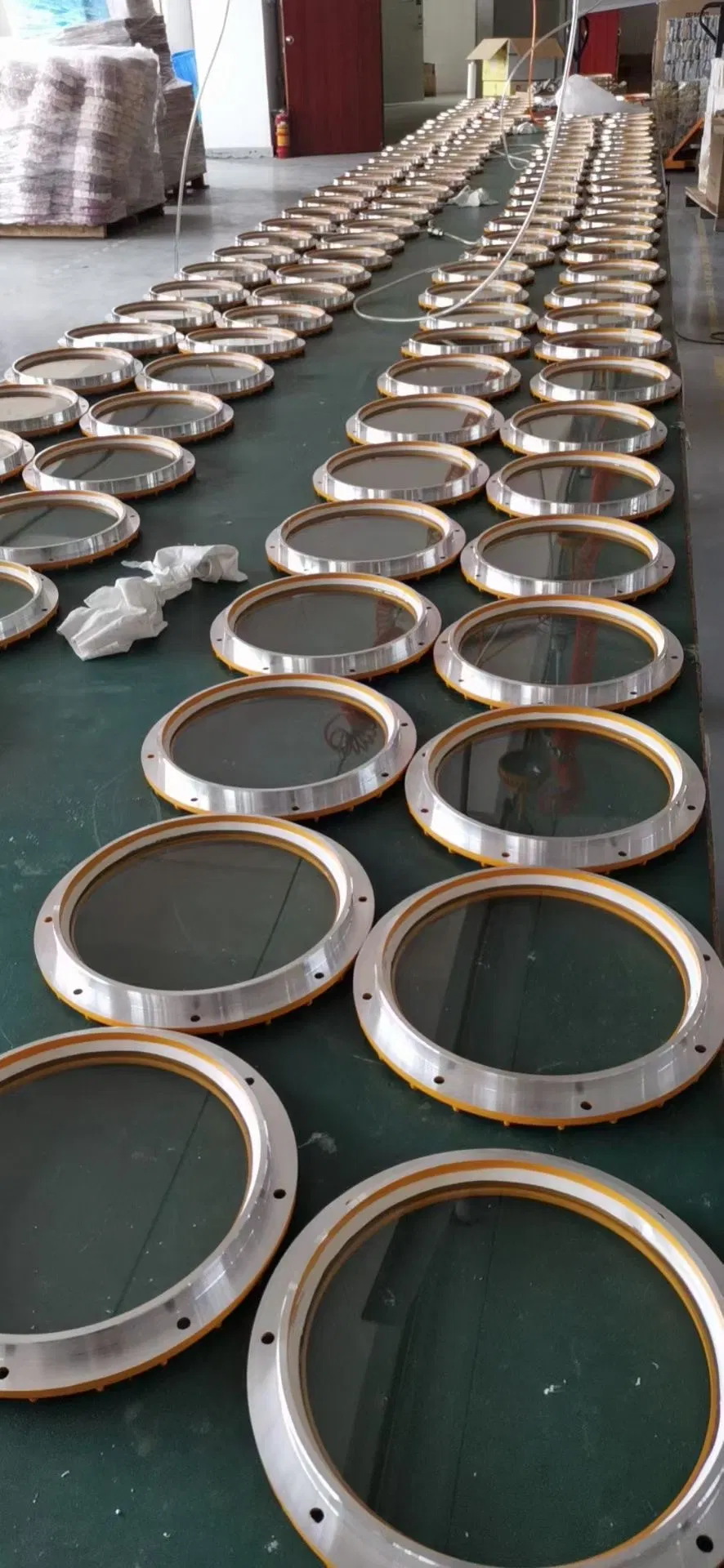

Explosion Proof Testing 3

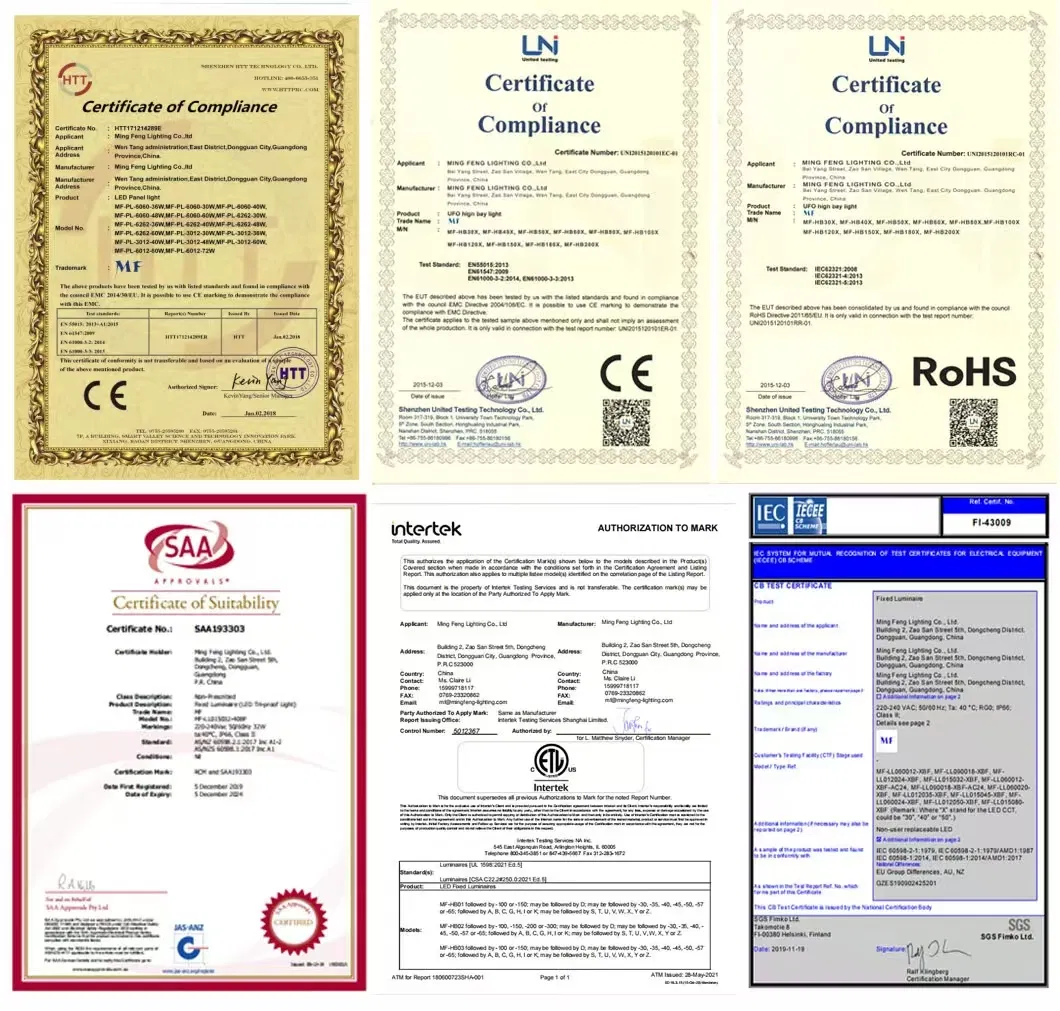

Safety Certifications and Standards
Packaging
Model Quantity / Carton Packing Size (mm) N.W (KG) G.W (KG)
M 1 460 * 490 * 290 12.5 15
Packaging Box View 1
Packaging Box View 2

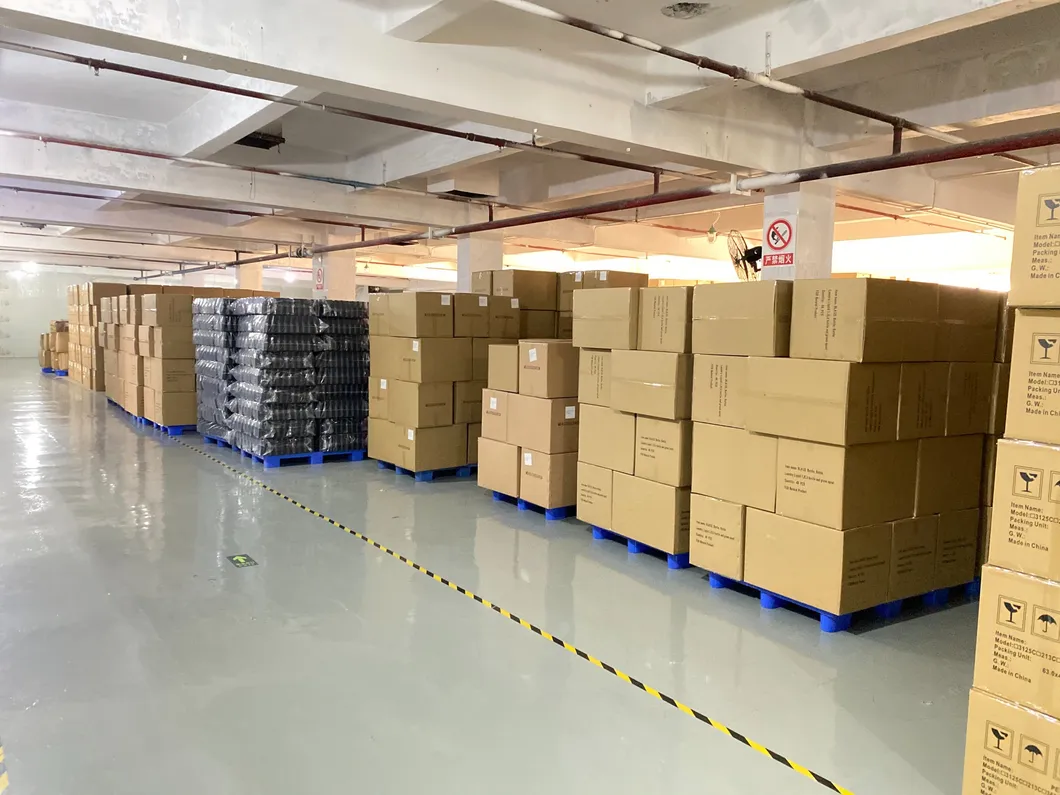

Inner Packing Setup 1
Inner Packing Setup 2
Inner Packing Setup 3
Production Facility Showcase
Quality Inspection Control
Frequently Asked Questions
What types of explosion-proof certificates does this LED floodlight hold?
This heavy-duty explosion-proof LED light holds robust global certifications including ATEX (II 2 G Ex eb mb IIC T6...T4 Gb / II 2 D Ex tb IIIC T80°C...T100°C Db IP66), IECEx, UL844 (for North American Class I Div 2, Class II Div 1 & 2, Class III environments), CE, RoHS, and ABS marine marking.
What are the primary applications for these ATEX flood lights?
These fixtures are specifically designed for hazardous, high-dust, high-humidity, and high-temperature environments. Standard locations include petroleum refineries, chemical processing plants, ocean vessel decks, offshore rigs, smelting plants, flour mills, and aerospace clean rooms.
Can these explosion-proof lights withstand extreme operating temperatures?
Yes, these industrial lights are engineered to operate reliably in extreme conditions, with an official working temperature rating ranging from -40°C up to +60°C (-40°F to +140°F).
What is the lifespan and warranty policy of the LED floodlights?
Constructed with high-durability SMT LED components, an aluminum-stainless steel frame, and tempered glass, these lights feature an expected lifespan of over 50,000 hours and are backed by a comprehensive 5-year replacement warranty.
Do you offer dimming or battery backup options for emergency setups?
Yes, dimming features and integrated emergency battery backup options are available. The emergency variants can sustain light operations for up to 3 hours during power outages.
