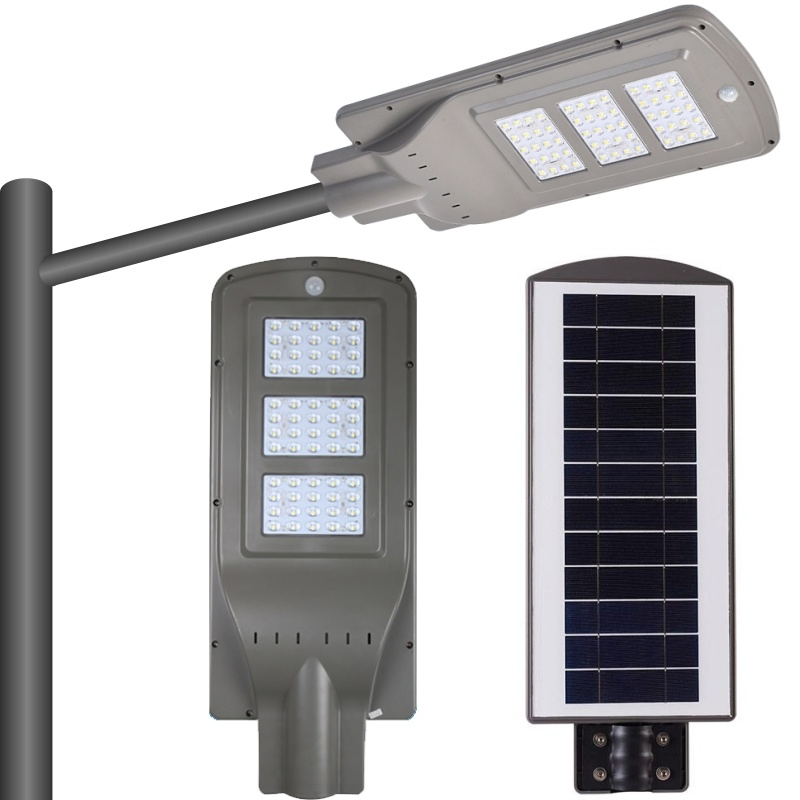

Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light
1 / 5
Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light
Plastic Integreted Polycrystalline Plaza Solar Street Light

Plastic Integreted Polycrystalline Plaza Solar Street Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
SMLN-20W-60W
Light Type
Solar
Color Temperature
Pure White
Power
20W-60W
Technics
Die Cast
Illumination Time
12h
Cell Type
LiFePO4 Lithium
Charging Time (H)
12
Usage
Garden, Street, Main Road, High Way
IP Rating
IP67
Certification
CE, RoHS, IEC Soncap
Voltage
12/24V
With Light Source
With Light Source
Mounting Height
5m
Distance Between Poles
15m
OEM/ODM/Customized
Available
Solar Panel
Mono or Poly High Efficiency A Grade
Install Height
9-12 M
Working Lifetime(Hour)
50000
LED Chip Brand
USA Bridgelux 210lm/W
Power Supply
Solar,Wind Power or Grid Power Hybrid Availabel
Dim/Non-Dim
Both Can Do
Approval
Ce/RoHS/Coc/IEC Soncap
Warranty(Year)
10 Years
Input Voltage(V)
DC12/24V
Lamp Luminous Efficiency(Lm/W)
180lm/W
Working Temperature(℃)
-40℃ - 60℃
Lighting Time
12 Hours
Transport Package
Carton, Pallet
Specification
1593X450X45mm
HS Code
9405409000
Production Capacity
20000/Year
Product Description
Plastic Integreted Polycrystalline Plaza Solar Street Light Layout

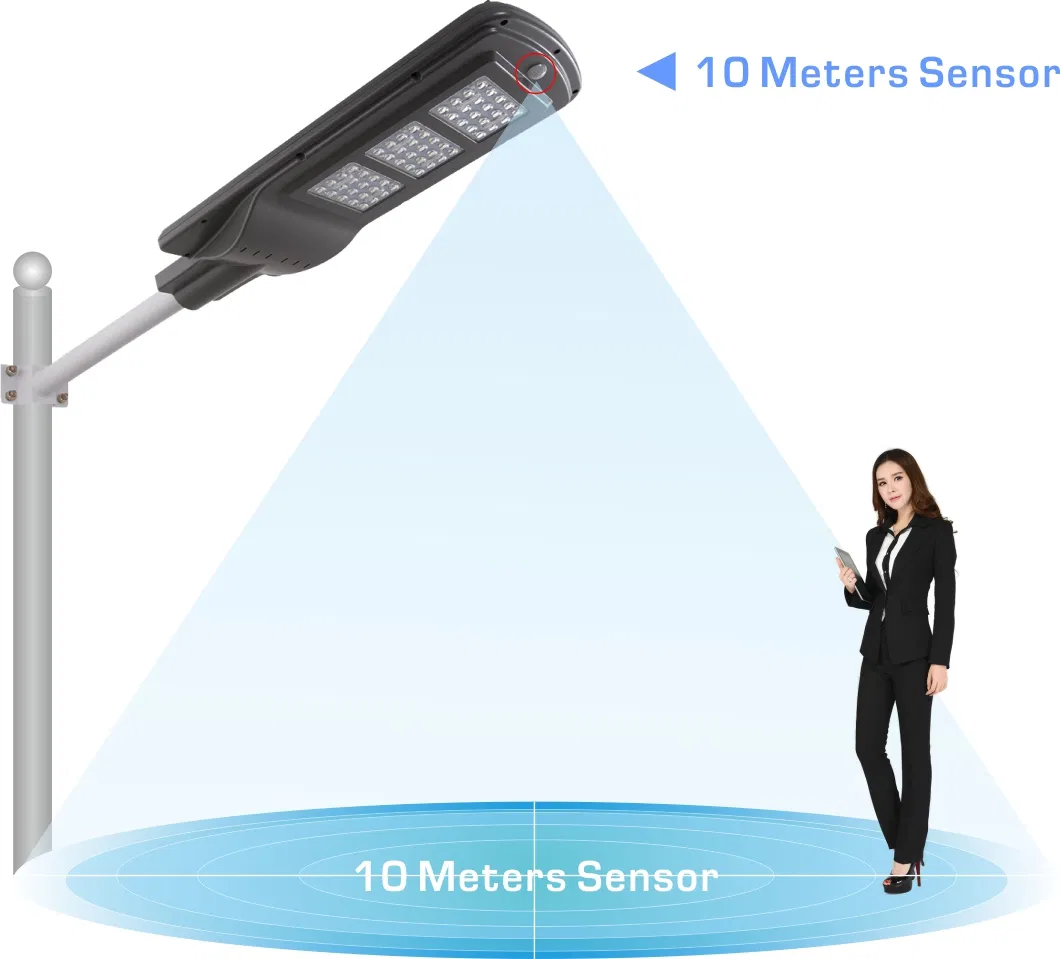

Plastic Integreted Polycrystalline Plaza Solar Street Light Dimensions

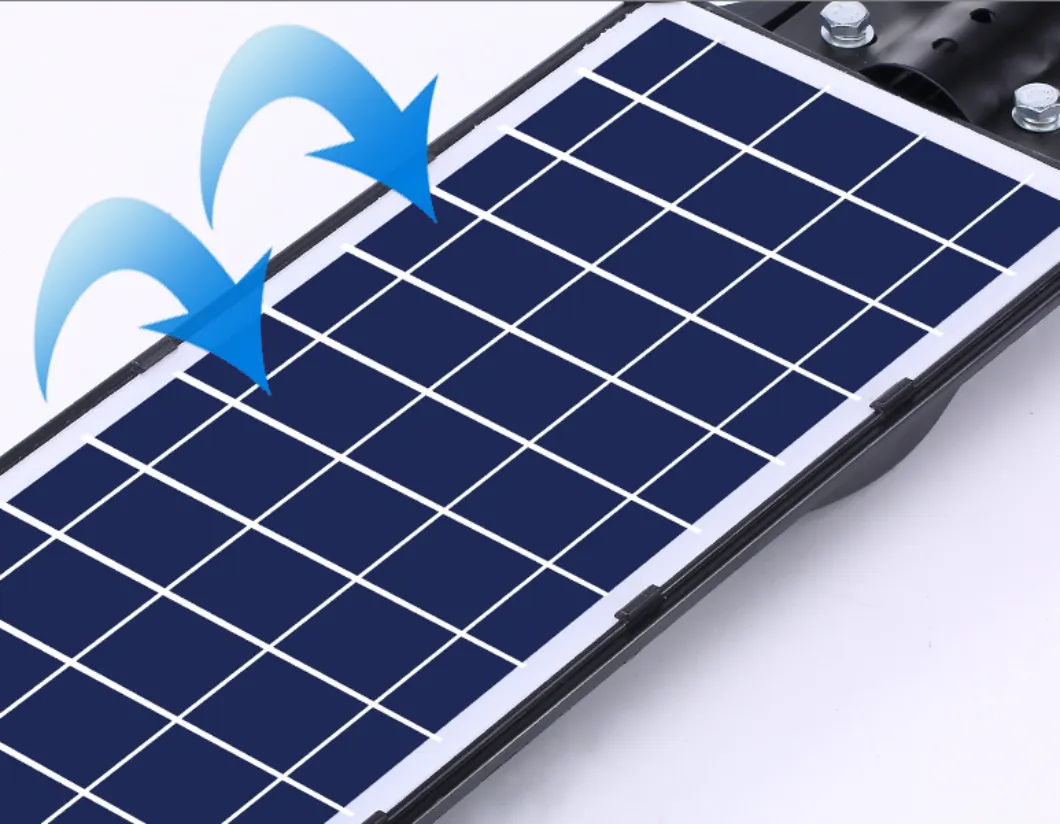

Plastic Integreted Polycrystalline Plaza Solar Street Light Structure

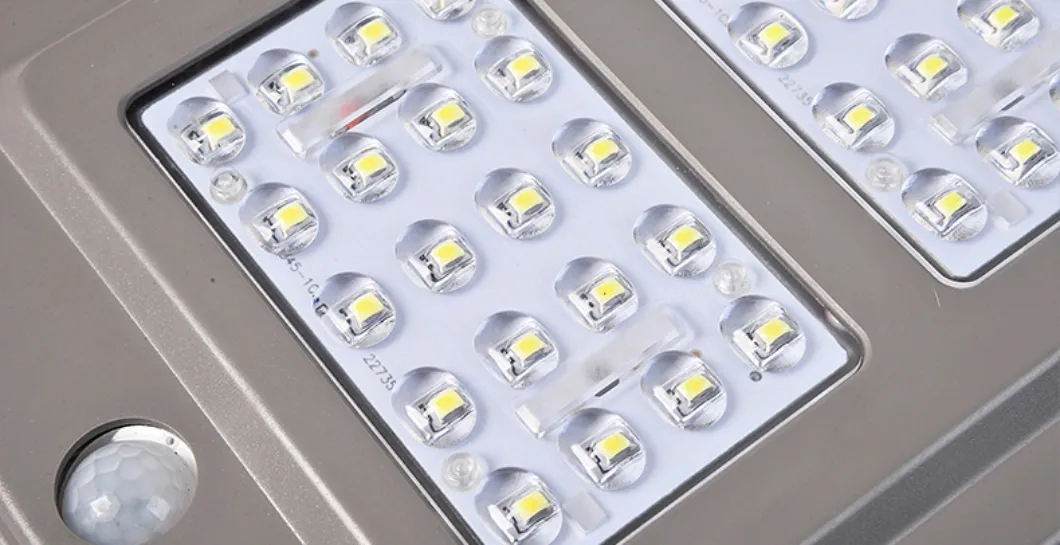

Plastic Integreted Polycrystalline Plaza Solar Street Light Application
Plastic Integreted Polycrystalline Plaza Solar Street Light Details
Plastic Integreted Polycrystalline Plaza Solar Street Light Setup
Specification

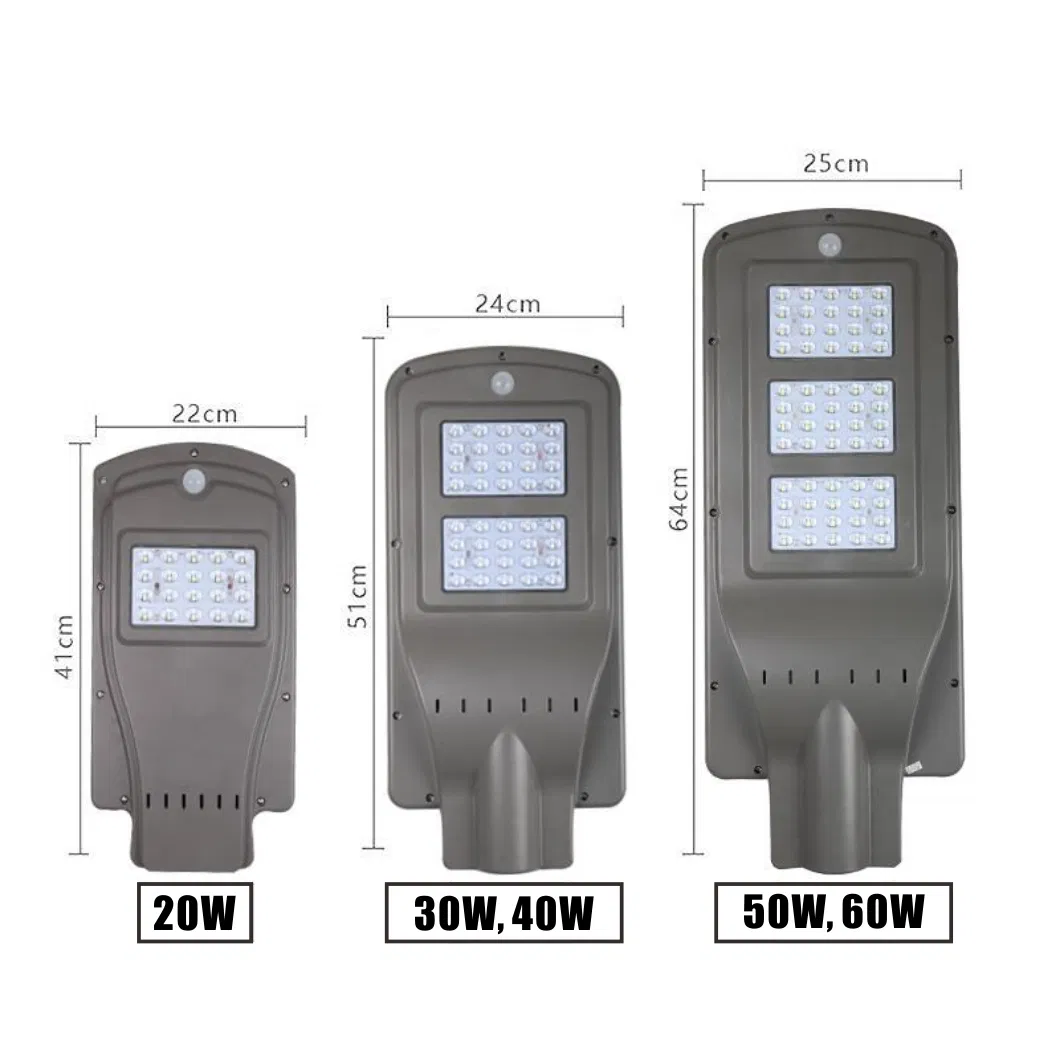

Plastic Integreted Polycrystalline Plaza Solar Street Light Specifications
Power 20W 30W 40W 60W 60W
LED 20pcs*1W SMD 40pcs*1W SMD 40pcs*1W SMD 60pcs*1W SMD 60pcs*1W SMD
Solar Panel 8W 6V, Poly silicon 12W/ 9V, Poly silicon 12W/ 9V, Poly silicon 15W 9V Poly silicon 15W 9V Poly silicon
Solar Panel Size 171*291mm 383*193mm 383*193mm 498*208mm 498*208mm
Battery 3.7V 6Ah, Li-ion battery 3.7V 9Ah Li-ion battery 3.7V 12Ah Li-ion battery 3.7V 16Ah Li-ion battery 3.7V 16Ah Li-ion battery
Working Time 6-8hours 12hours 12hours 12hours 12hours
Material ABS +Alu ABS +Alu ABS +Alu ABS +Alu ABS +Alu
Lamp Size 390*200mm 500*230mm 500*230mm 620*240mm 620*240mm
Lighting Area 40 square meters 60 square meters 60 square meters 80 square meters 80 square meters
⭐ Support Options Available
Free Sample • Free Project Design • Free Project Evaluation • Free Tender Support
Inquire Today for Project Customization and Pricing

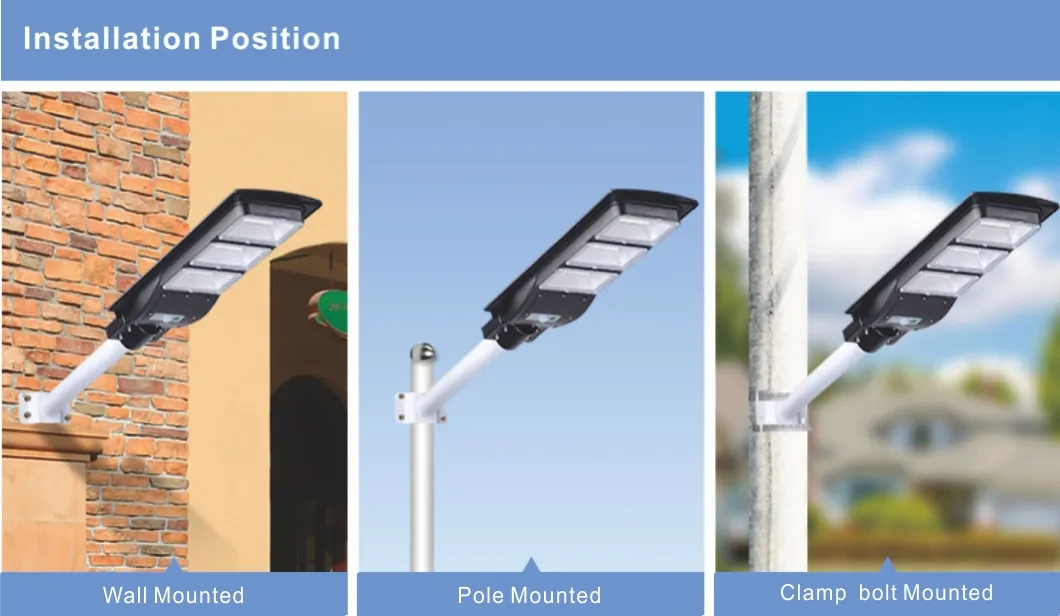

Plastic Integreted Polycrystalline Plaza Solar Street Light Component Detail
Plastic Integreted Polycrystalline Plaza Solar Street Light Installation Instructions
Frequently Asked Questions
What type of battery is used in these solar street lights?
These solar street lights are equipped with high-durability LiFePO4 Lithium batteries (available in 3.7V options from 6Ah up to 16Ah), engineered for long cycle lives and safe operation under high temperatures.
What is the IP rating and environmental durability of this light?
The product is rated IP67, which ensures outstanding waterproof and dustproof capabilities. It is designed to work reliably in severe weather conditions with a working temperature range of -40℃ to 60℃.
How long does the light operate on a full charge?
After charging for approximately 12 hours under optimal sunlight, the solar street light provides up to 12 hours of continuous illumination.
What are the recommended installation parameters?
The standard mounting height is 5 meters (and can range up to 9-12 meters depending on specific configuration demands). The suggested distance between installation poles is 15 meters.
Are OEM, ODM, and custom designs supported?
Yes, OEM/ODM and customized orders are fully supported to match specific project requirements, including variations in power configurations, solar panels, and light outputs.
What is the expected working lifetime of the LED light source?
Featuring premium USA Bridgelux LED chips with an efficiency of 210lm/W, the light source has a working lifetime of up to 50,000 hours, supported by robust system electronics.
