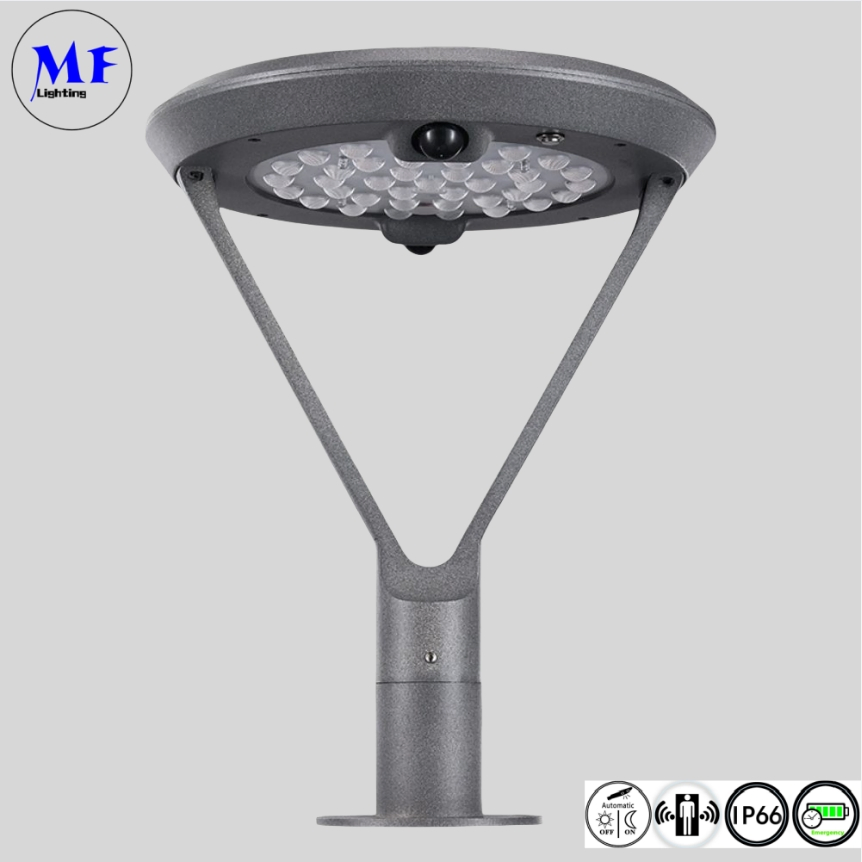

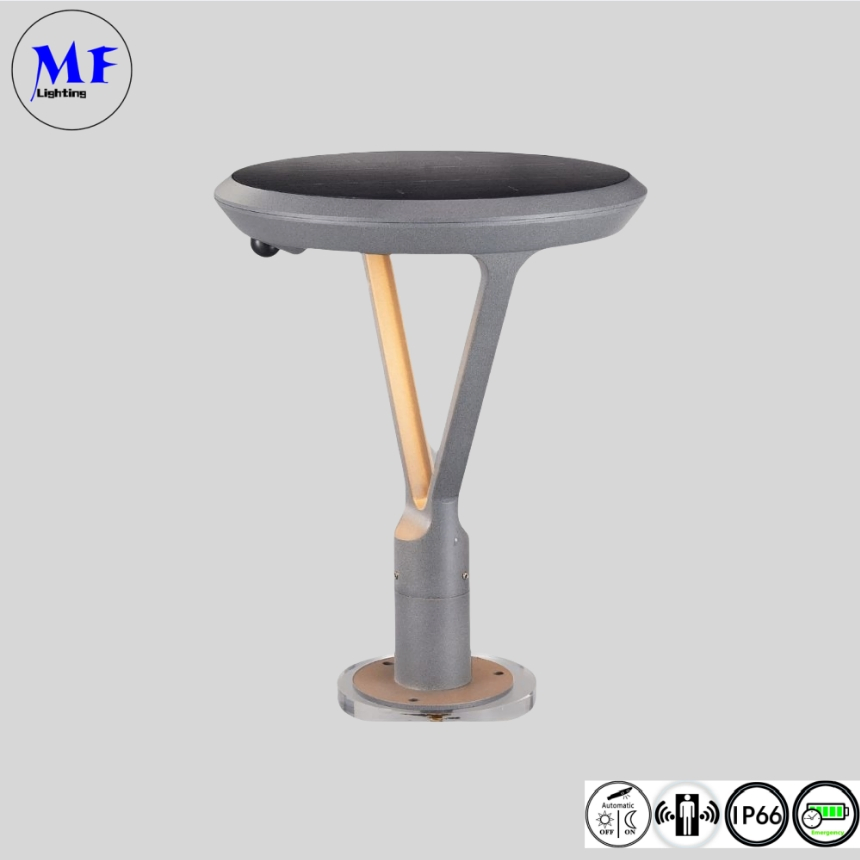

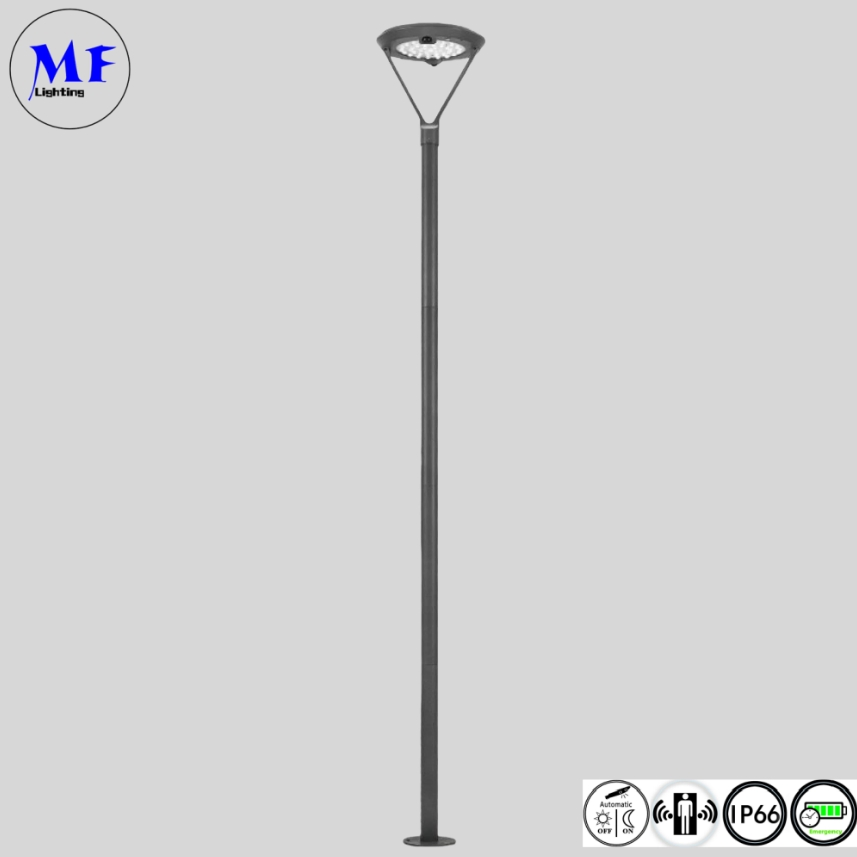

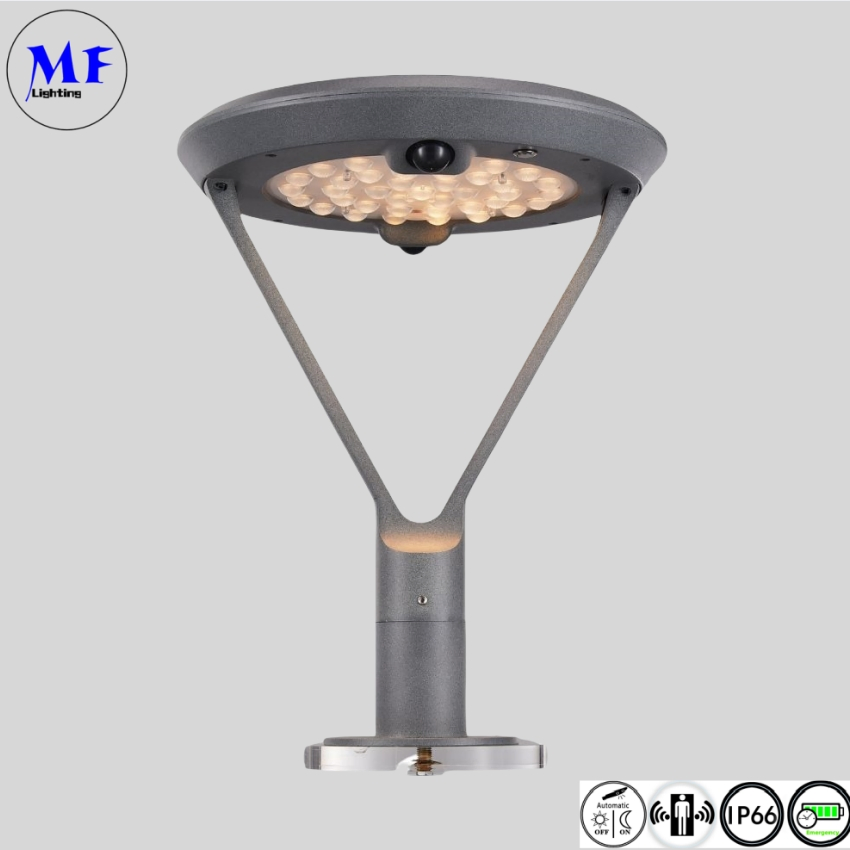

Direct Factory Price IP66 2000lm Outdoor LED Light Solar Panel PIR Sensor Solar Wall Light Post Top Light Solar Street Light Garden Light for Plaza Pathway

Product Description

Direct Factory Price IP66 2000LM Outdoor LED Light Solar Panel PIR Sensor Solar Wall Light Post Top Light Solar Street Light Garden Light for Plaza Pathway

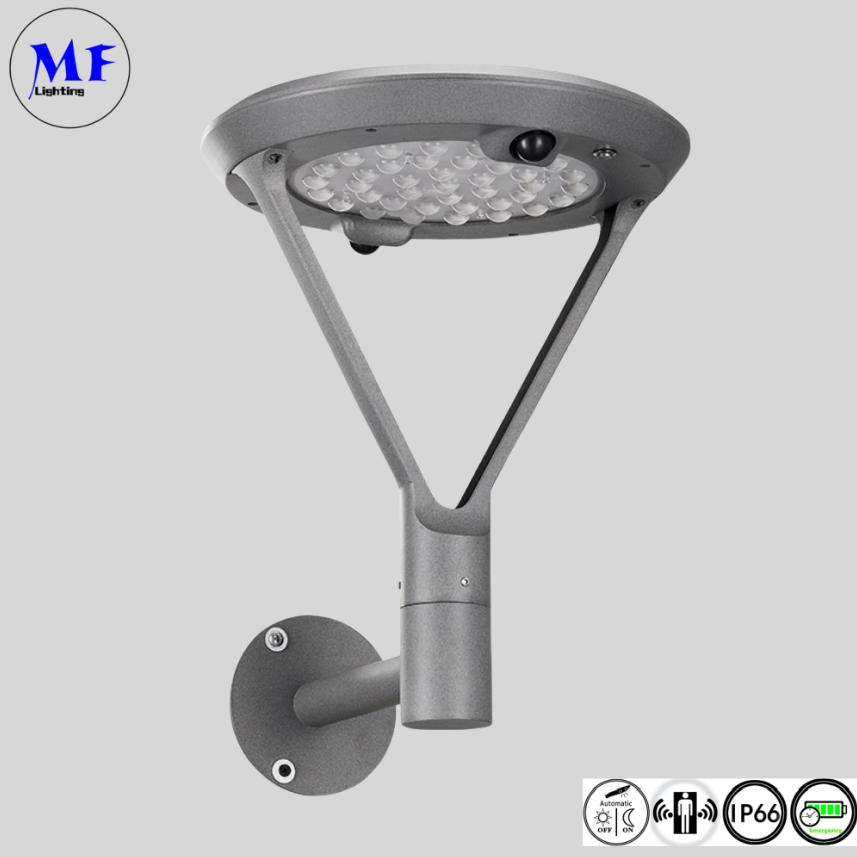

Outdoor LED Light Solar Panel PIR Sensor Solar Wall Light
Product Features
Product Features Detail

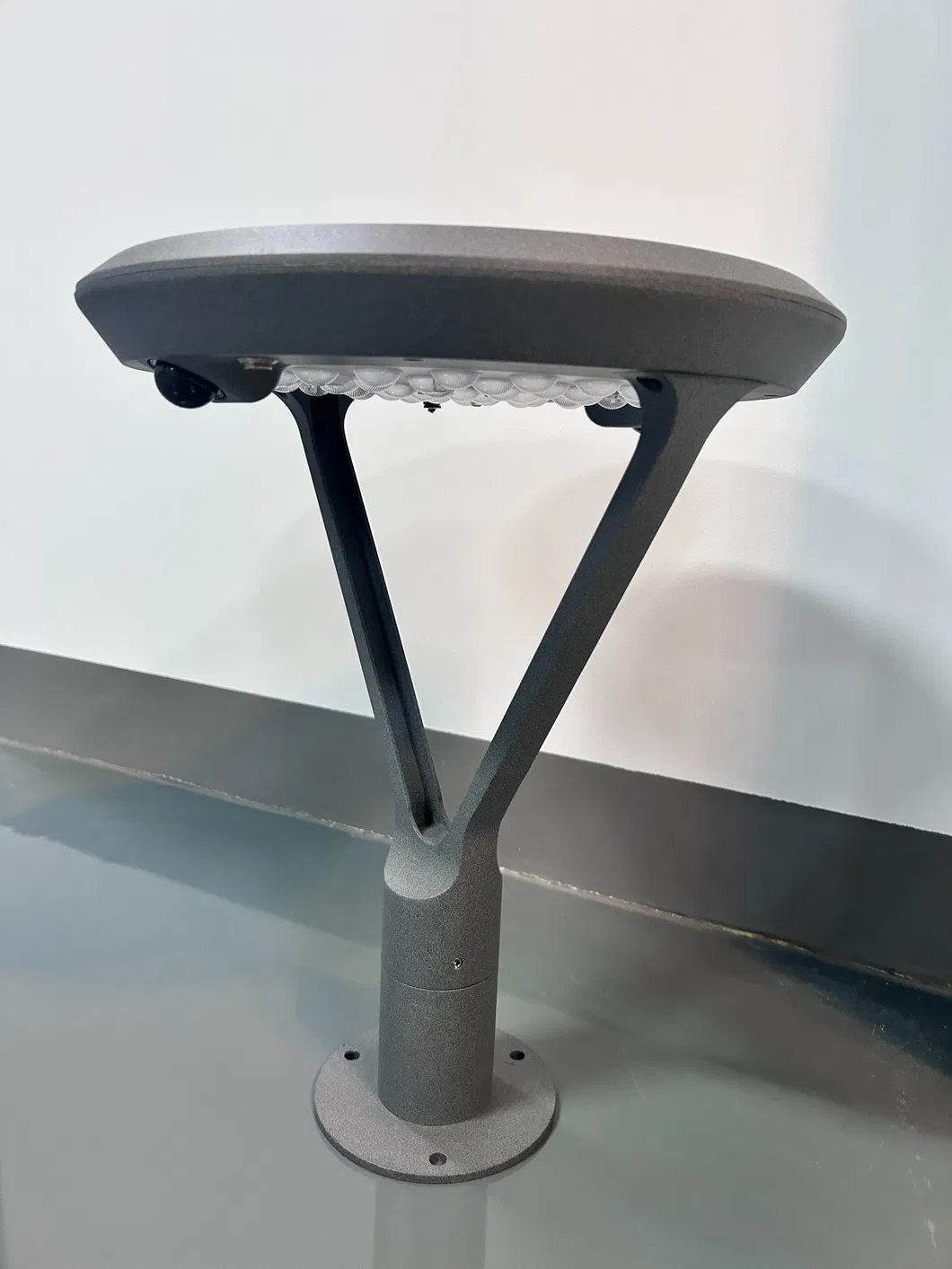

This product represents a groundbreaking addition to our exclusive range of models. Crafted meticulously from premium-grade die-cast aluminum, it features an elegant, segmented rod design that significantly aids customers in reducing their transportation costs. Enhanced with a state-of-the-art 360° dual PIR sensor control system, a sophisticated three-tiered bright light sensor mode, and pioneering infrared sensor technology, it offers users unparalleled quality assurance coupled with exceptional convenience.

Products Parameters
Parameter Specification
Material: Die-cast aluminium + PC cover
Size: φ310*H310mm, inner diameter of interface 52mm
Battery capacity: 18650 Li-ion 3.7V/8000mAh
Solar Panel: Mono 5.5V / 6.5W
Colour temperature: White light (5500-6000K) or warm light (2700-3000K)
Charge time: 7-8 hours
Continuity: 9-12 hours
Luminous flux: 2000LM
Function: Induction + micro-lighting / Induction + Out / Timer 6 hours
Products Parameters Specifications
Product Advantages
1

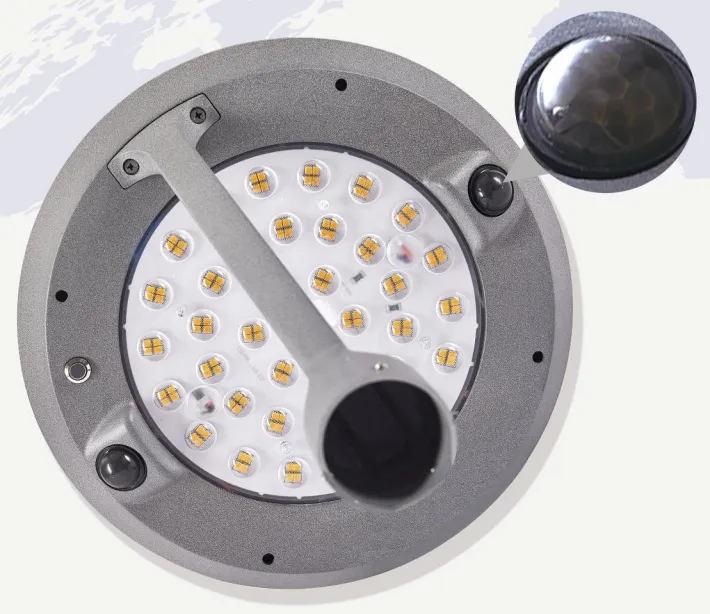

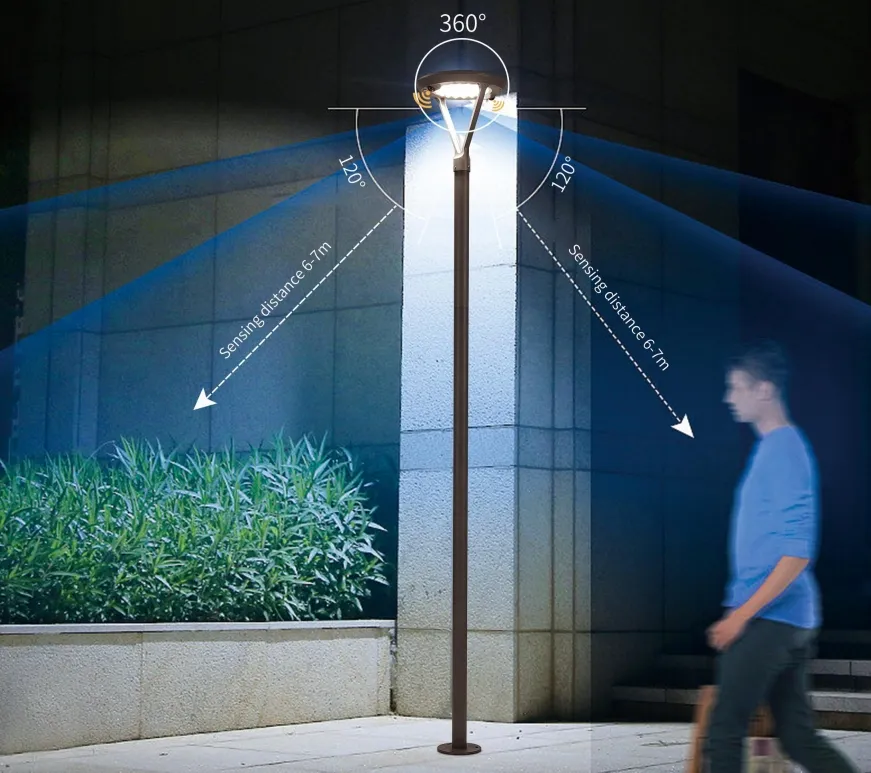

360° Dual PIR Sensor

The product adopts 360° double human body sensor "clairvoyance" design, upgraded the market 120° sensor garden light, solved the single-side sensor lighting, infrared sensor technology, the night people come to automatically light up, no need to manually turn on the light.

2

Easy installation and integrated design reduces transport costs

The lamp cap and pole are designed to be detachable and spliced for installation, greatly reducing the lamp head and pole of the box length space, the product is easy to install, demountable design greatly reduces the storage space of the product, and greatly reduces the logistics and transport costs

3

18650 Li-ion battery for long life

Committed to meet the needs of customers "365 days, every day light", our company uses high-quality 18650 lithium battery, high-capacity storage, high temperature resistance, high safety performance, non-explosive, non-combustible, non-toxic, non-polluting, after the RoHS trademark certification, no hidden security concerns.

Advantage Detail 1
Advantage Detail 2
Advantage Detail 3
4

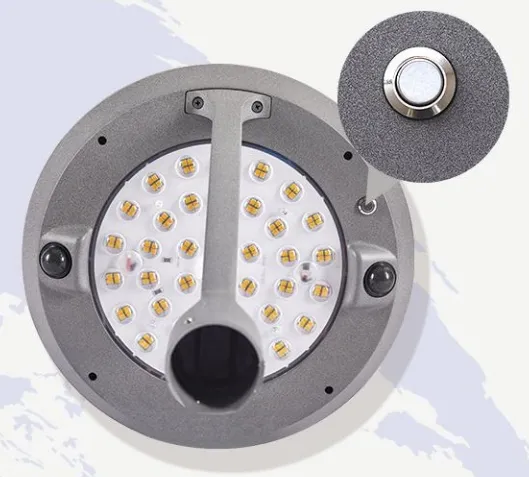

Pushbutton switches:

Short press to turn on light

5

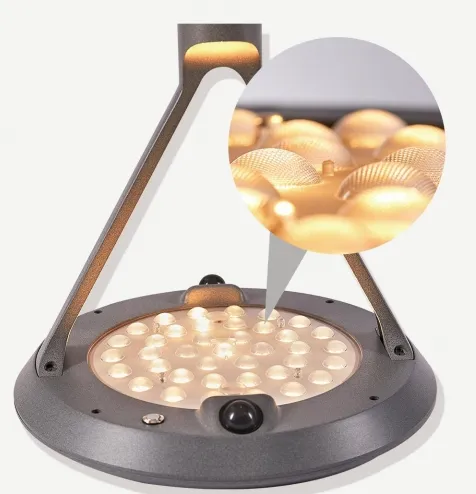

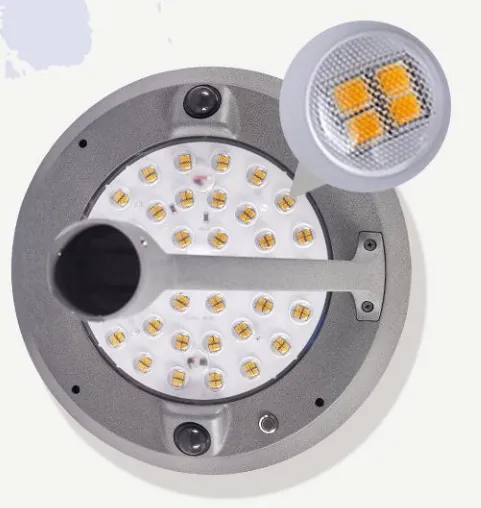

LED High Power Beads:

LED soft light, low power consumption, long service life

6

Die-cast aluminium material:

Die-cast aluminium lamp body is resistant to impact, deformation, rust and durability.

Advantage Detail 4
Advantage Detail 5

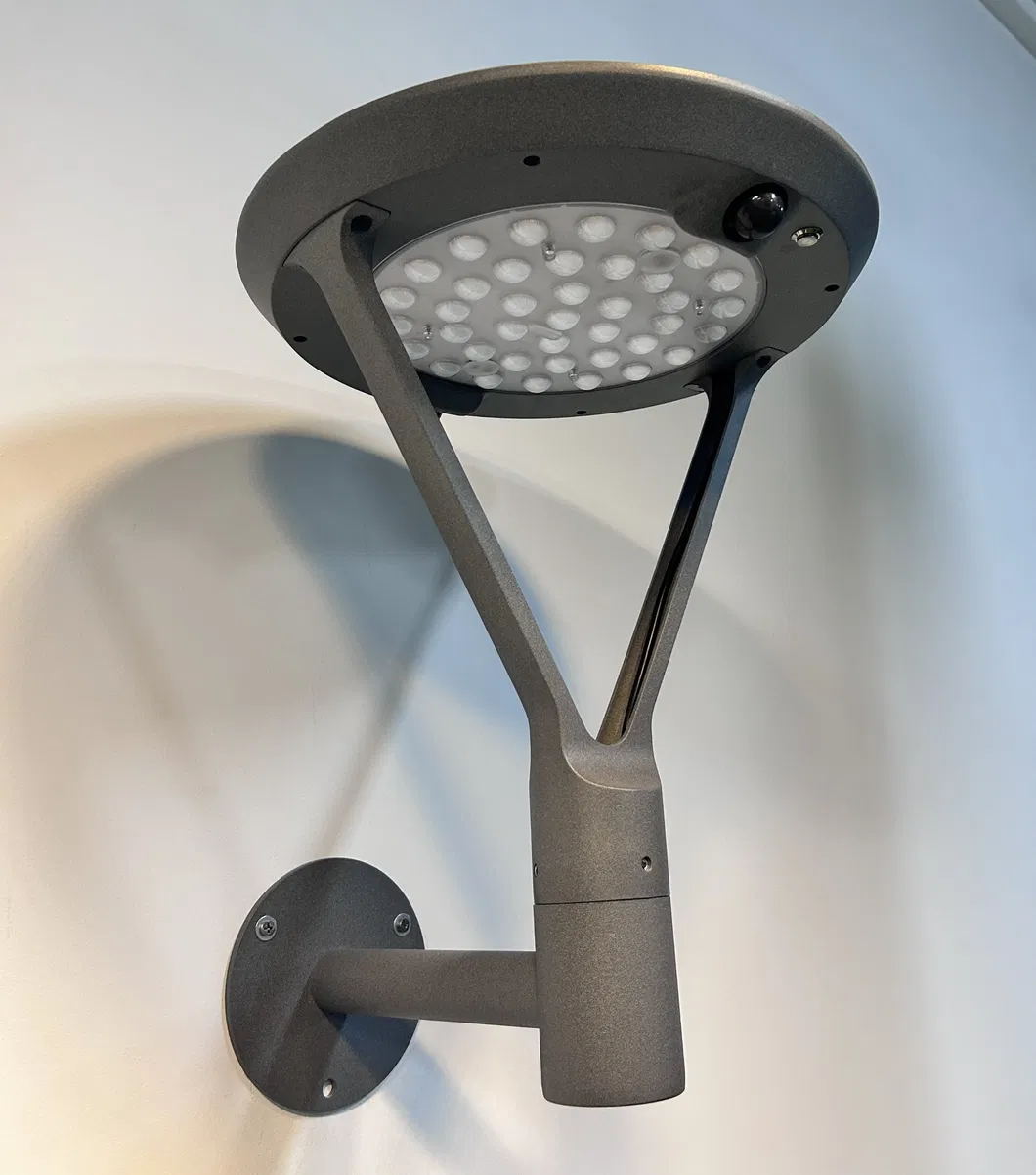

Advantage Detail 6

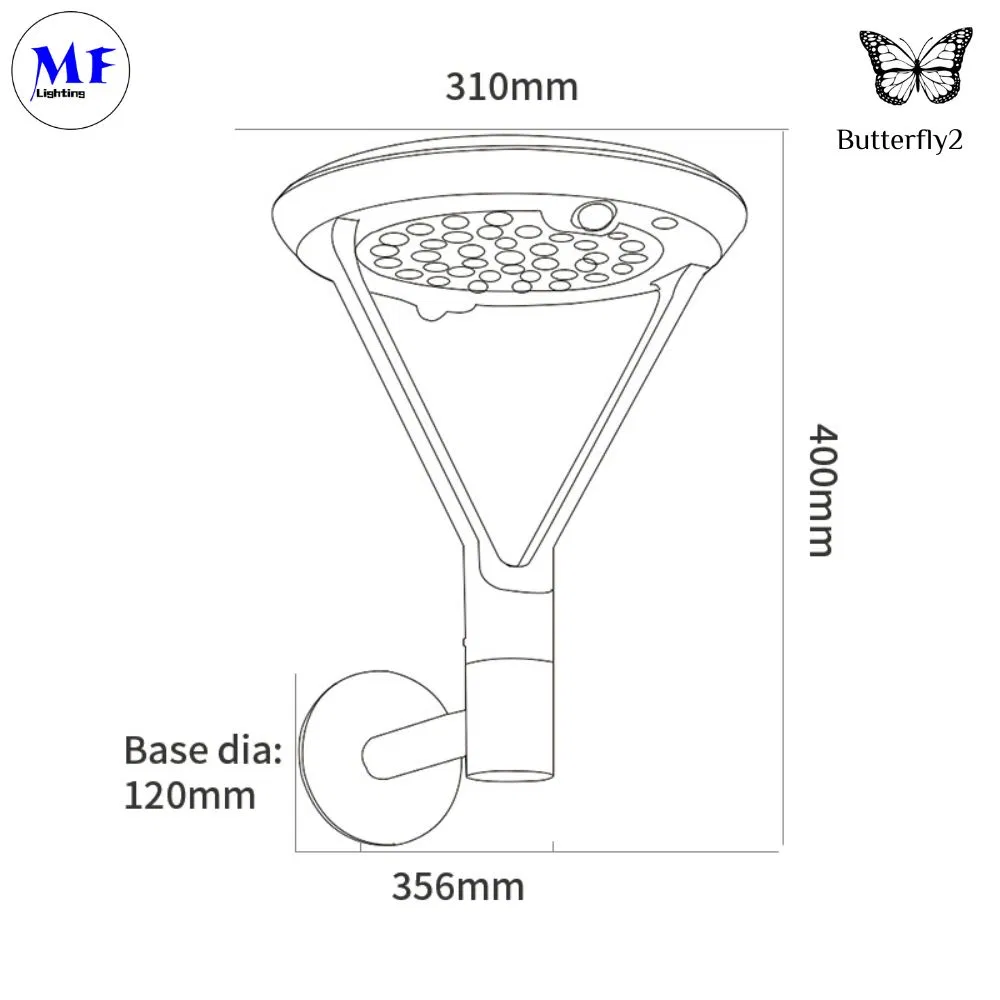

Product Dimensions

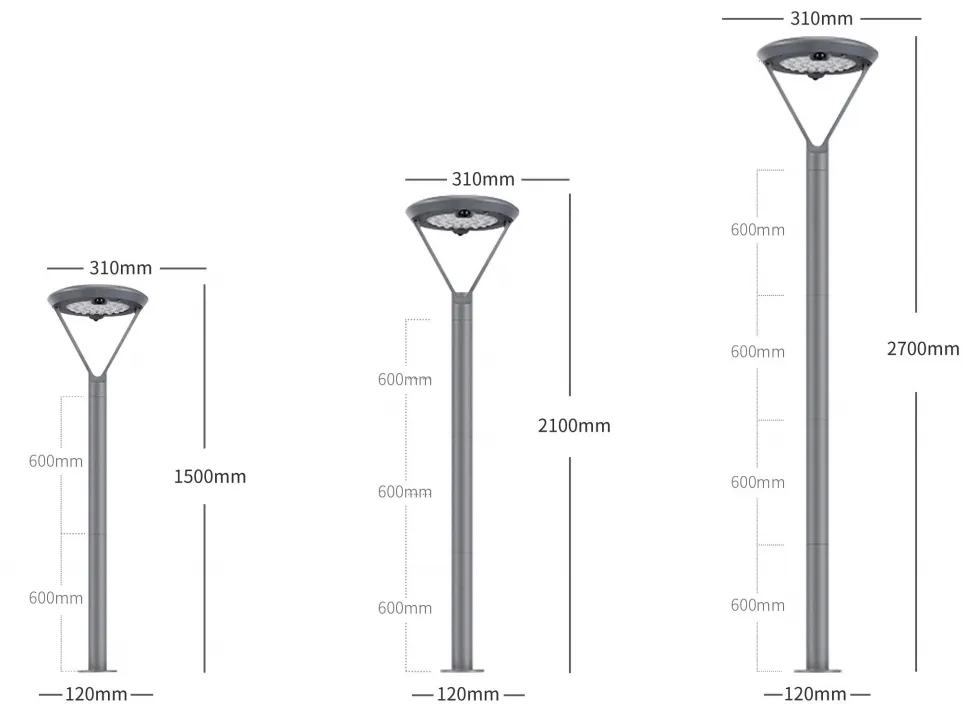

Different height for you to choose:

Dimensions Height Setup 1
Dimensions Height Setup 2
Model Solar Panel Diameter Height Base Diameter Model Solar Panel Diameter Height Base Diameter
MF-TB-564 310mm 400mm 120mm MF-TT-564-270 310mm 2700mm 120mm
MF-TZ-564 310mm 385mm 120mm MF-TT-564-200 310mm 2100mm 120mm
MF-TT-564 310mm 310mm 52mm MF-TT-564-150 310mm 1500mm 120mm
Packing Lists
Wall Lamp Packing List

Wall Lamp Packing List:

  • Lamp body * 1
  • Y bracket * 1
  • Aluminum light wall * 1
  • Expansion screws * 3
  • Allen wrench * 1
  • M5*12mm countersunk head screw * 4

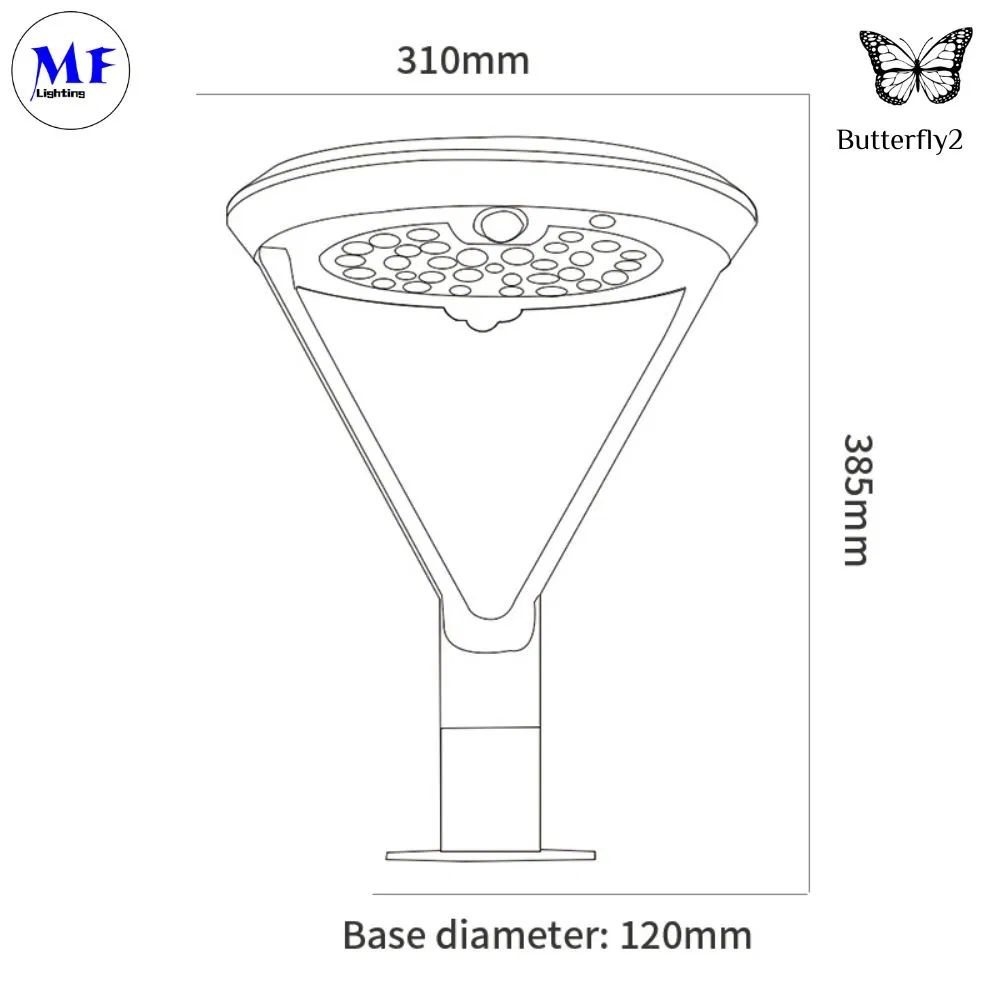

Pillar Light Packing List

Pillar Light Packing List:

  • Lamp body * 1
  • Y bracket * 1
  • Aluminum base * 1
  • Expansion screws * 3
  • Allen wrench * 1
  • M5*12mm countersunk head screws * 4
Garden Light Packing List

Garden Light Packing List:

  • Lamp body * 1
  • Y bracket * 1
  • Expansion screws * 3
  • Allen wrench * 1
  • M5*12mm countersunk head screw * 4
  • Aluminum rod φ50*595mm * 3

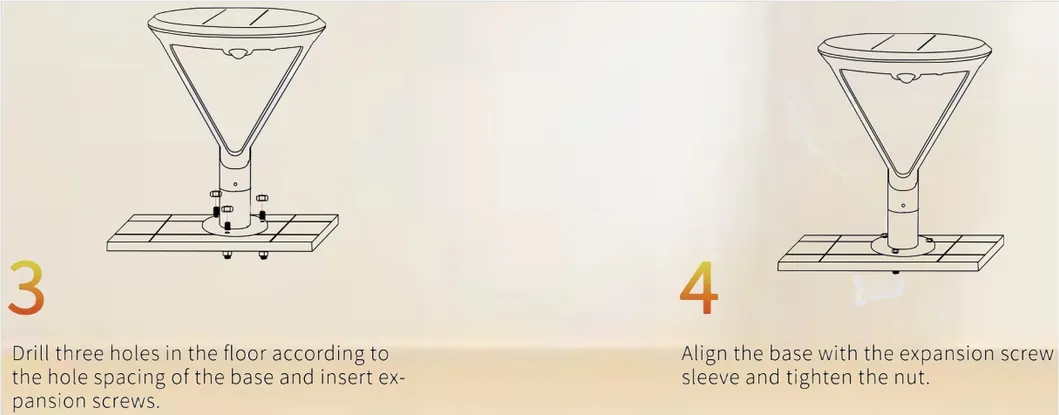

Installation Notes

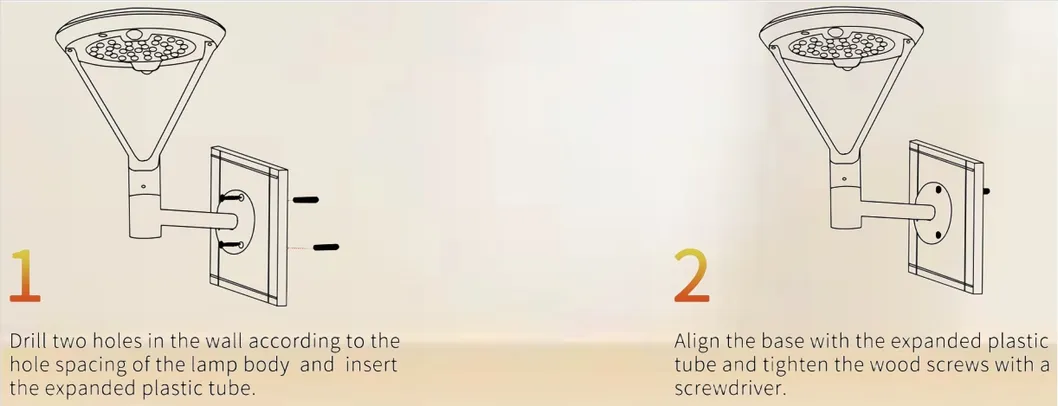

Installation Note Step 1
Installation Note Step 2

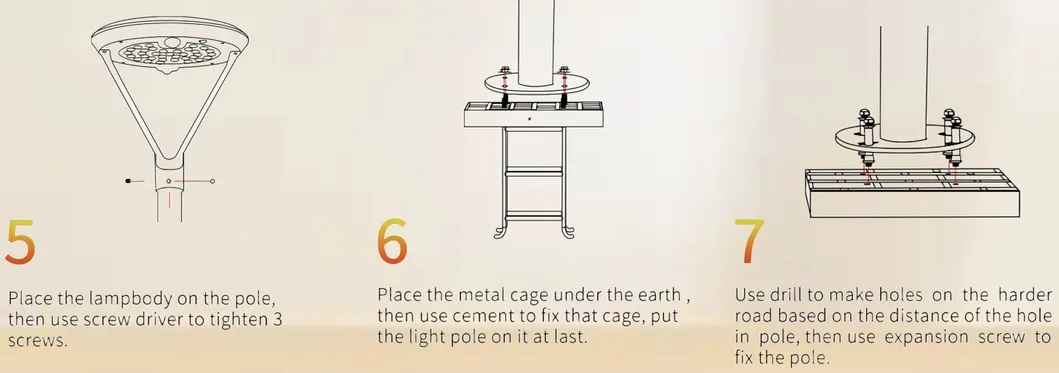

Installation Note Step 3

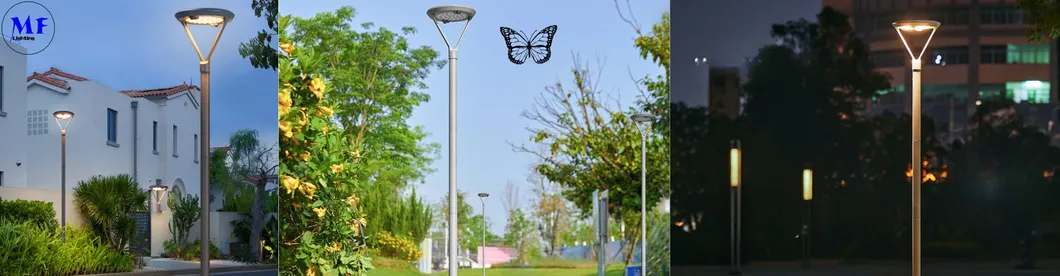

Product Applications

This advanced outdoor lighting product is versatile for villa courtyards, gardens, and streets. Its die-cast aluminum construction ensures durability, and the segmented rod design aids easy transportation and installation. With 360° double human body sensor "clairvoyance" design and bright light modes, it adapts to ambient light and motion, enhancing security and aesthetics. The IP66 waterproof rating ensures reliable performance in harsh environments.

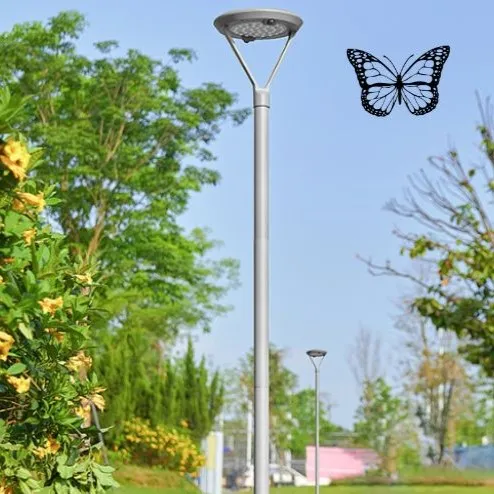

Application Scenario 1

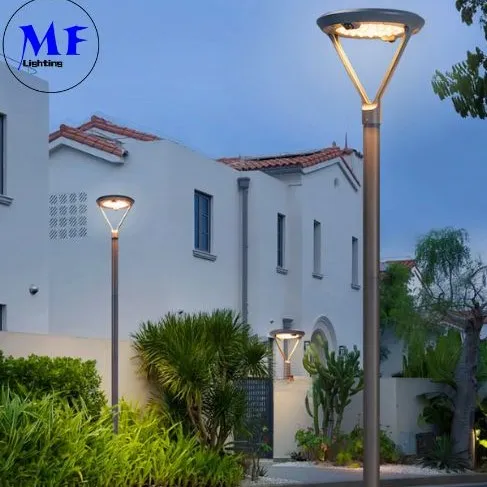

Application Scenario 2

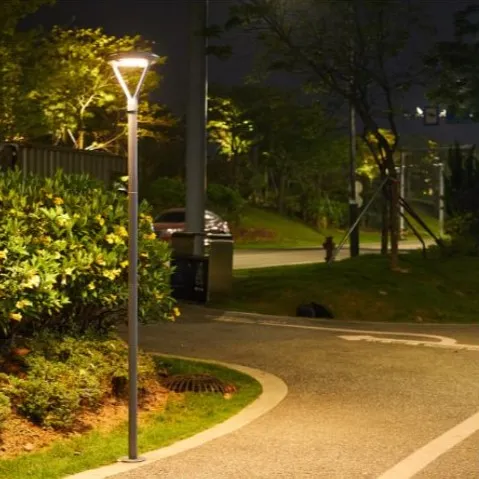

Application Scenario 3
Packaging & Shipping

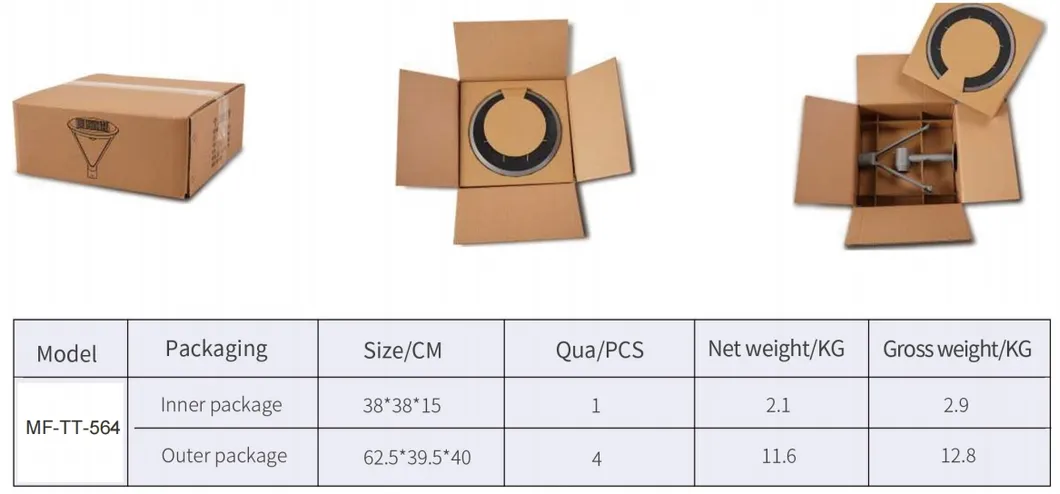

Packaging and Shipping Detail
Why Choose Us?
Why Choose Us Certificate/Process Diagram
Company Profile

We are a leading LED lighting manufacturer with our own factory. We specialize in the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our team of skilled professionals is dedicated to providing customers with the best LED lighting products and services. We pride ourselves on our commitment to quality and customer satisfaction. Whether you are looking for residential or commercial LED lighting solutions, we have the expertise and resources to meet your needs.

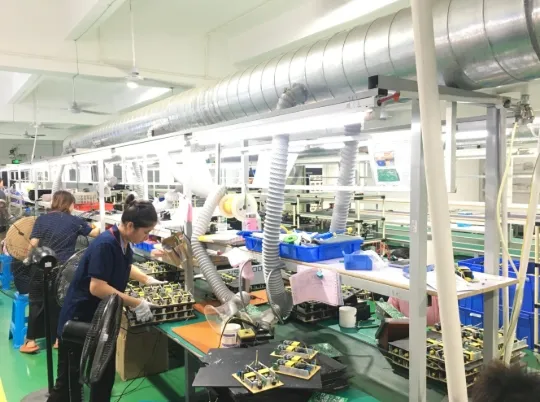

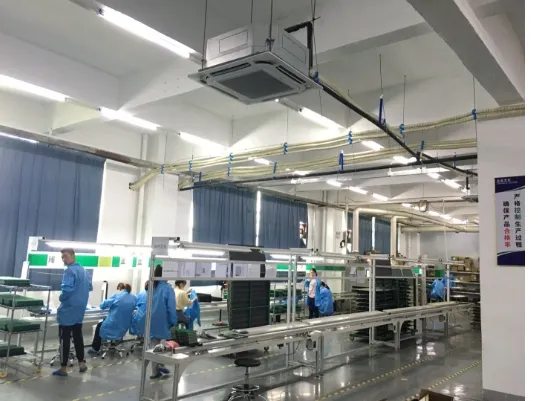

Factory Workshop 1

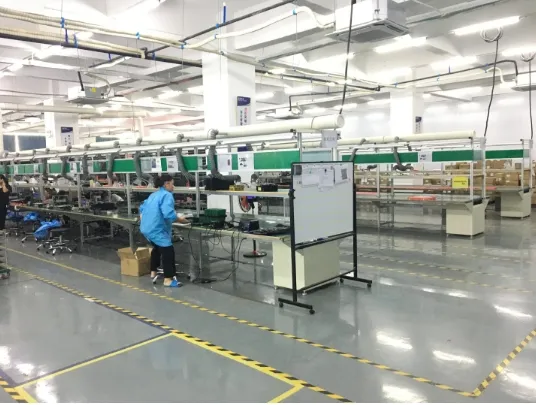

Factory Workshop 2
Factory Workshop 3

Frequently Asked Questions

What do you sell?
We provide good quality floodlights, high bay lights, explosion proof lights, tri-proof lights, downlights, and other lighting products, as well as responsible services and reliable after-sales warranty.
Is it OK to print my logo on led light product?
Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
How to deal with the faulty?
During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including recall according to real situation.
Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
How long time to ship the goods if place an order?
Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
What is the waterproof rating and material of this solar light?
This solar street light features an IP66 waterproof rating and is constructed from premium-grade die-cast aluminum, ensuring durability and reliable performance in harsh outdoor environments.
