Basic Info
Model NO.
SKY series Flood light
Projection Distance
Depends on Power
Application
Park, Square, Factory, Garden, Any Outdoor Application
Certification
CCC, CE, RoHS, SAA
Operating Voltage
AC 100-277V
Input Voltage
AC 100-277V
LED Chips Brand
Phi-Lips/Mean-Well
Luminous Flux
130lm/W-150lm/W
Transport Package
Carton Box
Production Capacity
10000pieces/Year

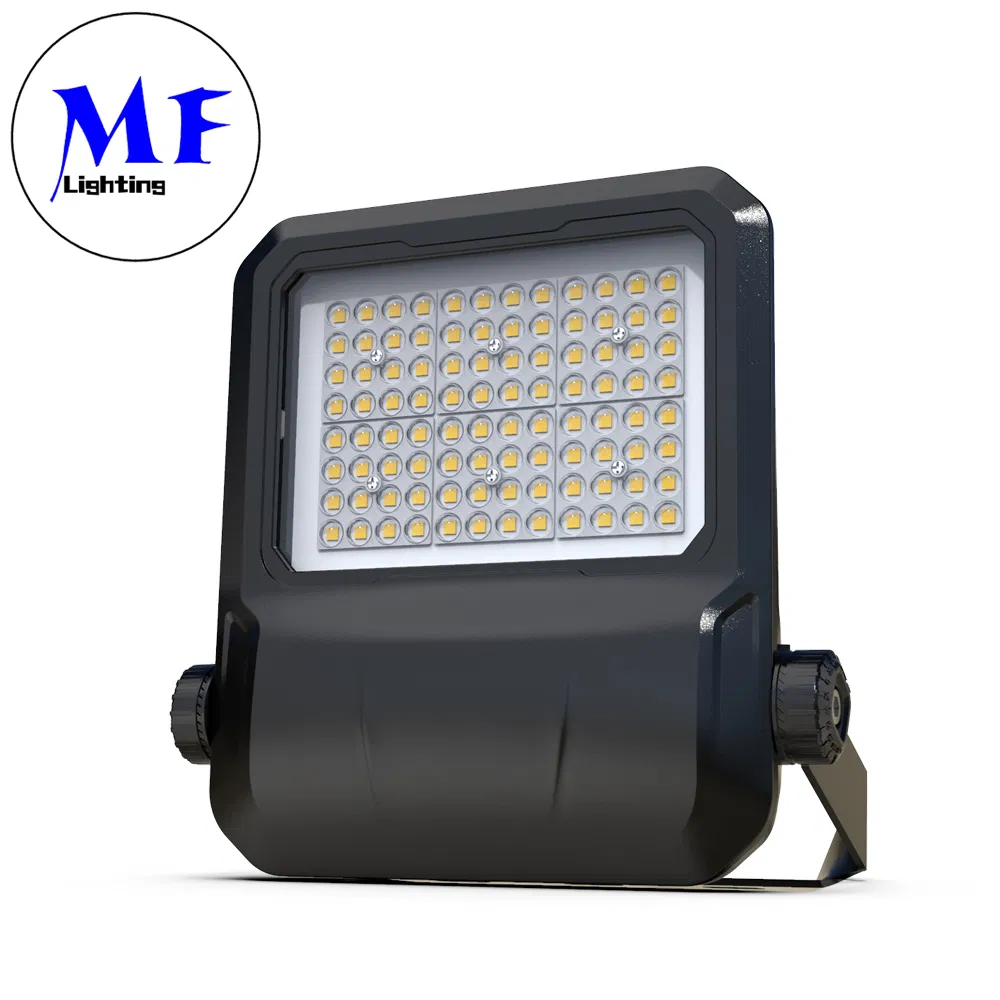

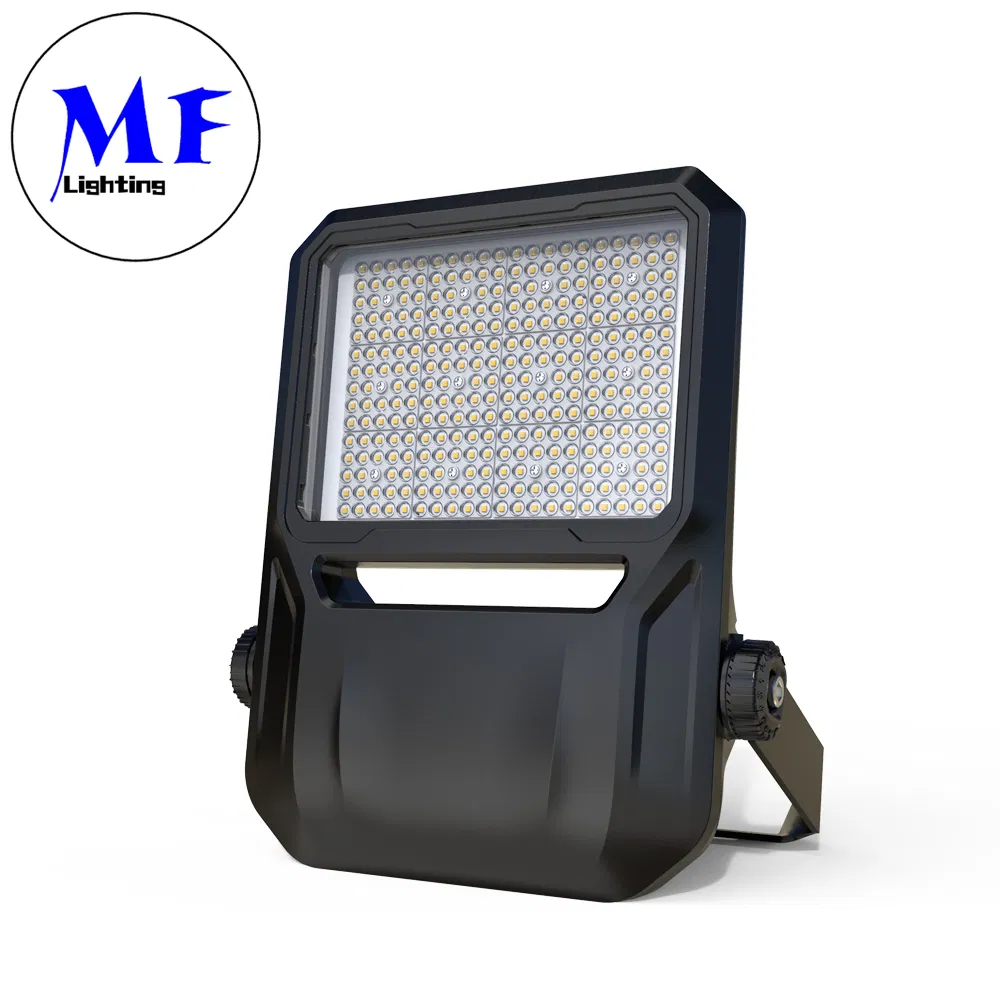

Product Description
Factory Price 100W 150W 200W 300W 400W Sport Filed Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light
Feature
- Massive light output of up to 39,200lm
- Ultra-high system effciency of up to 140lm/W
- High quality Lu-miled LED Chip and Inven-tronics Driver
- Long >102,000 hours lifespan to L70
- Professionally Designed True Asymmetric Flat Optics
- Tough IP67 and IK09 construction
- Suitable for coastal areas (with optional 304 stainless steel bracket)
- IP67 Waterproof dust proof
This LED flood light delivers ultra-bright, high-efficiency lighting with wide beam coverage, perfect for both commercial and outdoor applications. Built with premium LED chips, it provides stable lumen output, low energy consumption and long service life, effectively replacing traditional halogen flood lights.
Featuring excellent heat dissipation design and durable die-cast aluminum housing, this flood light is waterproof, dustproof and weather-resistant, adapting perfectly to rain, snow and extreme outdoor environments. Simple installation, lightweight structure and wide voltage compatibility make it ideal for courtyard, garden, stadium, warehouse, parking lot, building exterior and landscape lighting.
With flicker-free soft light, high color rendering and low glare, it offers comfortable and uniform illumination while greatly saving electricity and maintenance costs. A reliable, cost-effective lighting solution for home and business use.

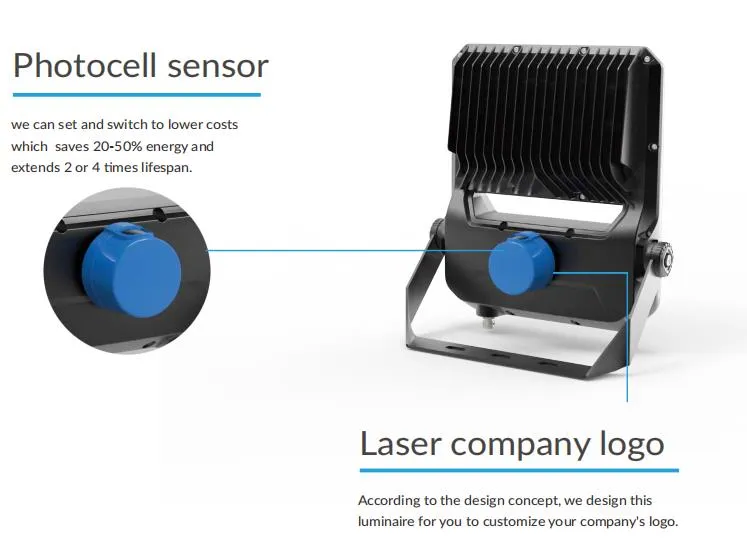

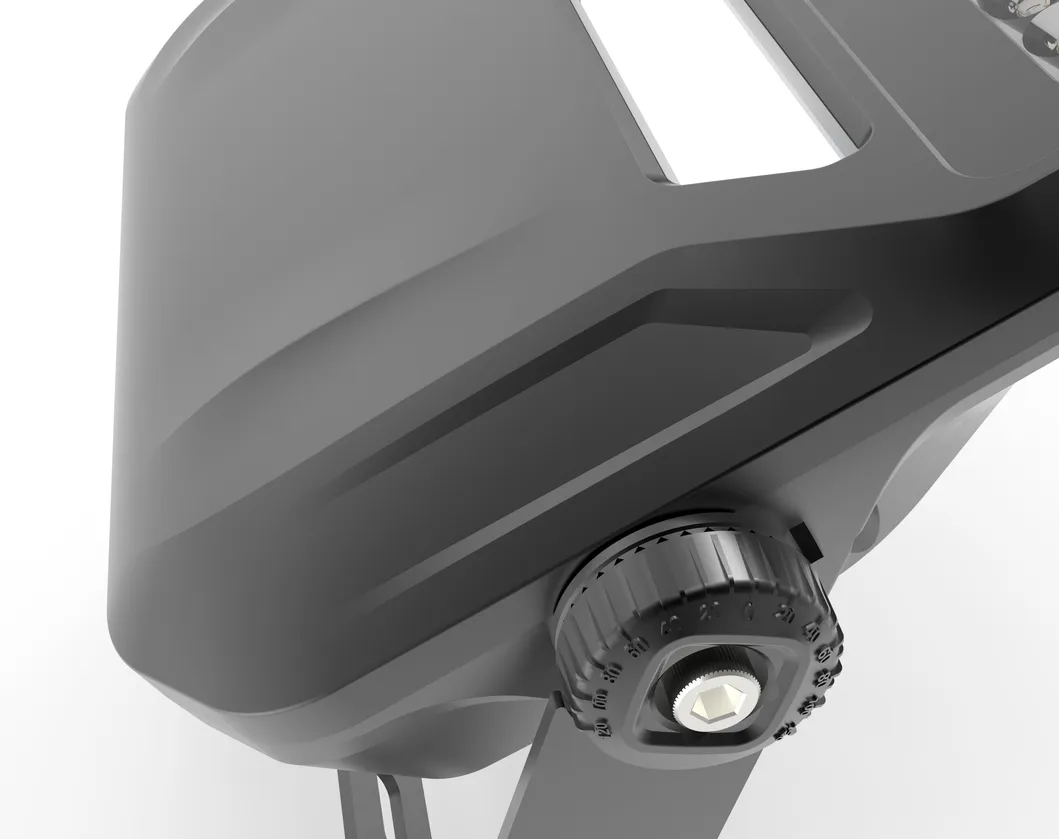

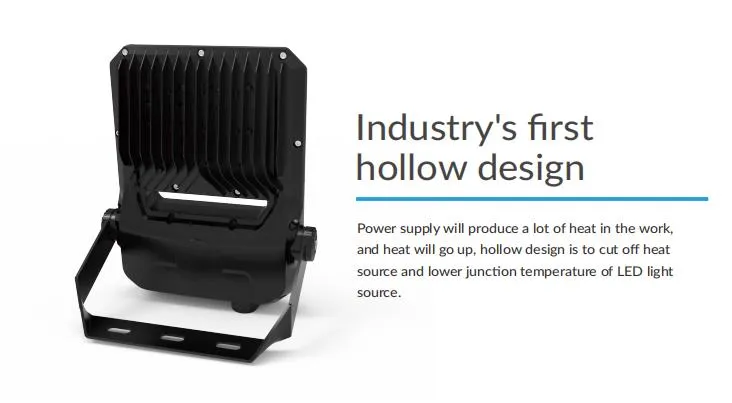

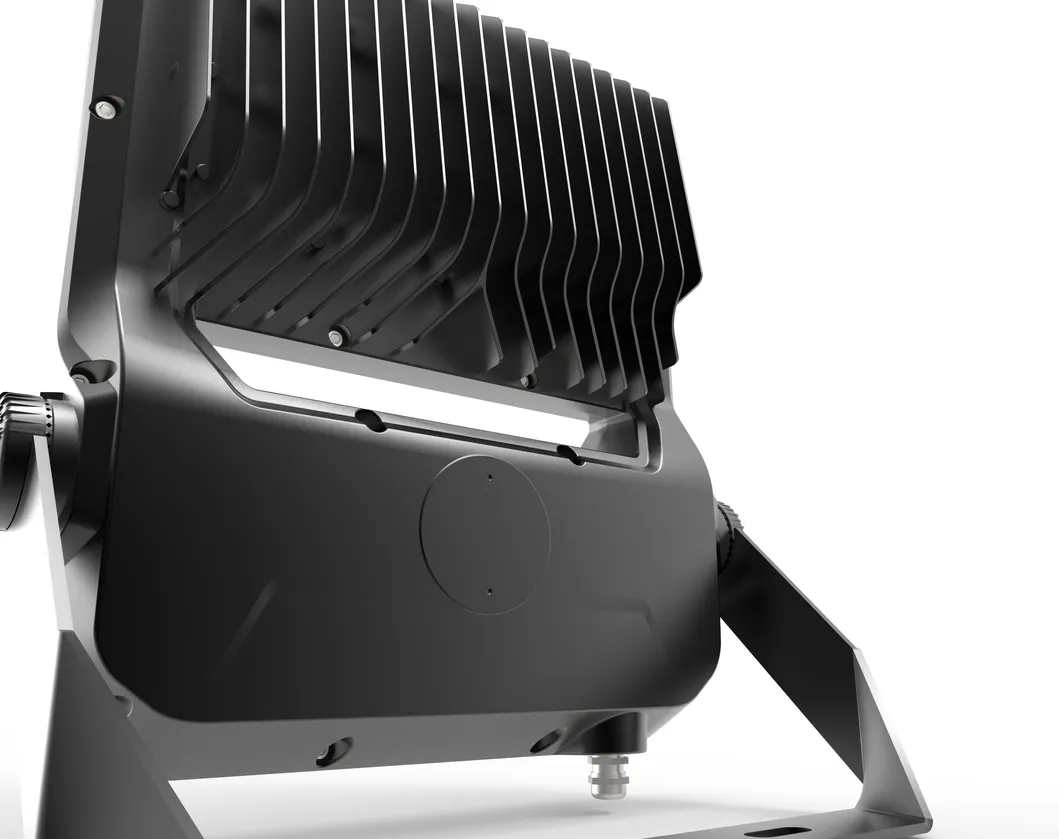

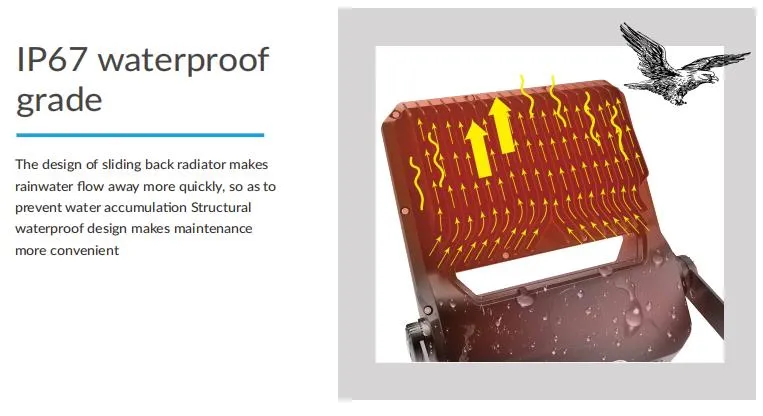

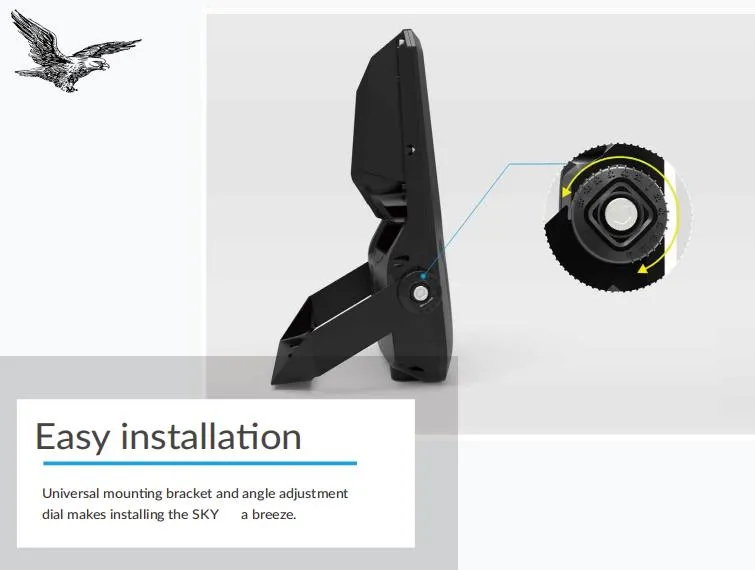

Product Characteristic
Specification
| CODE |
POWER |
LUMEN OUTPUT |
EFFICACY |
| SKY-50 |
50W |
7,000lm |
140lm/W +10 |
| SKY-75 |
75W |
10,500lm |
140lm/W +10 |
| SKY-100 |
100W |
14,000lm |
140lm/W +10 |
| SKY-150 |
150W |
21,000lm |
140lm/W +10 |
| SKY-180 |
180W |
25,200lm |
140lm/W +10 |
| SKY-200 |
200W |
28,000lm |
140lm/W +10 |
| SKY-240 |
240W |
33,600lm |
140lm/W +10 |
| SKY-280 |
280W |
39,200lm |
140lm/W +10 |
| LIGHTING DATA |
ELECTRICAL DATA |
| LIGHT SOURCE |
SMD 5050 |
POWER SUPPLY |
Inven-tronics / Mean-Well / Done |
| LIFETIME |
>102,000hrs |
INPUT VOLTAGE |
100-277V/AC, 50-60Hz |
| CCT |
5000K (3000K, 4000K, 5700K, 6500K available) |
POWER FACTOR (Typ) |
≥0.97 |
| CRI |
>70 (>80, >90 available) |
THD(Typ) |
<8% |
| SDCM |
c 5 (<3 available) |
SURGE PROTECTION |
6kV |
| SYMMETRIC |
30°, 60°, 90° |
DRIVER LIFETIME |
50,000hrs |
| ASYMMETRIC |
P45° |
DIMMABLE OPTIONS |
0-10V, Dali, Sensor, LoRa, Zhaga |
| DESIGN / CONSTRUCTION |
TECHNICAL DATA |
| BODY MATERIAL |
Aluminium |
IP RATING |
IP 67 |
| OPTICS MATERIAL |
Polycarbonate |
IK RATING |
IK 09 |
| LENS MATERIAL |
Toughened glass |
OPERATING TEMP |
-30° to +50°C |
| BRACKET MATERIAL |
Galvanized iron |
PROTECTION CLASS |
Class 1 |
| FINISH |
Powder-Coat |
CERTIFICATIONS |
ROHS/CE/SAA |
| COLOUR |
Black(RAL9005) |
WARRANTY |
5 Year |
| Weight |
2.16kg |
|
|

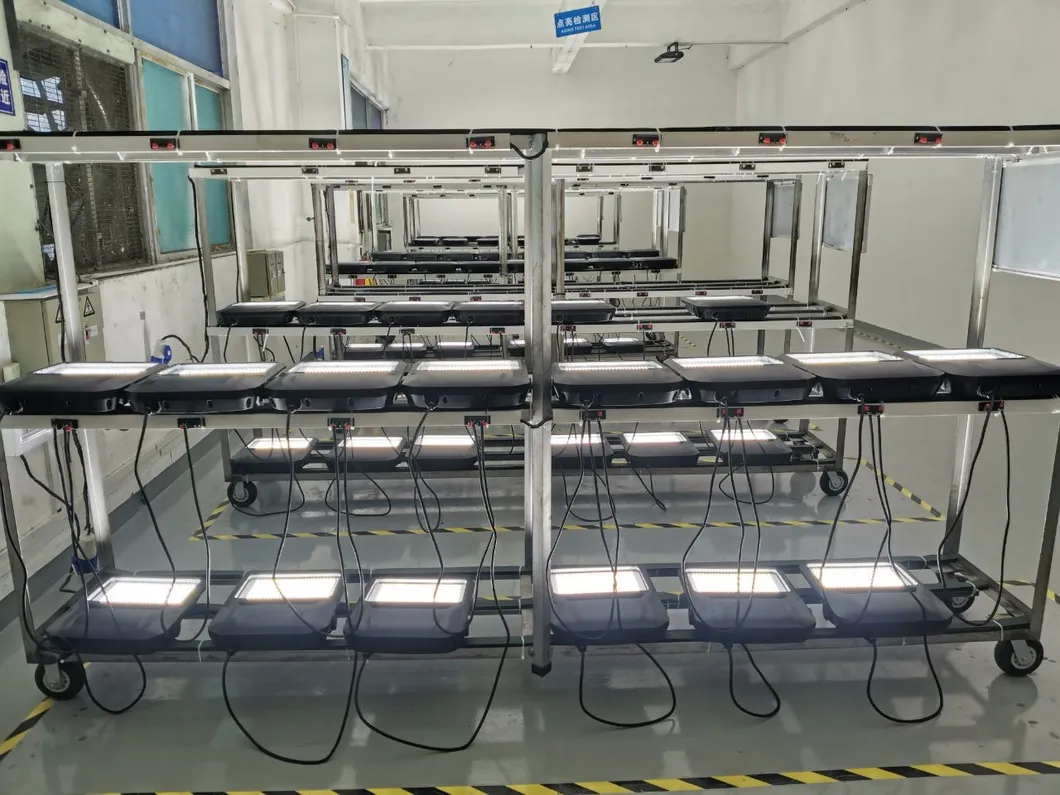

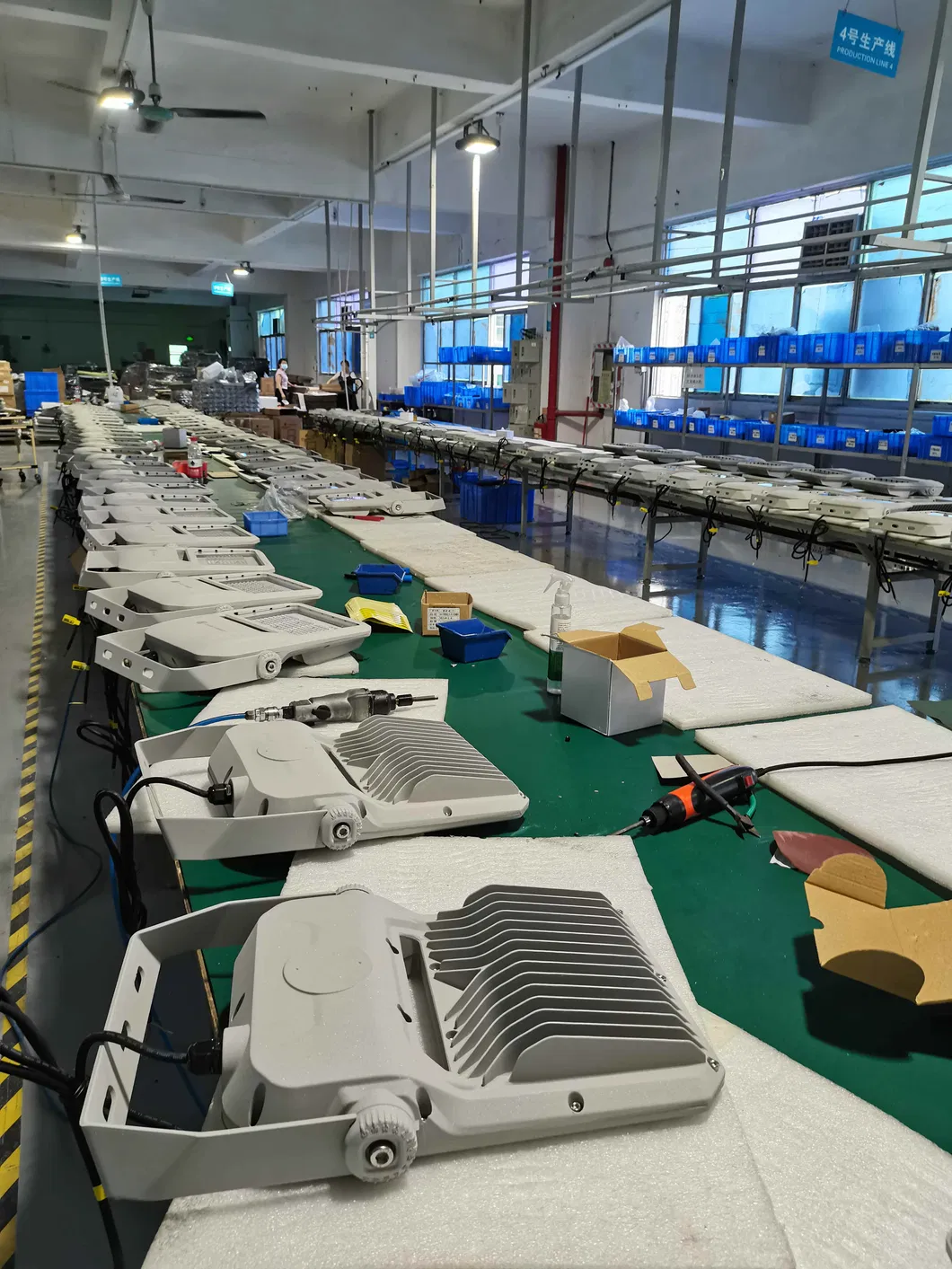

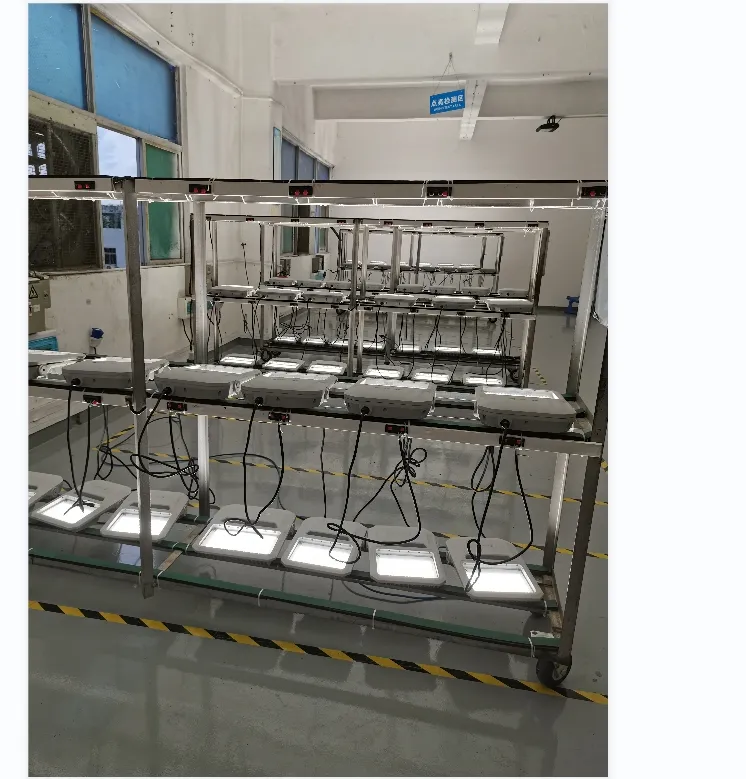

Production

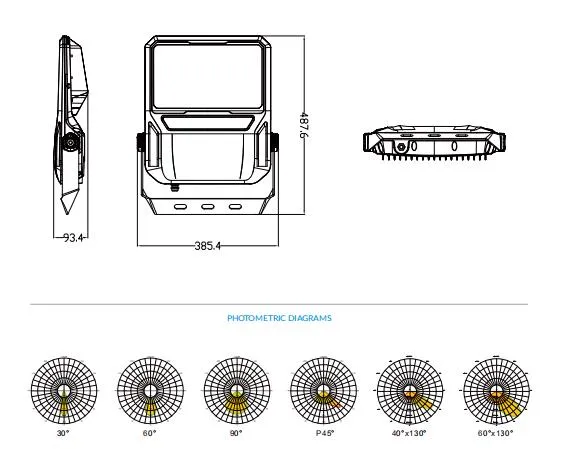

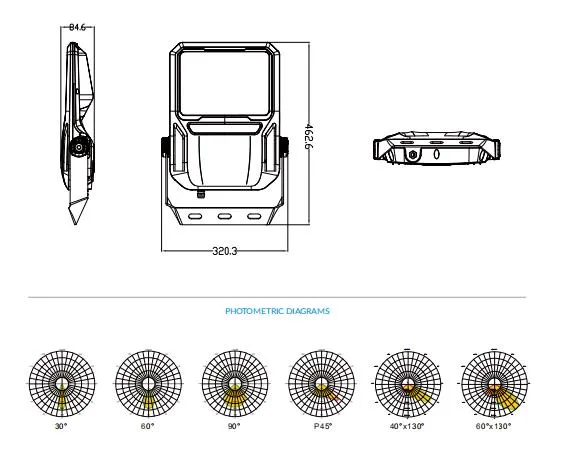

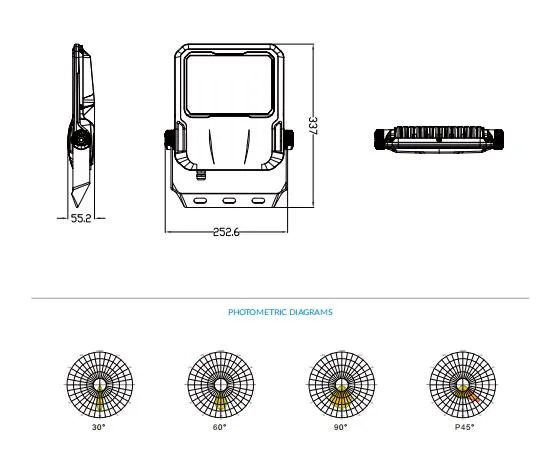

Dimension

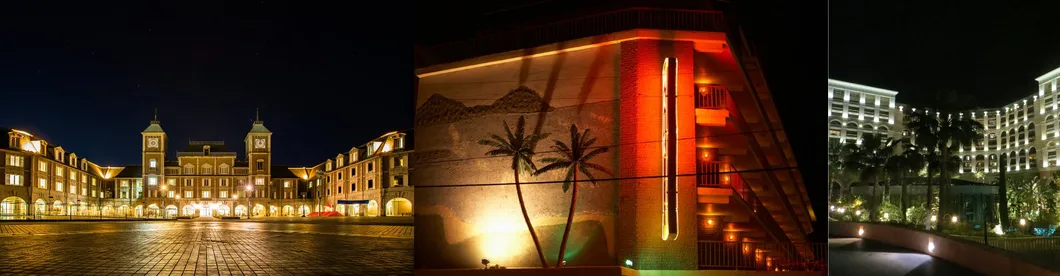

Application
| COMMERCIAL LIGHTING |
PUBLIC LIGHTING |
INDUSTRIAL LIGHTING |
| Tunnel |
Tunnel |
Manufacture |
| Supermarkets |
Airports |
Warehouses |
| Large retailers |
Stadium |
Parking lots |
| School |
Train stations |
Exhibition centers |
| Billboard |
Bus stations |
Gas stations |
| Building |
etc. |
Toll stations |
| etc. |
etc. |

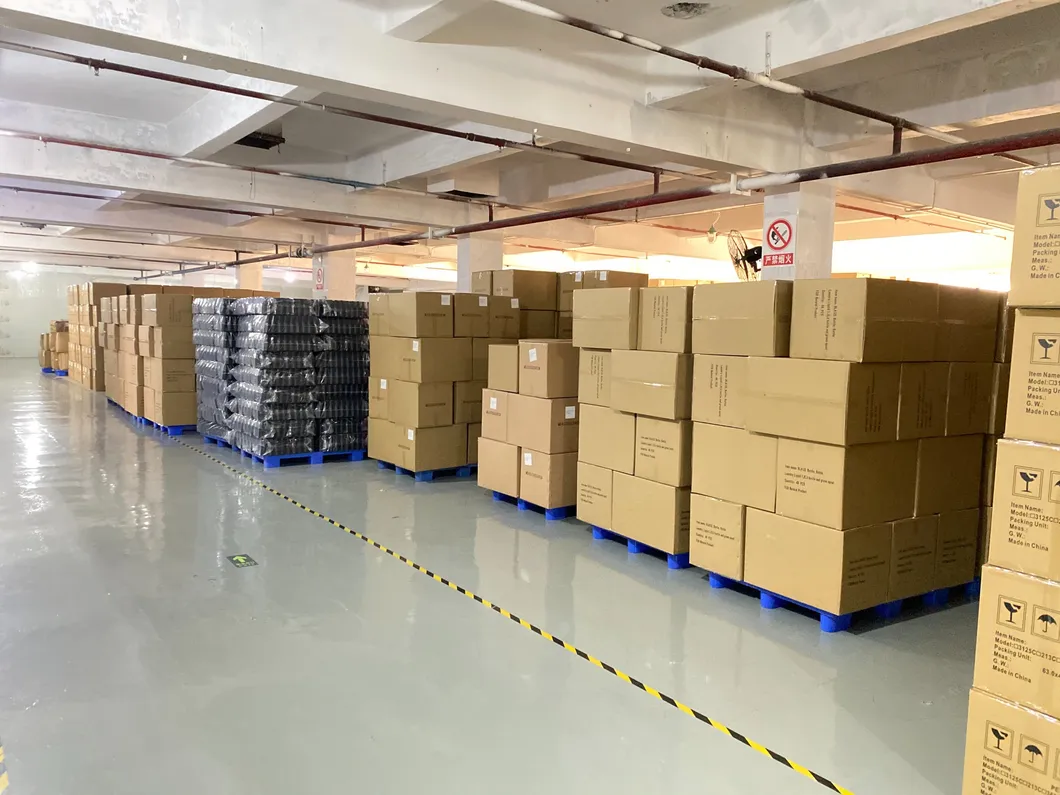

Packaging
Matters Needing Attention
Before installing the lighting fixtures, please read this instruction manual carefully.
-
1.
The lighting fixtures should be installed, connected and tested by a certified electrician based on the local regulations.
-
2.
Lamps should always be installed or replaced carefully.
-
3.
Please check the local voltage in accordance with the product requirements before installation.
-
4.
Revamping only can be done when the power is off and the lamp is completely cooled down.
-
5.
When cleaning the lamp, turn the power off and let it cool down completely. Clean the fixture with a soft cloth and a standard PH neutral detergent. Stainless steel components should be maintained regularly.
-
6.
Don't cover the fixtures with flammable materials.
-
7.
Replacements should be made by the manufacturer, their service agent, or a certified electrician in order to avoid a hazard.
