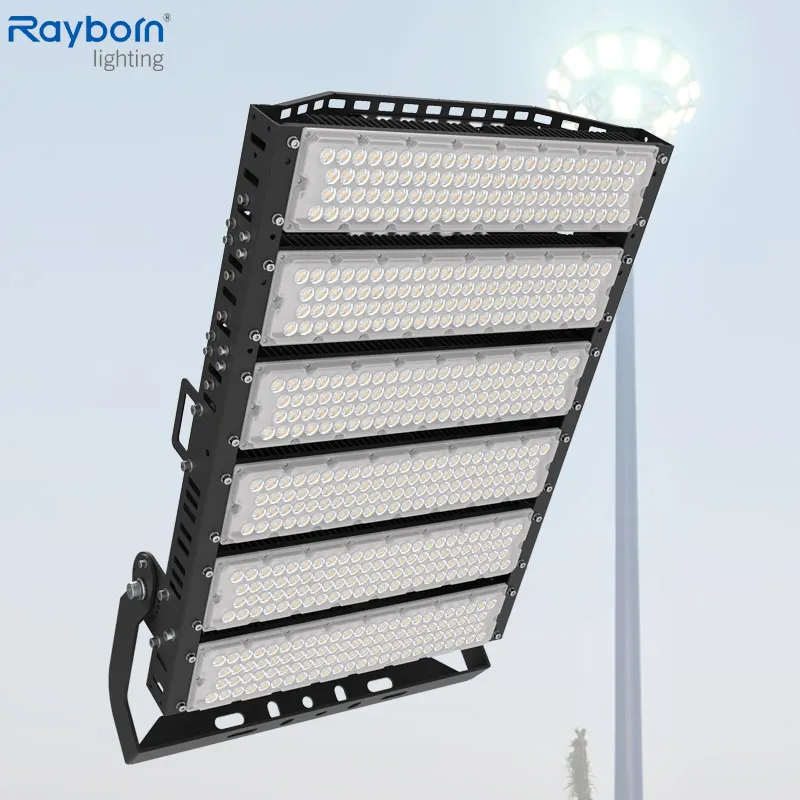

High Mast Pole Reflector 200W 300W 400W 500W 600W 800W 1000W 1500W Outdoor LED Flood Light for Stadium Sports Football Field Tennis Court Basketball Arena

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Product Parameters
  • Detailed Photos
  • Product Description
  • Product Production
  • Packaging & Shipping
  • Design Simulation
  • Applications
Overview
High Quality Factory Direct Sales High Power LED Flood Light for High Power Outdoor High Mast Pole Lighting 400W 500W 600W 750W 800W 1000W 1200W 1500W DMX Sport Field Tennis Court Football Basketball Arena Cricket Stadium Football Pitch Soccer Field LED Flood Lighting
Basic Info.
Model NO. RB-FLL-1000WSDH
Power 500W 600W 750W 1000W 1500W
Projection Distance 30-100m
Application Park, Square, Factory, Garden, Sports Stadium, Football Field
IP Rating IP66

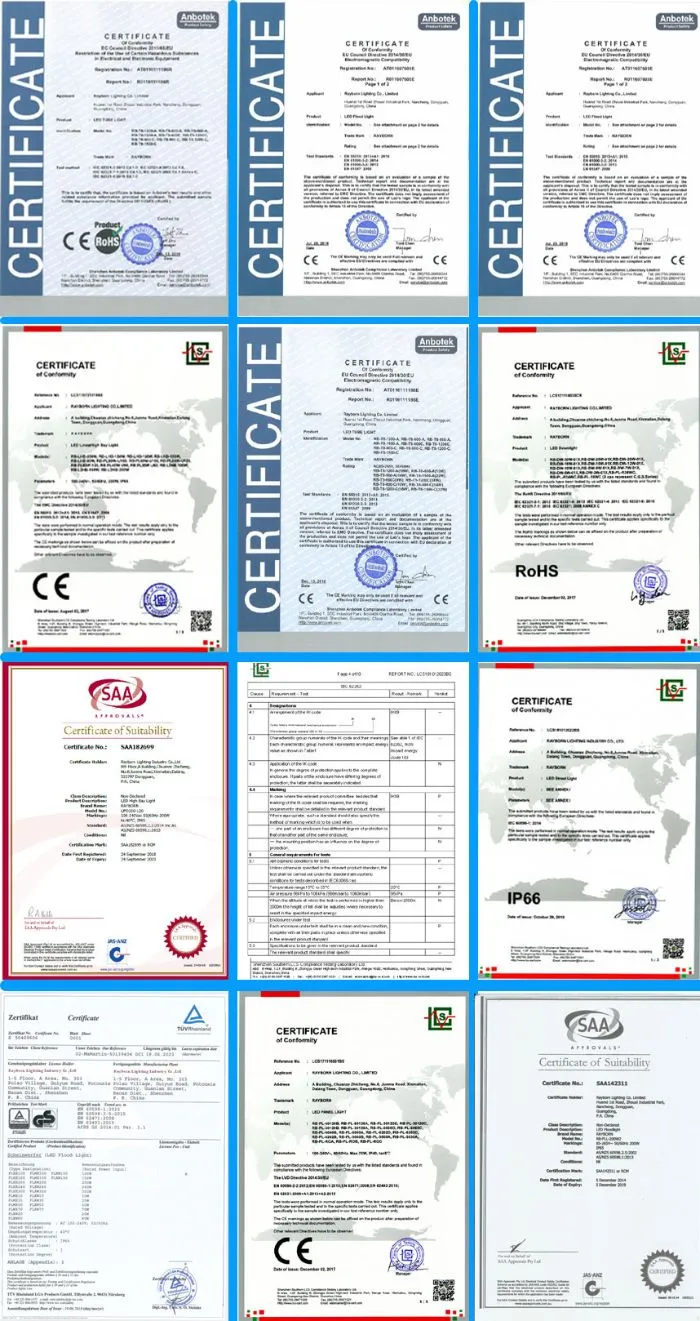

Certification CCC, CE, EMC, ETL, LVD, RoHS, SAA, VDE
Operating Voltage 100-277V/347-480V
Input Voltage 220V
LED Chips Brand Osram
Control Method 0-10V/Dali/DMX/Photocell Sensor/Bluetooth
Power Efficiency >95%
Driver Meanwell/Inventronics/Sosen
LED Luminous Efficiency 160-170lm/W
CCT 3000K/4000K/5000K/5700K/6500K/10000-20000K
Housing Color Black, Grey, White
Working Temperature -40 to +65 C
Warranty 5 Years
Beam Angle 15/20/30/40/60/90/120/100X150 Deg
Lifespan 75000 Hours
CRI Ra>80/Ra>90
Installation Height 15m 18m 20m 25m 30m 35m 40m 50m
OEM Yes
Dimmable DMX512/0-10V/Dali
Origin China (Mainland)
HS Code 9405409000
Production Capacity 30000 PCS/Month
Packaging & Delivery
Package Size 75.00cm * 60.00cm * 30.00cm
Package Gross Weight 21.000kg
Transport Package 1 PCS/CTN
Specification European Standard
Product Parameters
Model RB-FLL-50WSD RB-FLL-100WSD RB-FLL-150WSD RB-FLL-200WSD
Power 50W 100W 150W 200W
Input Volt 100-277V/277-480V/AC 50/60Hz
Led Type 3030SMD
Led(pcs) 64/84pcs 128/168pcs 192/252pcs 256/336pcs
Power Factor >0.98
Power Efficiency >95%
Driver MEANWELL, INVENTRONICS, SOSEN (according to customer needs)
Ra Ra>80 / Ra>90
Lumen (Lm/W) 140-160lm/W
Control method Ordinary, 0/1-10V, PMW, DALI, DMX, Photocell sensor
Light body material Die-casting aluminum lamp body + pc cover + 304 stainless steel screws
Beam angle 15/25/40/60/90/120/138*75Deg
CCT 3000K/4000K/5000K/5700K/6500K/10000K
Protection level IP66/IK09
Installation diameter Adjustable angle bracket installation
Lightning protection level 10KV or 20KV (according to needs)
Work temp / humidity -40ºC ~ 65ºC / 10% ~ 90%
Warranty / Life 5years / 50,000hrs
Model RB-FLL-250WSD RB-FLL-300WSD RB-FLL-400WSD RB-FLL-500WSD
Power 250W 300W 400W 500W
Input Volt 100-277V/277-480V/AC 50/60Hz
Led Type Chip 3030SMD
Led(pcs) 320/420pcs 384/504pcs 512/672pcs 640/840pcs
Power Factor >0.98
Power Efficiency >92%
Driver MEANWELL, INVENTRONICS, SOSEN (according to customer needs)
Ra Ra>80 / Ra>90
Lumen (Lm/W) 140-160lm/W
Control method Ordinary, 0/1-10V, PMW, DALI, DMX, Photocell sensor
Light body material Die-casting aluminum lamp body + pc cover + 304 stainless steel screws
Beam angle 15/25/40/60/90/120/138*75Deg
CCT 3000K/4000K/5000K/5700K/6500K/10000K
Protection level IP66/IK09
Installation diameter Adjustable angle bracket installation
Lightning protection level 10KV or 20KV (according to needs)
Work temp / humidity -40ºC ~ 65ºC / 10% ~ 90%
Warranty / Life 5years / 50,000hrs
Model RB-FLL-750WSDH RB-FLL-1000WSDH RB-FLL-1250WSDH RB-FLL-1500WSDH
Power 750W 1000W 1250W 1500W
Input Volt 90-305V/277-480V/AC 50/60Hz
Led Type 5050SMD Chip
Led(pcs) 288pcs 384pcs 480pcs 576pcs
Power Factor >0.98
Power Efficiency >95%
Driver MEANWELL, INVENTRONICS
Ra Ra>80 / Ra>90
Lumen (Lm/W) 160-170lm/W
Control method Ordinary, 0/1-10V, PMW, DALI, DMX, Photocell sensor
Light body material Die-casting aluminum lamp body + pc cover + 304 stainless steel screws
Beam angle 8/20/40/60/90/100*140Deg
CCT 3000K/4500K/5000K/5700K/6500K/10000K
Protection level IP66/IK10
Installation diameter Adjustable angle bracket installation/Adjustable module
Lightning protection level 20KV (according to needs)
Work temp / humidity -40ºC ~ 65ºC / 10% ~ 90%
Warranty / Life 5years / 70,000hrs
Primary Competitive Advantages:
  • Taiwan MeanWell or INVENTRONICS drivers, 3030/5050SMD single power LED chips.
  • Finned radiators, very good heat dissipation.

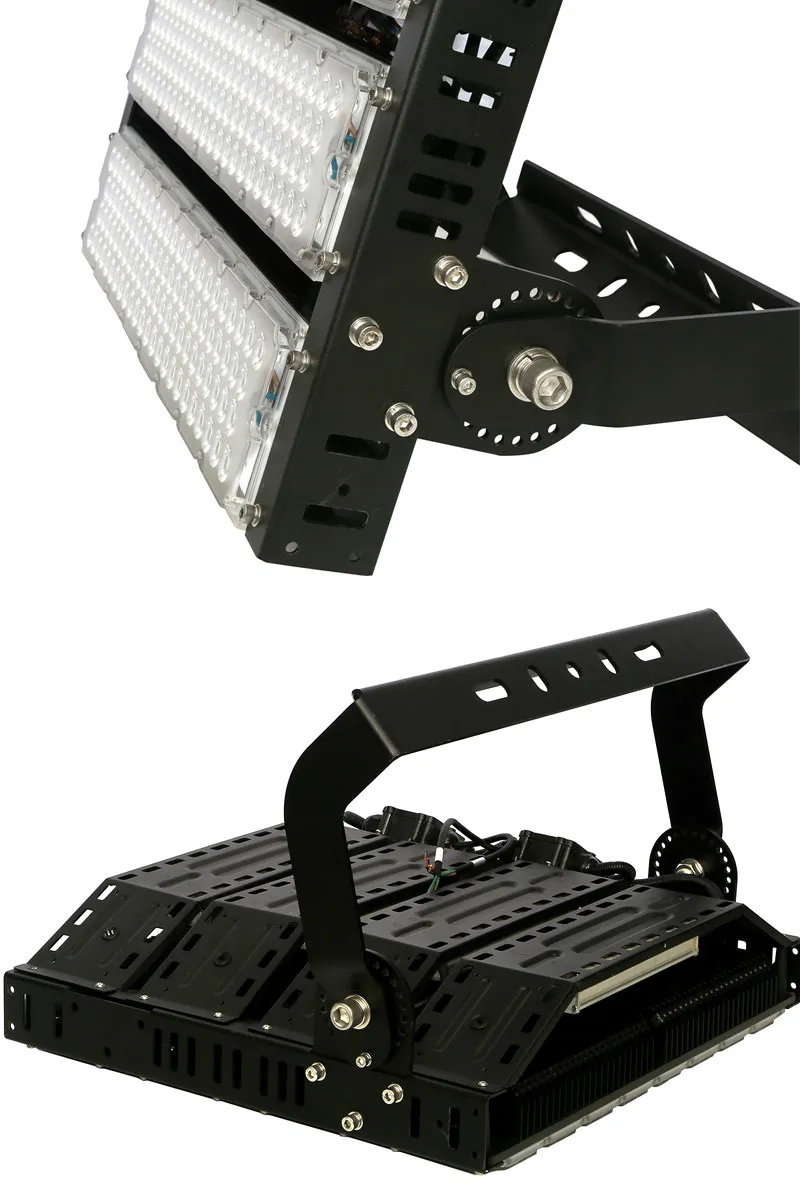

  • Flexible positions can be adjusted within 180°.
  • Waterproof IP66 design, elimination mist, avoid condensation, widely used for indoor and outdoor environment.
  • Reflector 20°/40°/60°/90°/120°/140*100° beam angles are available, meet the requirements of professional light distribution and can be used at different places.
  • 100W to 1500W can be chosen, 5 years warranty.

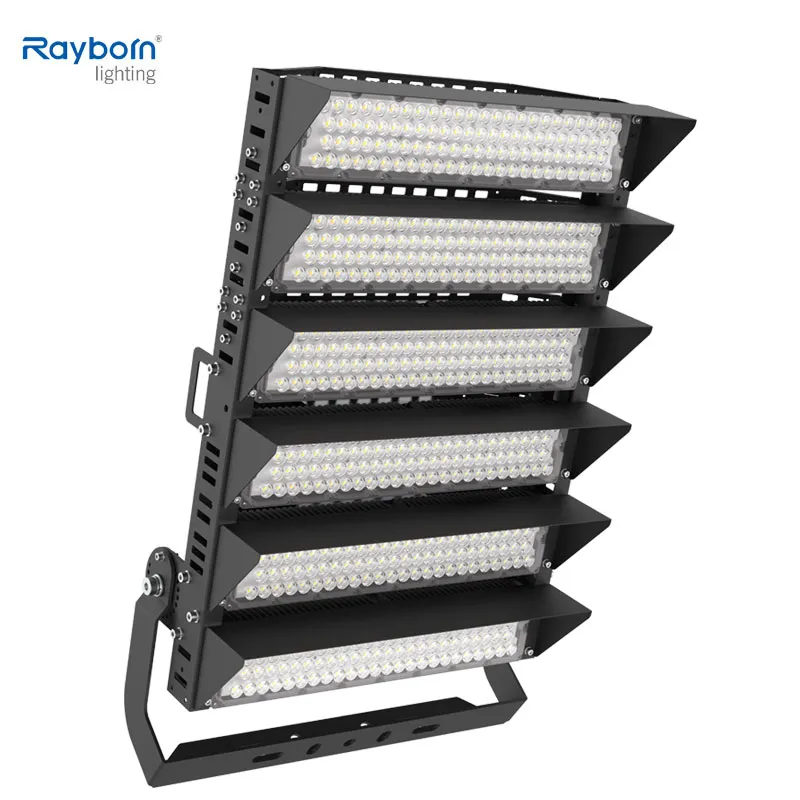

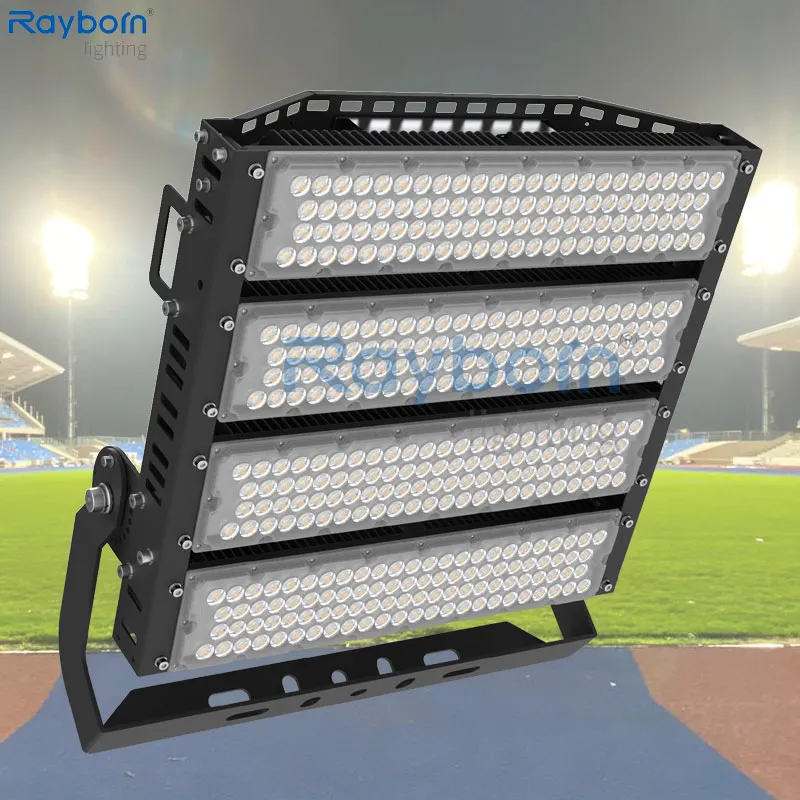

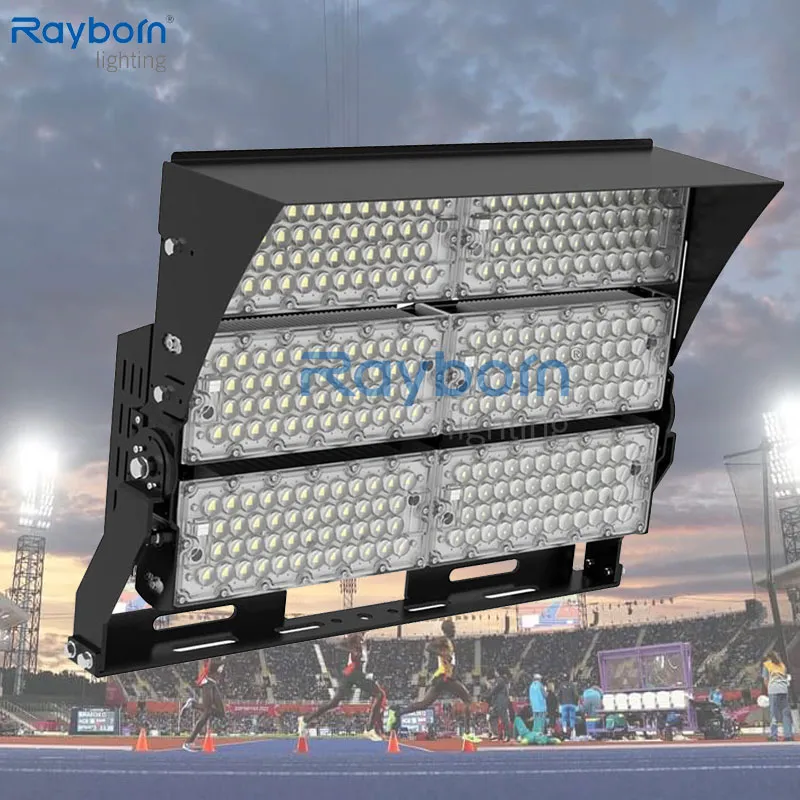

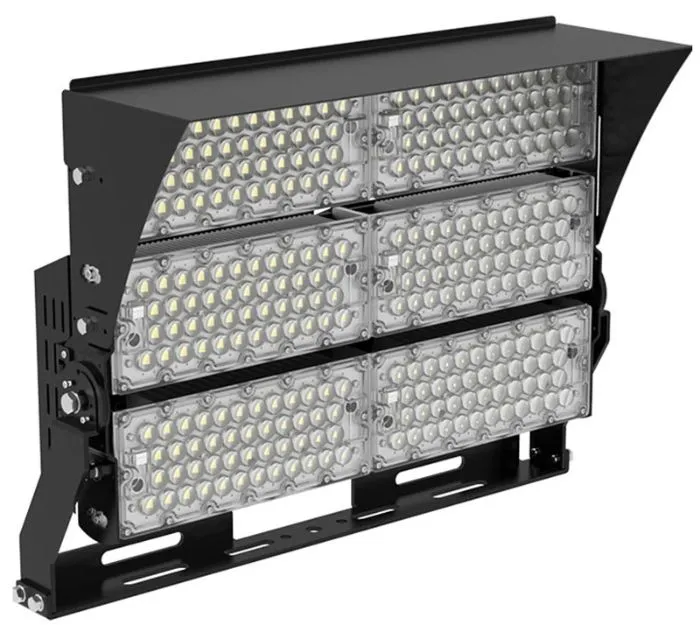

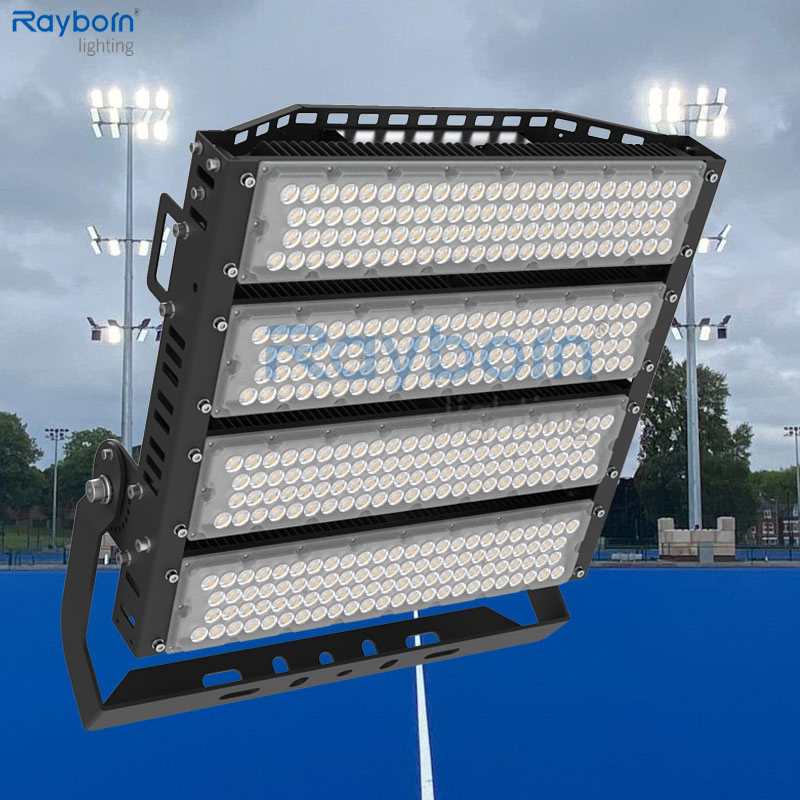

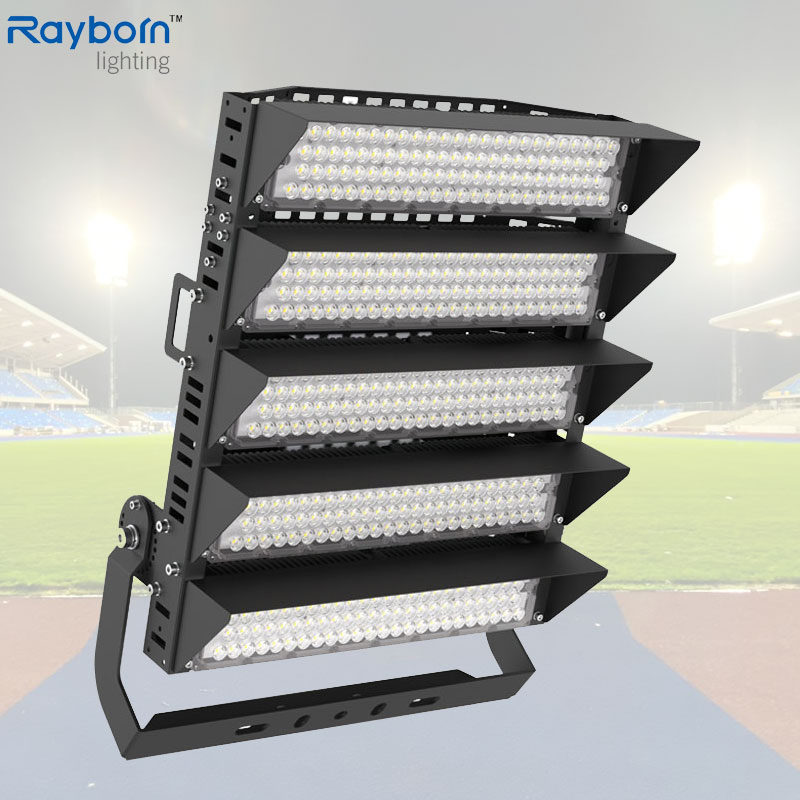

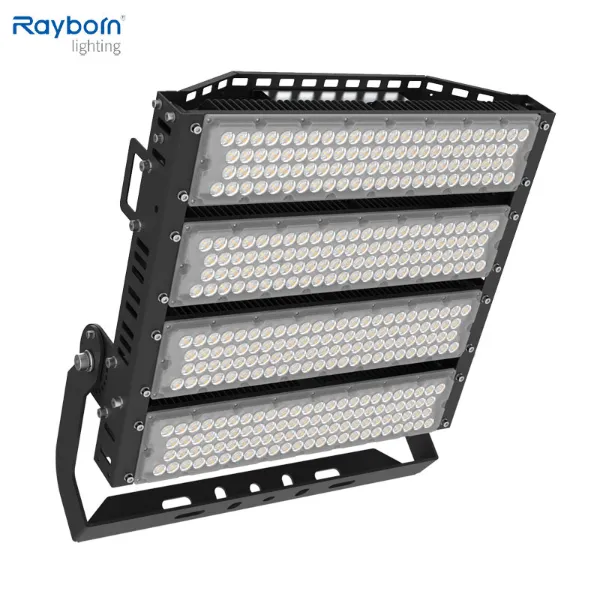

Detailed Photos
Product Description
Features of Outdoor LED Stadium Flood Light:
  • 200W 300W 400W 500W 600W, 750W, 800W, 1000W 1250W 1500W 2000 Watt power options with dual installation methods.
  • Total luminous flux up to 170lm/W.
  • High index CRI>90, TLCI>90, R9>20 (common CRI>80 optional).
  • High-purity aluminum integrated cold segment fin heat dissipation for fast heat conduction and excellent performance.
  • Professional light distribution; lenses are available in narrow, medium, and wide angles.
  • Professional anti-overflow hood to effectively control spillage and avoid light pollution.
  • Protection grade IP66, IK08, resistance to 17 winds, suitable for harsh outdoor environments.
  • Maximum surge voltage (T3) Vmax 20KV.
Product Production

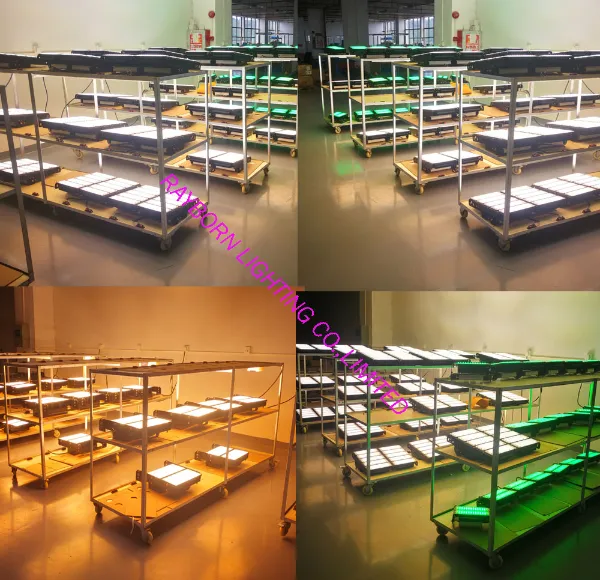

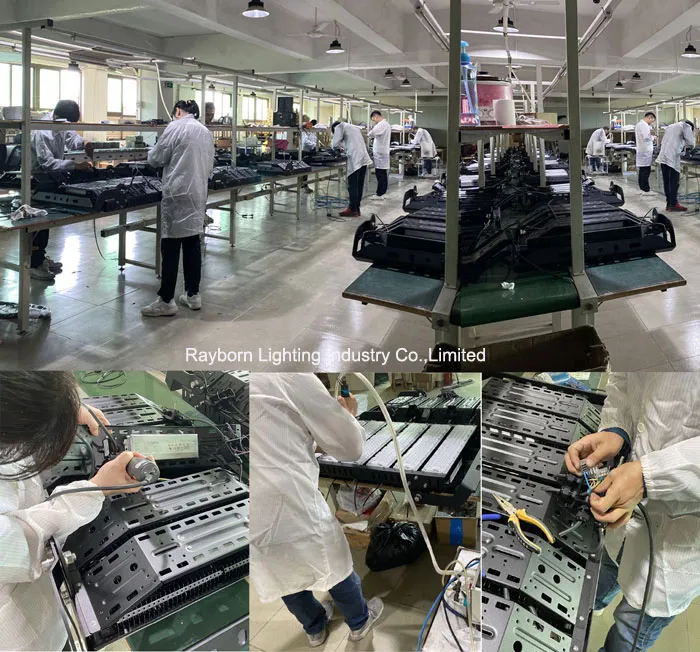

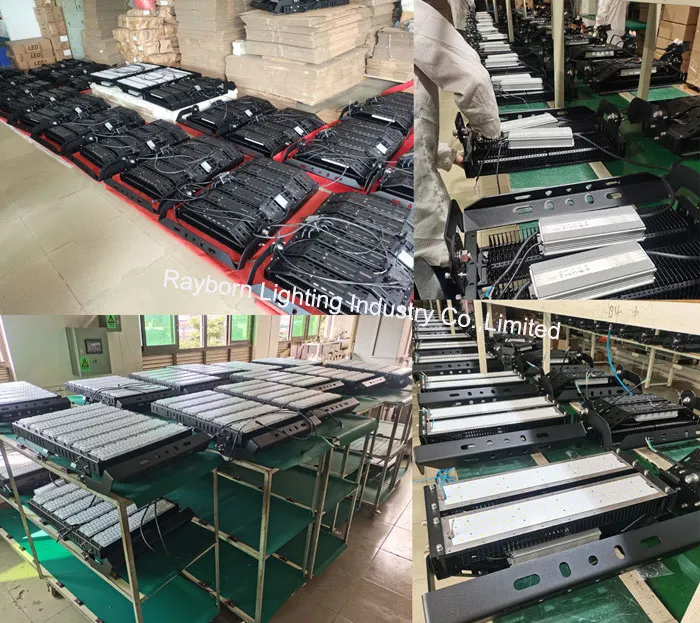

Industrial Waterproof IP66 Floodlight LED Sports Lighting Production Workshop:

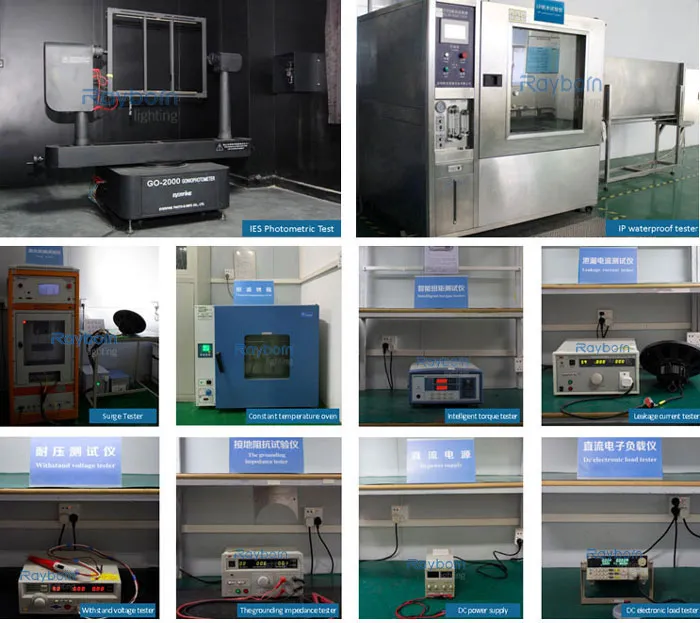

Before shipping, all our LED football lighting will be over 12 hours aging tested. The inspection department will test 100% of products including light-up test, power wattage test, high-voltage test, waterproof test, ground connection test, and so on. The defective rate is controlled to less than 0.1%. Quality is ensured, and you can be assured.

Packaging & Shipping
Packaging of Outdoor LED Sports Floodlight:

Our individual packages maximize protecting the lights from transfer damage in transit.
1. Label on the backside of each flood LED light and custom required labels are available.
2. One piece led flood light/reflector for soccer fields per carton.
3. This is our regular packing of the led flood lamps. If you need, we can also custom color packing and put your logo on it.

Shipping: By Sea, Train, or Air:

Soccer field lights in large quantities are advised to be shipped by sea. Samples are advised to be shipped by express or air.

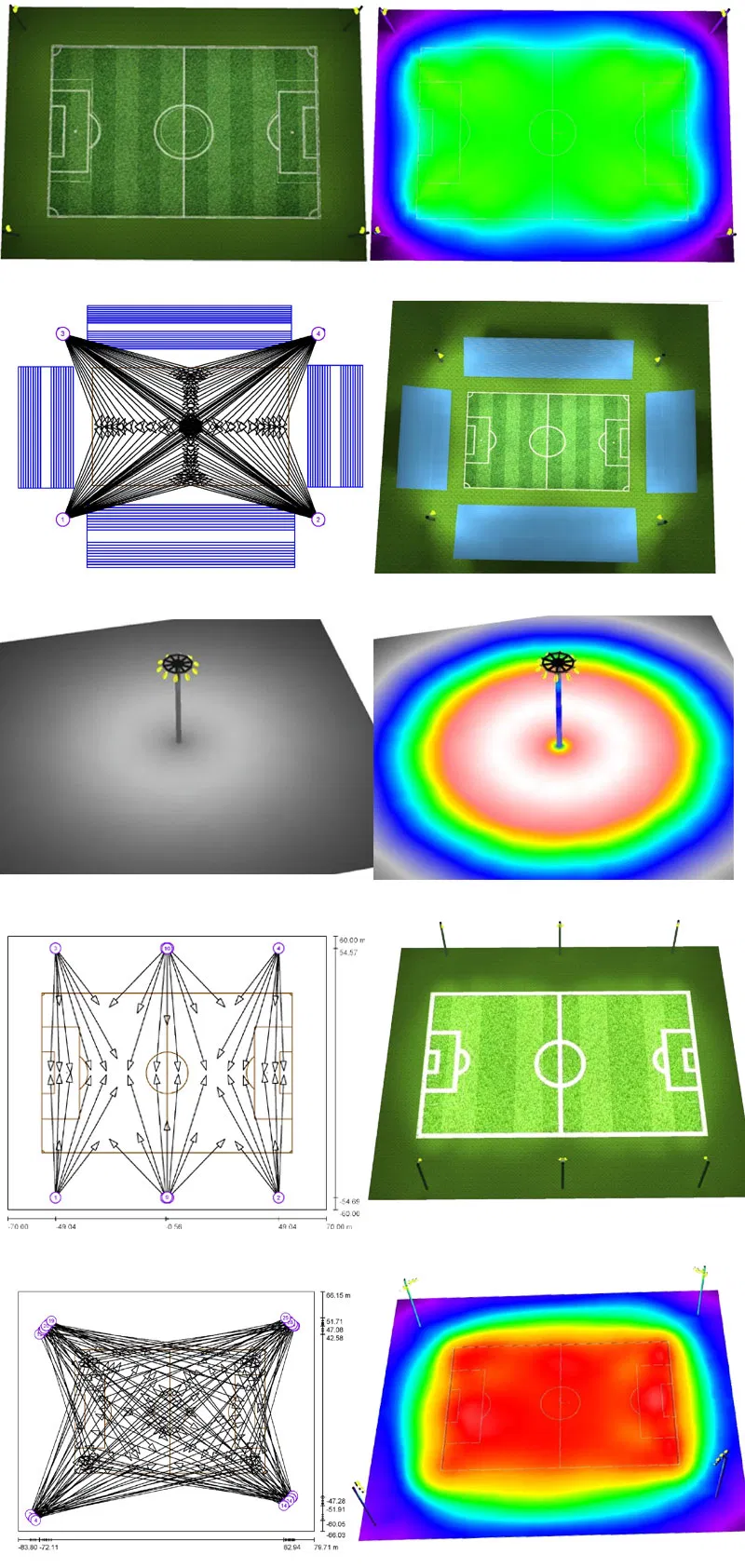

Design Simulation

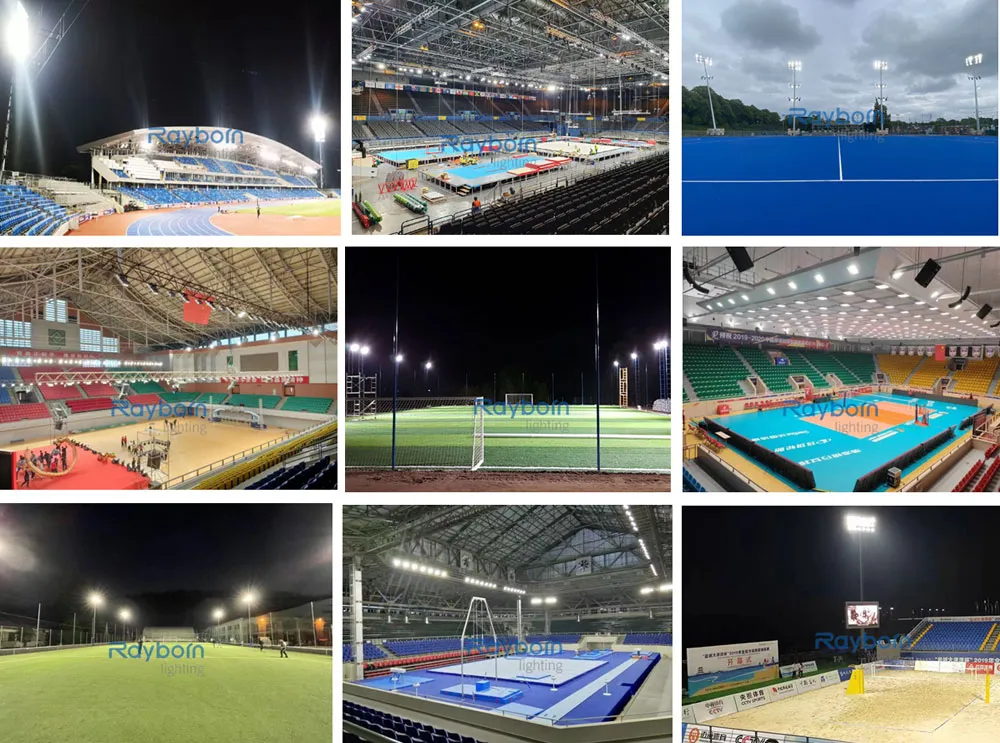

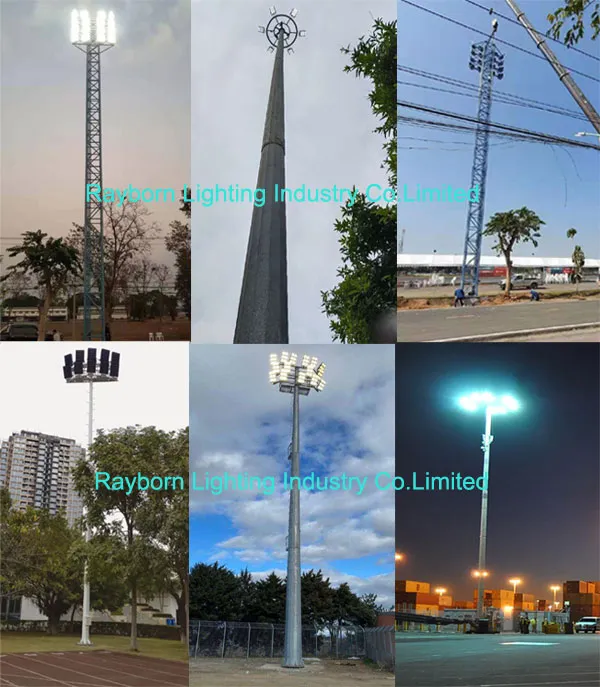

Applications
  • Advertising boards, playgrounds, and stadium lighting.
  • Parking lots and airport lighting.
  • Highway and Railway tunnel lighting.
  • Bridge and culvert lighting.
  • Square and building lighting.
  • Widely used in factories, gymnasiums, billboards, buildings, and general lighting projects, etc.
Frequently Asked Questions
QWhat is the warranty of your led flood lights?
We offer a 5-year guarantee for our LED flood lights, and we can adjust offerings based on your specific requirements.
QWhat color temperatures can we choose?
We offer LED flood lights in warm white (3000K-3500K), natural white (4000K-4500K), pure white (5000K-5700K), and cool white (6000K-6500K). Other customized ranges are also available.
QCan your led flood lamps be used in our country?
Yes, our LED flood lamps feature a wide input voltage capability of AC100-277V/277-480V and can be customized to suit your specific regional standards.
QDo you have any MOQ limit?
We do not enforce a strict MOQ. You are welcome to purchase even a single piece of our LED flood light.
QWhat is the lead time for orders?
For sample orders, the lead time is 3-7 days. For mass production, it takes approximately 7-15 days depending on the final order quantity.
QWhat payment methods do you accept?
We accept payment terms via Paypal, Western Union, T/T, and L/C.
